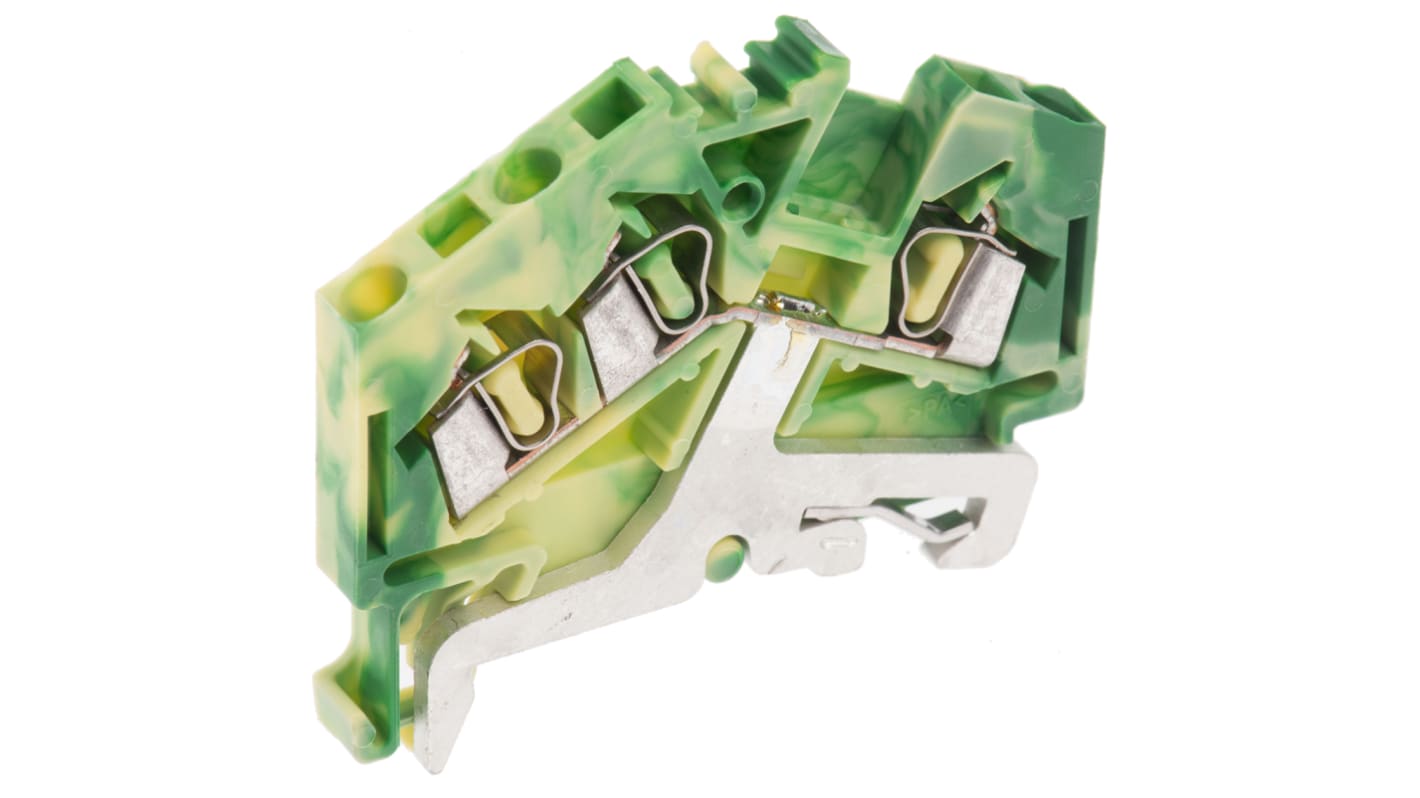

WAGO 280-637 280 Series Green/Yellow, 2.5mm², Single-Level, Cage Clamp Termination
- RS Stock No.:
- 178-4456
- Mfr. Part No.:
- 280-637
- Brand:
- WAGO
Subtotal (1 bag of 1 unit)*
£4.78
(exc. VAT)
£5.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 46 unit(s) ready to ship
- Plus 118 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag |
---|---|
1 + | £4.78 |
*price indicative
- RS Stock No.:
- 178-4456
- Mfr. Part No.:
- 280-637
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | WAGO | |
Colour | Green/Yellow | |
Number of Levels | Single | |
Voltage Rating | 600 V | |
American Wire Gauge | 14 → 12AWG | |
Series | 280 | |
Termination Method | Cage Clamp | |
Cable CSA | 2.5mm² | |
Fused | No | |
Select all | ||
---|---|---|
Brand WAGO | ||
Colour Green/Yellow | ||
Number of Levels Single | ||
Voltage Rating 600 V | ||
American Wire Gauge 14 → 12AWG | ||
Series 280 | ||
Termination Method Cage Clamp | ||
Cable CSA 2.5mm² | ||
Fused No | ||
- COO (Country of Origin):
- DE
Protection terminals
Feed-through terminal blocks with cage clamp® connection.
Features and Benefits
DIN Rail type TS 35
3 conductors (1 input, 2 outputs)
Quick connection using cage-type springs, not affected by impact and vibration
For rigid, semi-rigid and flexible conductors
Two permissible wire cross-sections, 2.5 mm2 or 4 mm2
Front wiring
3 conductors (1 input, 2 outputs)
Quick connection using cage-type springs, not affected by impact and vibration
For rigid, semi-rigid and flexible conductors
Two permissible wire cross-sections, 2.5 mm2 or 4 mm2
Front wiring
870 Series
Compact screwless DIN rail mount terminals suitable for use with TS35 Top Hat rails. The compact size of the terminal is possible due to the new cage clamp designed to satisfy the need to reduce cabinet space on site.
Accept cables 0,08 - 2,5 mm²/4 mm² flexible wire
Front cabling enables further space saving
Rated at: 500V/6kV/24A
Jumper bar rated current: 18A
Suitable marker cards and labels also available (each pack contains 5 cards, with 100 markers per card)
Front cabling enables further space saving
Rated at: 500V/6kV/24A
Jumper bar rated current: 18A
Suitable marker cards and labels also available (each pack contains 5 cards, with 100 markers per card)
