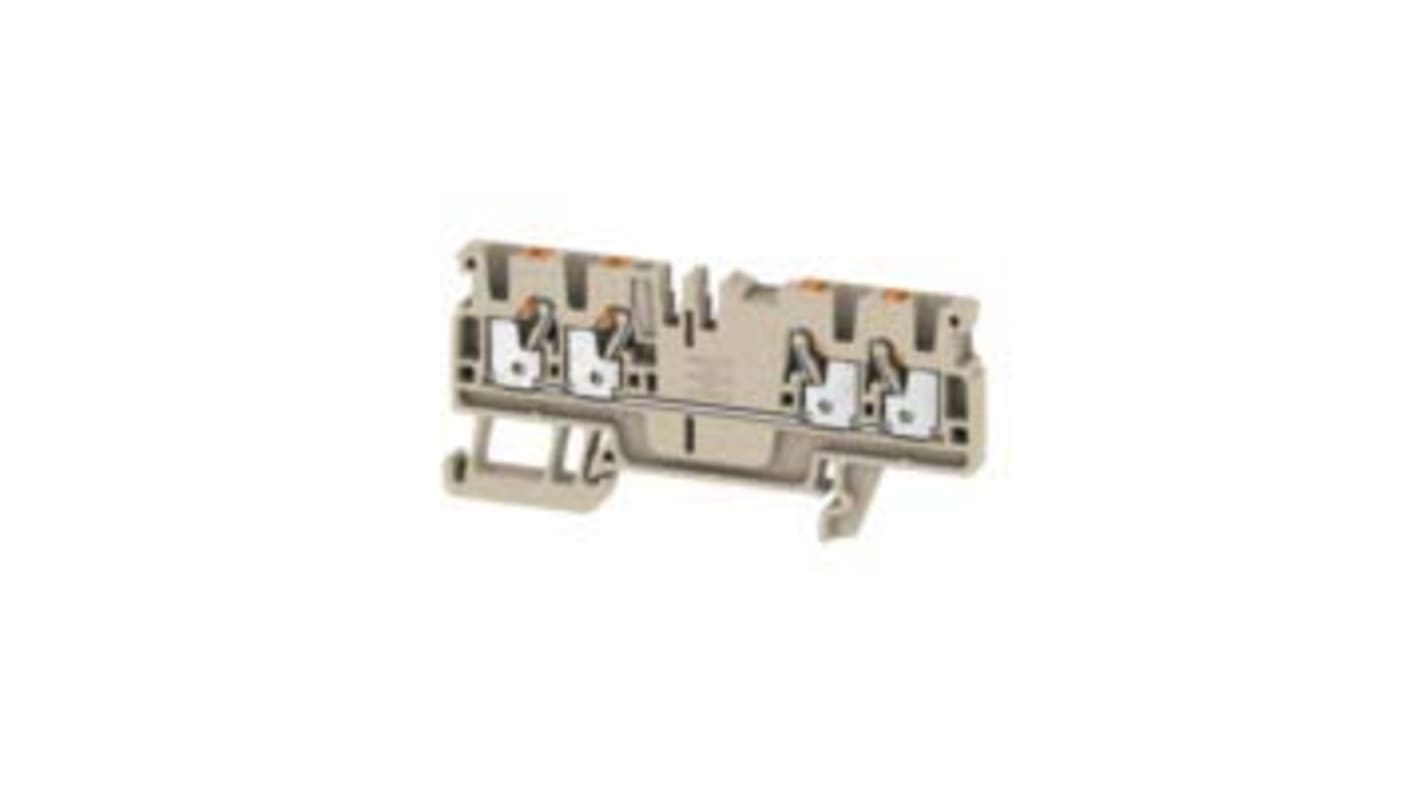

Weidmuller 1521690000 A Series Beige, 2.5mm², Single-Level, Push In Termination
- RS Stock No.:
- 144-8726
- Mfr. Part No.:
- 1521690000
- Brand:
- Weidmüller
Subtotal (1 box of 100 units)*
£99.28
(exc. VAT)
£119.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 16 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £99.28 | £0.993 |
*price indicative
- RS Stock No.:
- 144-8726
- Mfr. Part No.:
- 1521690000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Colour | Beige | |
| Number of Levels | Single | |
| Series | A | |
| Voltage Rating | 800 V | |
| American Wire Gauge | 28 → 12AWG | |
| Termination Method | Push In | |
| Cable CSA | 2.5mm² | |
| Current Rating | 24A | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +130°C | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Colour Beige | ||
Number of Levels Single | ||
Series A | ||
Voltage Rating 800 V | ||
American Wire Gauge 28 → 12AWG | ||
Termination Method Push In | ||
Cable CSA 2.5mm² | ||
Current Rating 24A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +130°C | ||
- COO (Country of Origin):
- DE
Weidmuller Series A DIN Rail Terminal Block, Push In Termination Method, 800 V Voltage Rating - 1521690000
This DIN rail terminal block from Weidmuller is a versatile and reliable solution for electrical connections. With a high voltage rating of 800V and a current rating of 24A, this terminal block is suitable for a wide range of applications. The push-in technology allows for easy and quick wire insertion, making installation a breeze. The beige colour and compact design make it a practical choice for any project.
Features & Benefits
• Push-in technology for quick and easy wire insertion
• High current rating of 24A for reliable performance
• Wide operating temperature range from -60°C to +130°C
• Single level design for easy configuration
• Compact size with dimensions of 5.1mm x 77.5mm x 36.5mm
• Versatile terminal block suitable for 28 to 12 AWG wires
• Durable construction with V-0 flammability rating
• High current rating of 24A for reliable performance
• Wide operating temperature range from -60°C to +130°C
• Single level design for easy configuration
• Compact size with dimensions of 5.1mm x 77.5mm x 36.5mm
• Versatile terminal block suitable for 28 to 12 AWG wires
• Durable construction with V-0 flammability rating
Applications
• Ideal for electrical panels
• Suitable for control cabinets
• Essential for building automation systems
• Reliable for electrical distribution systems
• Suitable for control cabinets
• Essential for building automation systems
• Reliable for electrical distribution systems
Can it handle high temperatures?
Yes, this terminal block has a wide operating temperature range from -60°C to +130°C.
Is it easy to install?
Yes, the push-in technology allows for quick and easy wire insertion, saving you time and effort.
What wire sizes are compatible with this terminal block?
This terminal block is suitable for wires ranging from 28 to 12 AWG, providing flexibility for various applications.
