Subtotal (1 box of 50 units)*
£277.66
(exc. VAT)
£333.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £277.66 | £5.553 |
*price indicative
- RS Stock No.:
- 136-3248
- Mfr. Part No.:
- 3211913
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Voltage Rating | 500 V | |
| American Wire Gauge | 24 → 10AWG | |
| Cable CSA | 0.2 → 4 mm², 0.2 → 6 mm², 0.25 → 4 mm², 0.25 → 4mm² | |
| Fused | No | |
| Current Rating | 32A | |
| Model Number | PTTB 4-MT | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Voltage Rating 500 V | ||
American Wire Gauge 24 → 10AWG | ||
Cable CSA 0.2 → 4 mm², 0.2 → 6 mm², 0.25 → 4 mm², 0.25 → 4mm² | ||
Fused No | ||
Current Rating 32A | ||
Model Number PTTB 4-MT | ||
- COO (Country of Origin):
- PL
PTTB Double Level Terminal Blocks
Compact design for maximum space saving
Integrated labelling areas on every terminal point
Optional, large labelling option using STP ... double marker carriers
Link the levels to the FBS ...-PV bridges
Integrated labelling areas on every terminal point
Optional, large labelling option using STP ... double marker carriers
Link the levels to the FBS ...-PV bridges

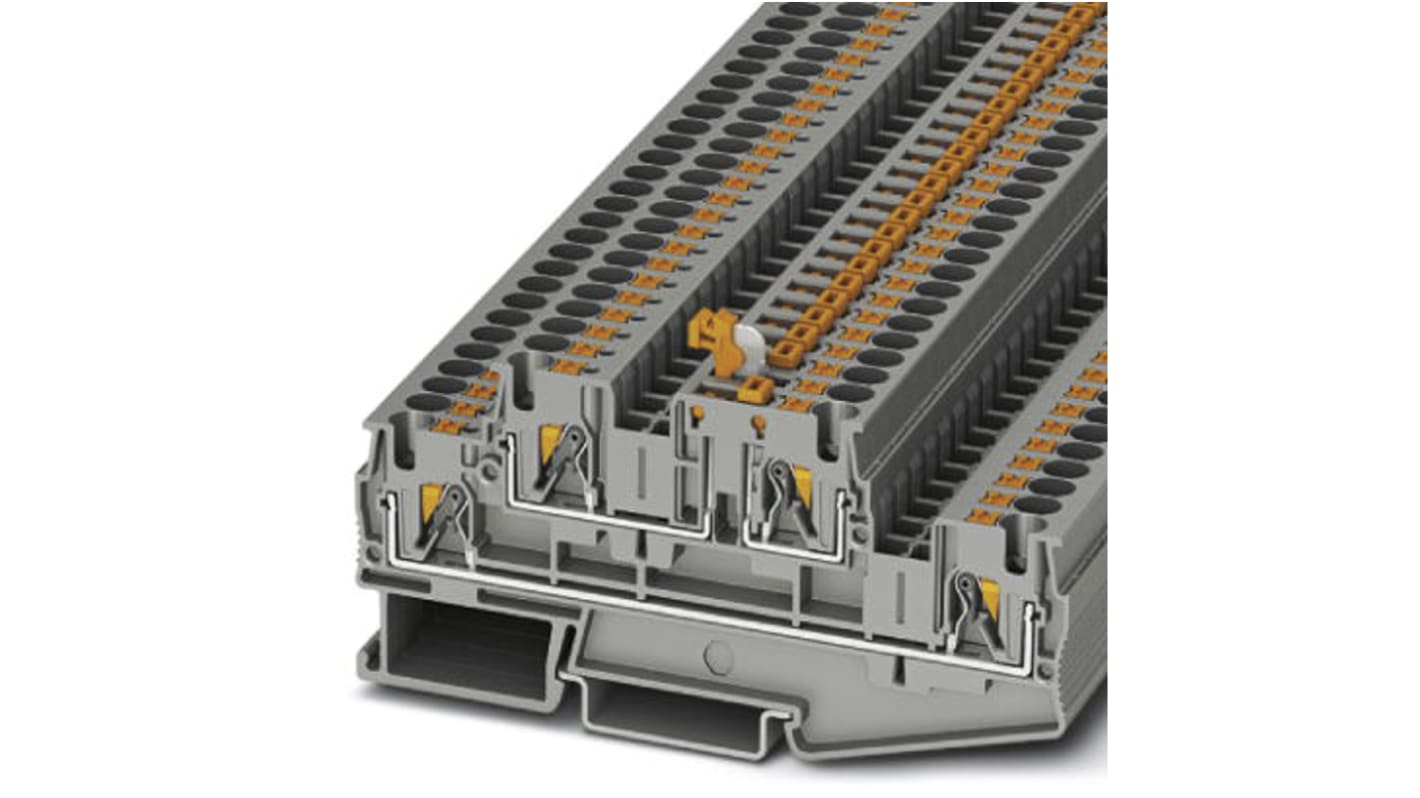

Phoenix Contact PTTB 4-MT Series DIN Rail Terminal Block, 32A - 3211913
This DIN rail terminal block is designed for efficient electrical connections in automation and electrical applications. Built for durability, it meets CSA standards, making it ideal for professionals in the electronics and electrical sectors.
Features & Benefits
• Rated for 28A current, providing reliable performance
• Handles voltages up to 500V for enhanced safety
• Push-in termination simplifies wiring
• Compatible with 24AWG to 10AWG cables for versatility
• Grey finish ensures compatibility with various systems
• Handles voltages up to 500V for enhanced safety
• Push-in termination simplifies wiring
• Compatible with 24AWG to 10AWG cables for versatility
• Grey finish ensures compatibility with various systems
Applications
• Used in wiring control panels
• Ideal for power distribution in electrical cabinets
• Employed in machinery requiring secure connections
• Ideal for power distribution in electrical cabinets
• Employed in machinery requiring secure connections
What is the maximum temperature this can withstand?
It can safely operate at up to 110°C.
Can it be installed without special tools?
Yes, the push-in design allows for easy installation without specialised tools.
Is it suitable for outdoor use?
Ensure it is housed in a suitable enclosure if used outdoors to protect against environmental factors.
PTTB / PTTBS Double Level Terminal Blocks
