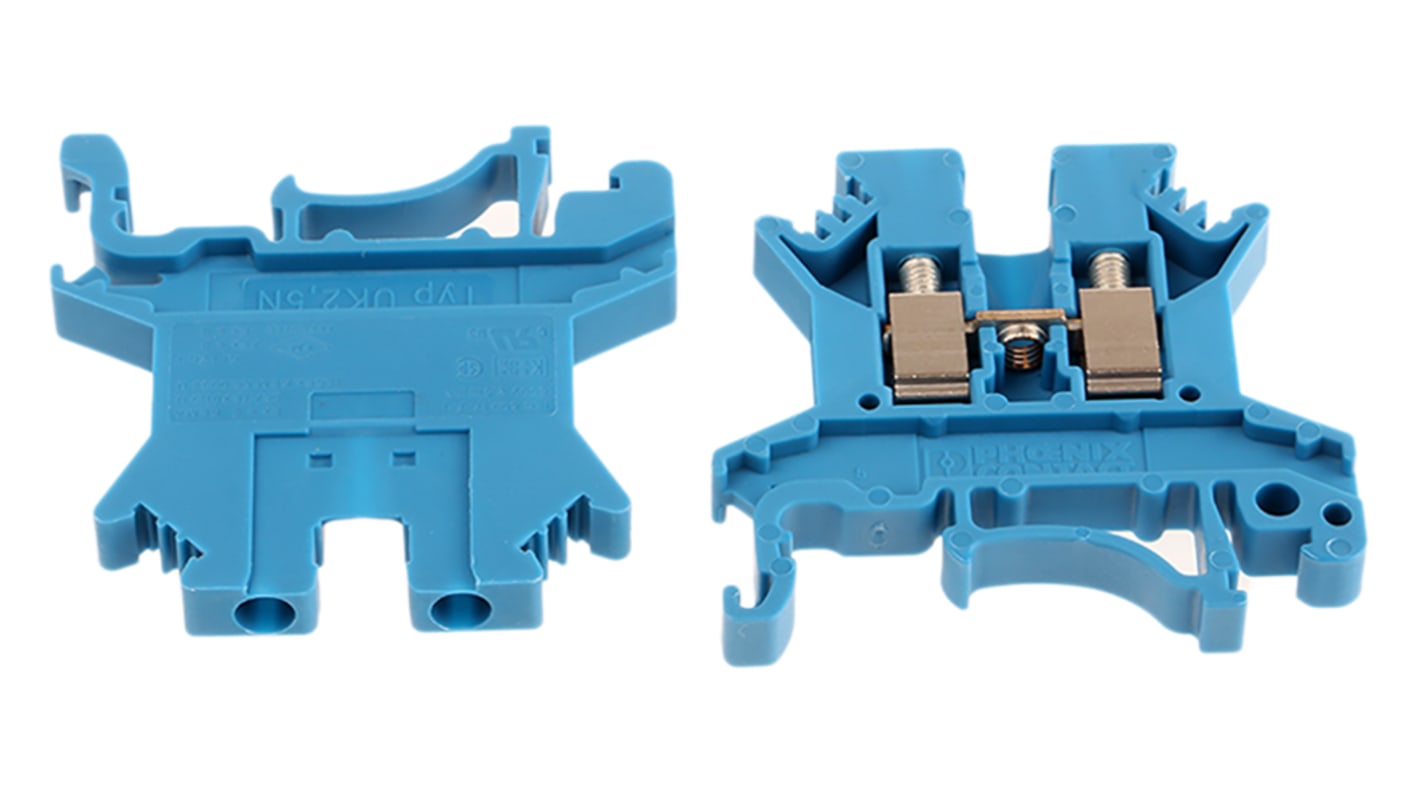

Phoenix Contact UK Series Blue Feed Through Terminal Block, 0.2 → 2.5mm², Single-Level, Screw Down Termination,
- RS Stock No.:
- 101-2773
- Mfr. Part No.:
- 3003350
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£0.291
(exc. VAT)
£0.349
(inc. VAT)
- RS Stock No.:
- 101-2773
- Mfr. Part No.:
- 3003350
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Blue | |
| Number of Levels | Single | |
| Series | UK | |
| Termination Method | Screw Down | |
| Cable CSA | 0.2 → 2.5mm² | |
| Current Rating | 24A | |
| Voltage Rating | 800 V | |
| Hazardous Area Certification | ATEX | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Blue | ||
Number of Levels Single | ||
Series UK | ||
Termination Method Screw Down | ||
Cable CSA 0.2 → 2.5mm² | ||
Current Rating 24A | ||
Voltage Rating 800 V | ||
Hazardous Area Certification ATEX | ||
Non Compliant
- COO (Country of Origin):
- DE
Universal Terminals
Universal terminals moulded in polyamide to fit both 'G' and 'Top Hat' rail.
Screw conductor securing with closed screwdriver shafts. Available conductor acceptance sizes, 2.5mm² to 35mm². The range comprises of grey (phase), blue (neutral), and yellow/green (earth) terminals. A 10-way insertion (jumper) bridge is also available, as is a 35mm rail end bracket.
Screw conductor securing with closed screwdriver shafts. Available conductor acceptance sizes, 2.5mm² to 35mm². The range comprises of grey (phase), blue (neutral), and yellow/green (earth) terminals. A 10-way insertion (jumper) bridge is also available, as is a 35mm rail end bracket.
Individual terminals and complementary accessories
Approval Category II 2 GD EEx e II Cert. No. KEMA 98ATEX1651U
The Phoenix Contact's feed-through terminal block has nominal voltage of 800 V and nominal current of 24 A.
Number of rows 1
Number of connections 2
Potentials 1
Nominal cross section 2.5 mm²
Colour blue
Insulating material PA
Number of connections 2
Potentials 1
Nominal cross section 2.5 mm²
Colour blue
Insulating material PA
