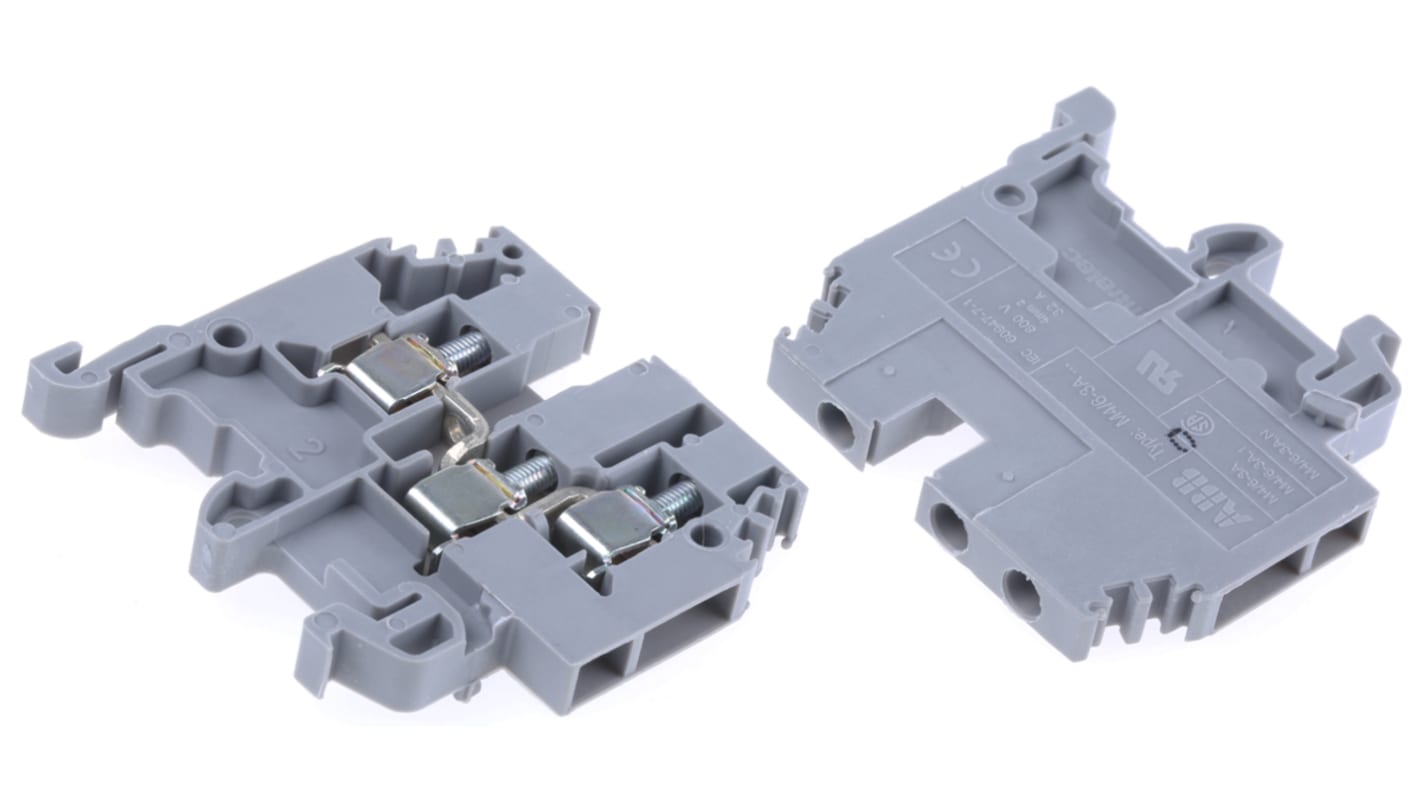

Entrelec 1SNA115468R2000 SNA Series DIN Rail Terminal Block Grey, 4mm², 1-Level, Screw
- RS Stock No.:
- 426-193
- Mfr. Part No.:
- 1SNA115468R2000
- Brand:
- Entrelec
Subtotal (1 pack of 10 units)*
£22.90
(exc. VAT)
£27.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 210 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £2.29 | £22.90 |
*price indicative
- RS Stock No.:
- 426-193
- Mfr. Part No.:
- 1SNA115468R2000
- Brand:
- Entrelec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Entrelec | |
| Colour | Grey | |
| Product Type | DIN Rail Terminal Block | |
| Number of Levels | 1 | |
| Series | SNA | |
| Voltage | 800V ac | |
| Cable CSA | 4mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Pitch | 6mm | |
| Termination Type | Screw | |
| Minimum Operating Temperature | -5°C | |
| Terminal Block Current | 32A | |
| Maximum Operating Temperature | 40°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Entrelec | ||
Colour Grey | ||
Product Type DIN Rail Terminal Block | ||
Number of Levels 1 | ||
Series SNA | ||
Voltage 800V ac | ||
Cable CSA 4mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 10AWG | ||
Pitch 6mm | ||
Termination Type Screw | ||
Minimum Operating Temperature -5°C | ||
Terminal Block Current 32A | ||
Maximum Operating Temperature 40°C | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
2 in, 1 out
Further circuits may be commoned using ’pre-assembled’ or ’alternative’ jumper bars.
5000 Universal Series
This universal range of terminals mounts on both asymmetric rail 'G' profile and Top hat profile. Moulded in tough flame-resistant polyamide 6.6, with a working temperature of -55°C to +130°C. The captive terminal screws have hardened heads to prevent burring. Cable entry and clamp design allows easy installation, higher voltage and cable carrying capacity. Cable markers are available RS 460-569
Note
Stock numbers 472-9569 and 472-9575 are compatible with deep top hat rails only
