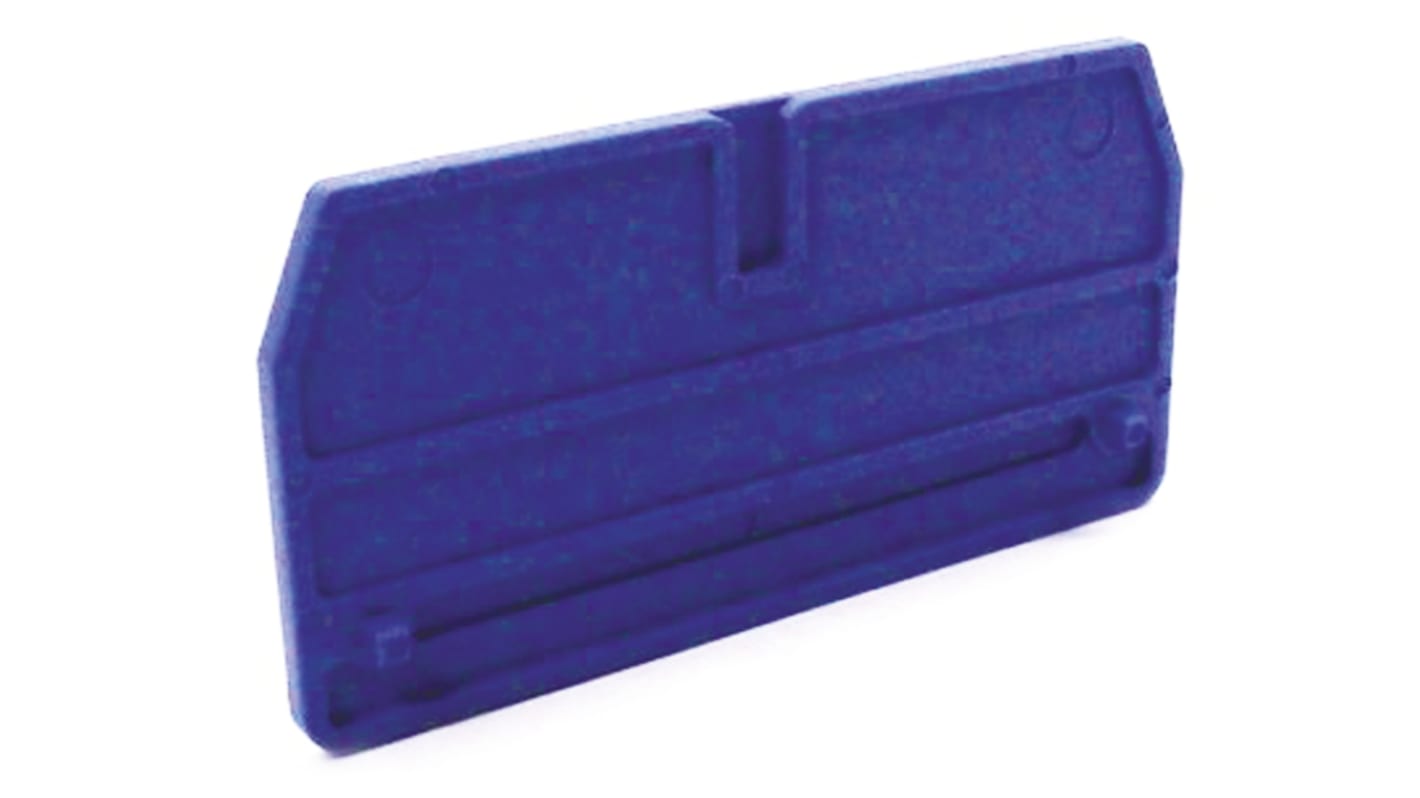

Weidmüller Z Series End Cover for Use with Terminal ZDU 2.5/2 x 2AN, Terminal ZDU 2.5/2 x 2AN BL, Terminal ZDU 2.5/2 x
- RS Stock No.:
- 824-0170
- Mfr. Part No.:
- 1608810000
- Brand:
- Weidmüller
120 In stock - FREE next working day delivery available
40 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.429
(exc. VAT)
£0.515
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 + | £0.429 | £4.29 |
| *price indicative | ||
- RS Stock No.:
- 824-0170
- Mfr. Part No.:
- 1608810000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- RO
Product Details
ZAP end plates
Cover for the last terminal in a block
For separations within one terminal block with terminals of different sizes
Touch-protected live parts
Visual separation of current circuits
End plates can also be used to ensure compliance with air gaps and creep distances
The outer dimensions of end plates correspond to the casing dimensions of the terminal block
Latching pins on the end plate make it easy to click them into place on the terminal rail
For separations within one terminal block with terminals of different sizes
Touch-protected live parts
Visual separation of current circuits
End plates can also be used to ensure compliance with air gaps and creep distances
The outer dimensions of end plates correspond to the casing dimensions of the terminal block
Latching pins on the end plate make it easy to click them into place on the terminal rail
Specifications
Attribute | Value |
|---|---|
| Accessory Type | End Cover |
| Series | Z |
| For Use With | Terminal ZDU 2.5/2 x 2AN, Terminal ZDU 2.5/2 x 2AN BL, Terminal ZDU 2.5/2 x 2AN/D-, Terminal ZDU 2.5/2 x 2AN/D+, Terminal ZDU 2.5/2 x 2AN/LD-, Terminal ZDU 2.5/2 x 2AN/LD+, Terminal ZDU 2.5/4AN, Terminal ZDU 2.5/4AN BL, Terminal ZPE 2.5/4AN, Terminal ZSI 2.5, Terminal ZSI 2.5/5 x 25, Terminal ZSI 2.5/LD 120AC, Terminal ZSI 2.5/LD 250AC, Terminal ZSI 2.5/LD 28AC, Terminal ZSI 2.5/LD 60AC, Terminal ZTR 2.5/3AN, Terminal ZTR 2.5/3AN BL, Terminal ZTR 2.5/3AN/O.TNHE, Terminal ZTR 2.5/4AN, Terminal ZTR 2.5/4AN BL, Terminal ZTR 2.5/4AN/O TNHE |
