Phoenix Contact EB2- 6 Series Jumper Bar for Use with Modular Terminal Block
- RS Stock No.:
- 803-8050
- Mfr. Part No.:
- 0201155
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£1.14
(exc. VAT)
£1.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 69 unit(s) ready to ship
- Plus 399 unit(s) ready to ship from another location
- Plus 400 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1.14 |
*price indicative
- RS Stock No.:
- 803-8050
- Mfr. Part No.:
- 0201155
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Accessory Type | Jumper Bar | |
Series | EB2- 6 | |
For Use With | Modular Terminal Block | |
Mounting Type | Screw | |
Colour | Grey | |
Material | Copper Alloy | |
Pitch | 6.2mm | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Accessory Type Jumper Bar | ||
Series EB2- 6 | ||
For Use With Modular Terminal Block | ||
Mounting Type Screw | ||
Colour Grey | ||
Material Copper Alloy | ||
Pitch 6.2mm | ||

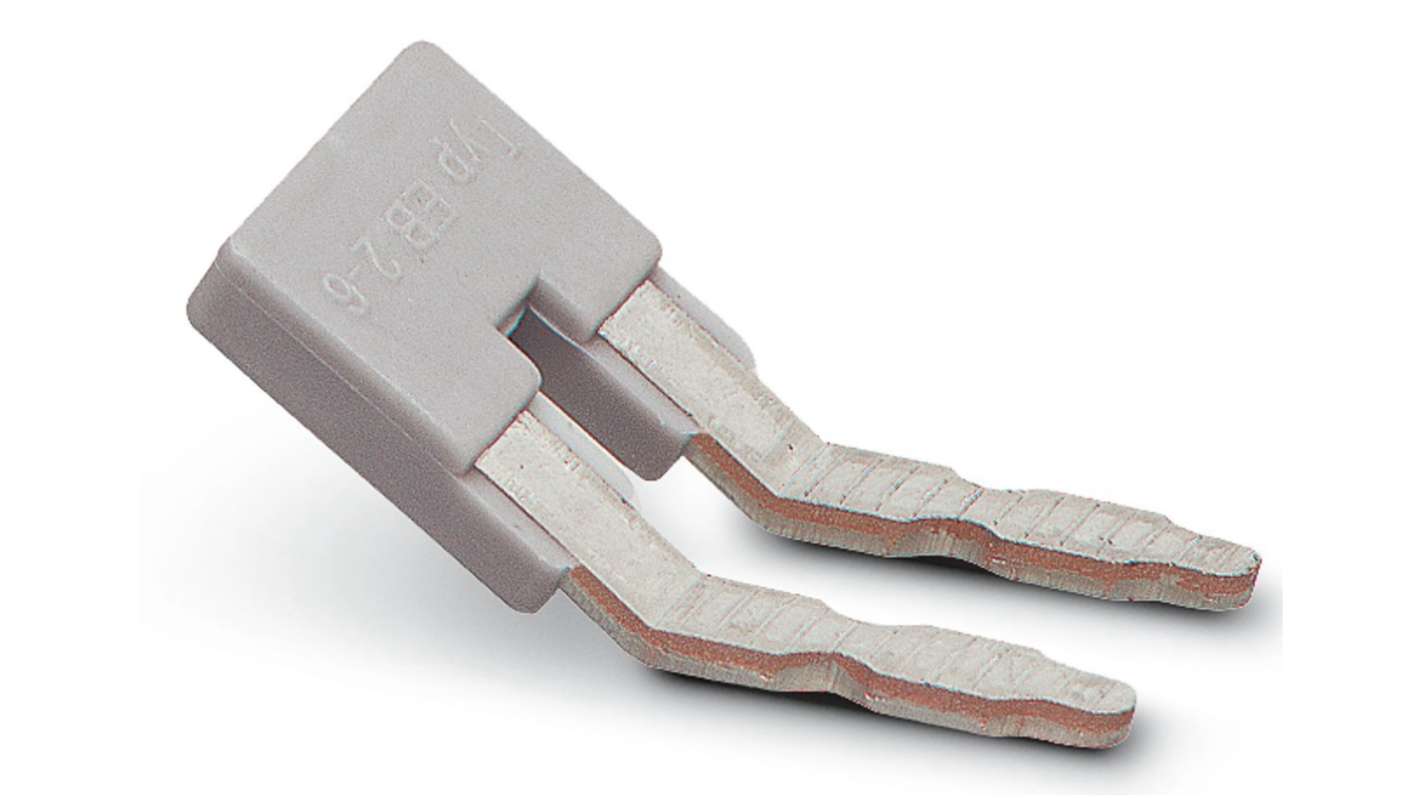

Phoenix Contact Bridge Bar Isolator, 6.2mm Pitch, 2 Positions - EB2- 6 - 0201155
Are you all fingers and thumbs when you're wiring between mini terminal blocks? This bridge bar from Phoenix Contact makes light work of fiddly terminal block connections. It's a U-shaped accessory that enables you to connect two adjacent terminal blocks with a 6.2mm pitch, without the need for wires. It's a handy accessory to keep in your kit if you use MBK 5 feed-through terminal blocks.
The bridge's maximum current carrying capacity of 32A means it's suitable for electrical distribution in high-power circuits. The contacts are made from copper and zinc, to combine conductivity with durability and deliver a long-lasting connection. Thanks to the insulating and thermally stable PA cover, the bridge is safe to handle without the risk of shocks. Use this modular-style accessory to help you swiftly build custom machines and control panels in manufacturing, materials handling and heavy plant settings.
The bridge's maximum current carrying capacity of 32A means it's suitable for electrical distribution in high-power circuits. The contacts are made from copper and zinc, to combine conductivity with durability and deliver a long-lasting connection. Thanks to the insulating and thermally stable PA cover, the bridge is safe to handle without the risk of shocks. Use this modular-style accessory to help you swiftly build custom machines and control panels in manufacturing, materials handling and heavy plant settings.
Features & Benefits
• Flame retardant construction means vertical burning stops inside 60 seconds
• Works in temperatures between -60°C and +105°C, to handle demanding industrial environments
• Light weight of 1.122g won't add strain to rail-mounted modules
• Works in temperatures between -60°C and +105°C, to handle demanding industrial environments
• Light weight of 1.122g won't add strain to rail-mounted modules
EB/EBS Series
