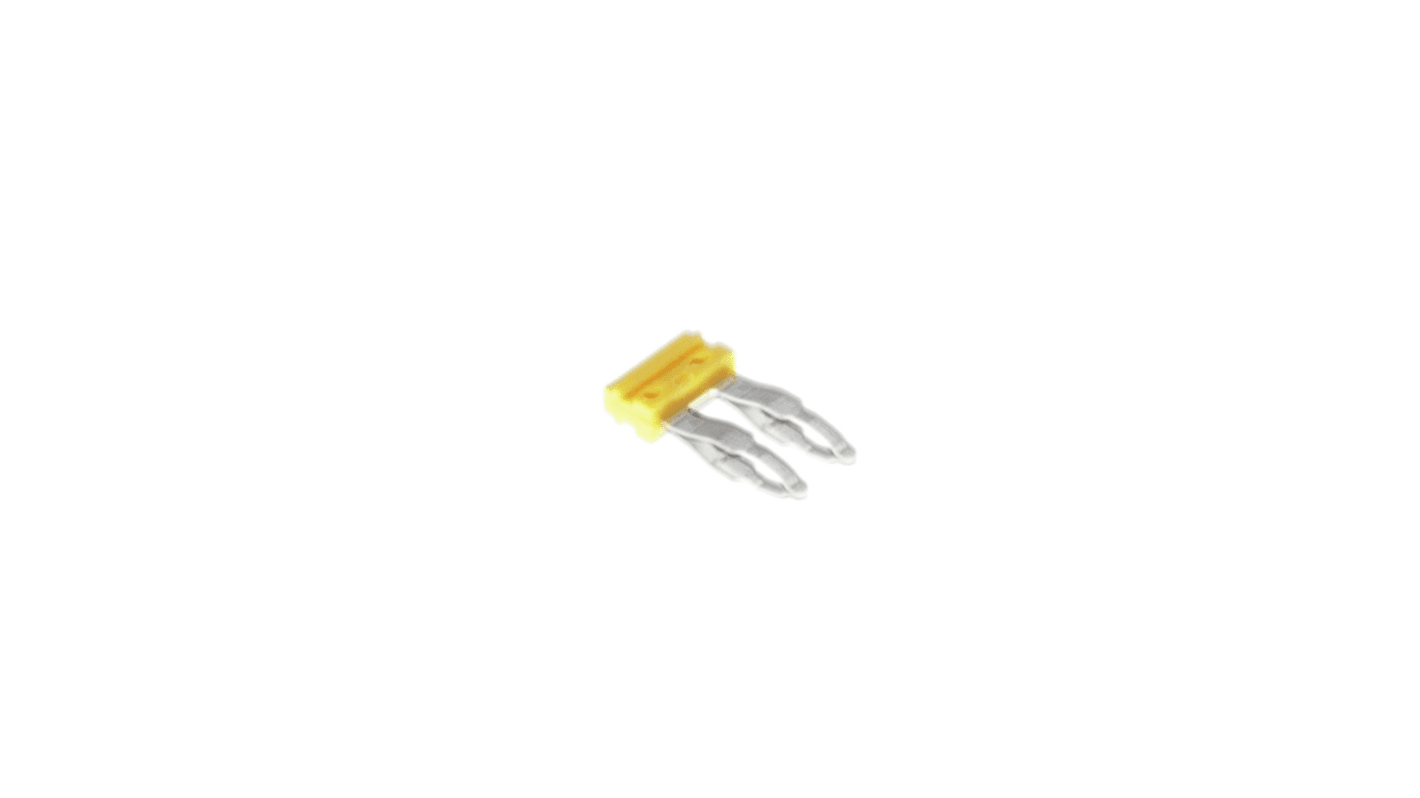

Weidmüller W Series Series Cross Connector for Use with Terminal Block, 17.5A

View this category

Subtotal (1 pack of 50 units)*

£18.25

(exc. VAT)

£21.90

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 100 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 +£0.365£18.25

*price indicative

RS Stock No.:
285-5162
Mfr. Part No.:
1754210000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Accessory Type

Cross Connector

Series

W Series

For Use With

Terminal Block

Current Rating

17.5A

Mounting Type

Direct Mounting

RoHS Status: Exempt

COO (Country of Origin):
CZ

Micro Terminals


Single or double deck feed through versions, for applications where space is at a premium.
Pitch is 3.5mm, with heights of 25mm (standard), and 38mm (double deck).

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
The Weidmuller screwable cross connectors are easy to mount and de mount. Due to the big contact surface, even high currents can be transmitted with maximum contact reliability.

Wemid material
UL 94 flammability rating V-0


The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
