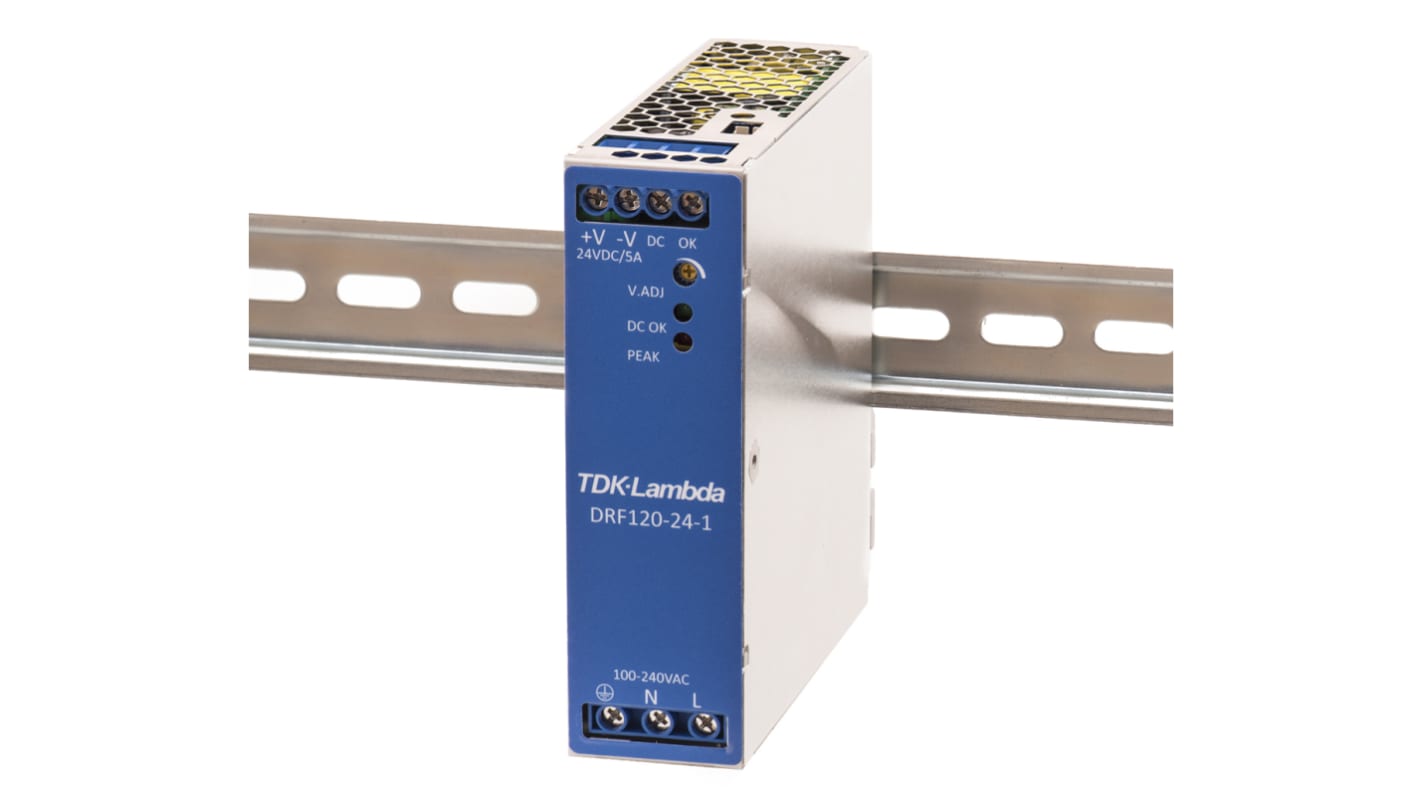

TDK-Lambda DRF Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 5A Output, 120W

RS Stock No.:: 905-9812
Mfr. Part No.:: DRF-120-24-1/HL
Brand:: TDK-Lambda

TDK-Lambda DRF Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 5A Output, 120W

3 In stock - FREE next working day delivery available

Price Each

£191.28

(exc. VAT)

£229.54

(inc. VAT)

Units	Per unit
1 +	£191.28

RS Stock No.:: 905-9812
Mfr. Part No.:: DRF-120-24-1/HL
Brand:: TDK-Lambda

Technical Reference

DRF Series Data Sheet

Legislation and Compliance

COO (Country of Origin):: MY

Product Details

DRF/HL Atex Series

The DRF/HL series features IECEx / ATEX and DNV / German Lloyd / Class 1 Div 2 approvals for hazardous and marine applications. The DRF/HL models extend the existing DRF series of 120 W to 480 W DIN Rail mount power supplies. Accepting a wide range AC input of 85 V to 265 V, these highly efficient power supplies can deliver a peak load of 150% in compact, slim-line packages.

Features and Benefits

• IECEx/ATEX approval

• DNV/German Lloyd approval

• Conformal coated circuit boards

• ErP referenced design

• Remote on/off

• Narrow referenced design

Product Application Information

Applications include, broadcast, marine, harsh environments, test and measurement, and general purpose industrial.

Standards

GL Certified

Approvals

IECEx / ATEX Approval

Specifications

Attribute	Value
Series	DRF
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac
Input Voltage	85 → 264V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	5A
Power Rating	120W
Number of Outputs	1
Height	123.4mm
Width	115mm
Depth	115.4mm
Special Features	ErP Referenced Design, Remote On/Off, Remote Programming, Ultra Compact Footprint
Minimum Temperature	-25°C
Hazardous Area Certification	ATEX
Standards Met	ATEX, CE, CISPR22-B, EN 55022 Class B, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN/IEC/UL 60950-1, GL, IEC Ex, UL 508
Maximum Temperature	+70°C
Mounting Type	DIN Rail Mount
Ripple And Noise	<240mV
Output Voltage Adjustment Range	24 → 28V
