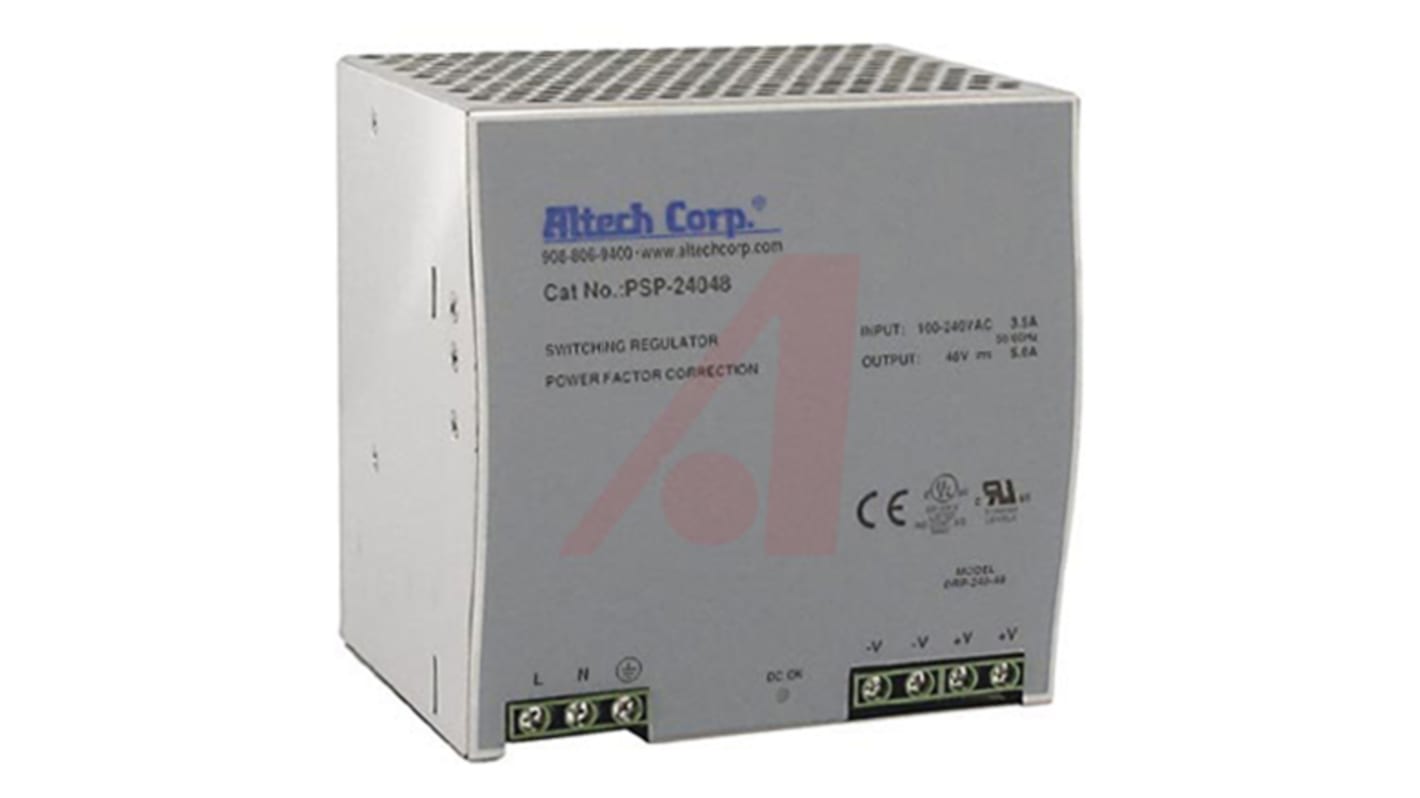

Altech PSP-240 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 48V dc dc Output, 5A Output, 240W

View all DIN Rail Power Supplies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
900-4540
Mfr. Part No.:
PSP-24048
Brand:
Altech
Find similar products by selecting one or more attributes.
Select all

Brand

Altech

Series

PSP-240

Type

Switch Mode

Electrical Phase

1

Number of Outputs

1

AC or DC Input Voltage

ac, dc

Input Voltage

85 → 264V ac

AC or DC Output Voltage

dc

Output Voltage

48V dc

Output Current

5A

Width

125.5mm

Depth

100mm

Height

125.2mm

Mounting Type

DIN Rail Mount

Efficiency

85.0%

Minimum Temperature

-10°C

Output Voltage Adjustment Range

48.0 to 53.0V

Ripple And Noise

150mV Pk-Pk

MTBF

105.5kh

Special Features

100% Full Load Burn-In Test, Cooling by Free Air Convection, Fixed Switching Frequency at 100 kHz, LED Indicator

Maximum Temperature

+70°C

Standards Met

Compliance to EN 55011, Compliance to EN 61000-3-2, -3, Compliance to EN 61000-4-2, 3 ,4, 5, 6, 8, 11, EN 55022 (CISPR22) Class B, EN 55024, EN 60950 Approved, EN 61000-6-2 (EN 50082-2) Heavy Industry Level Criteria A, ENV 50204, UL 508, UL 60950-1

COO (Country of Origin):
DE

DIN Rail Power Supply PSP Series


Altech DIN Rail mountable power supplies have a Universal AC input range of 85 V to 264 V on the single phase and 350 V to 550 V 3 phase. They are suitable for industrial and automation applications. The PSP series has a built-in short circuit, overload, over-voltage and over-temperature protection. High efficiency power supplies cooled by free air convection, featuring an LED indicator for power-on and have a 100% full load burn-in test.

Installed on DIN Rail TS35/7.5 or 15
Protections: Short Circuit/Overload/Overvoltage/Over Temperature
Cooling by Free Air Convection
Universal AC Input
