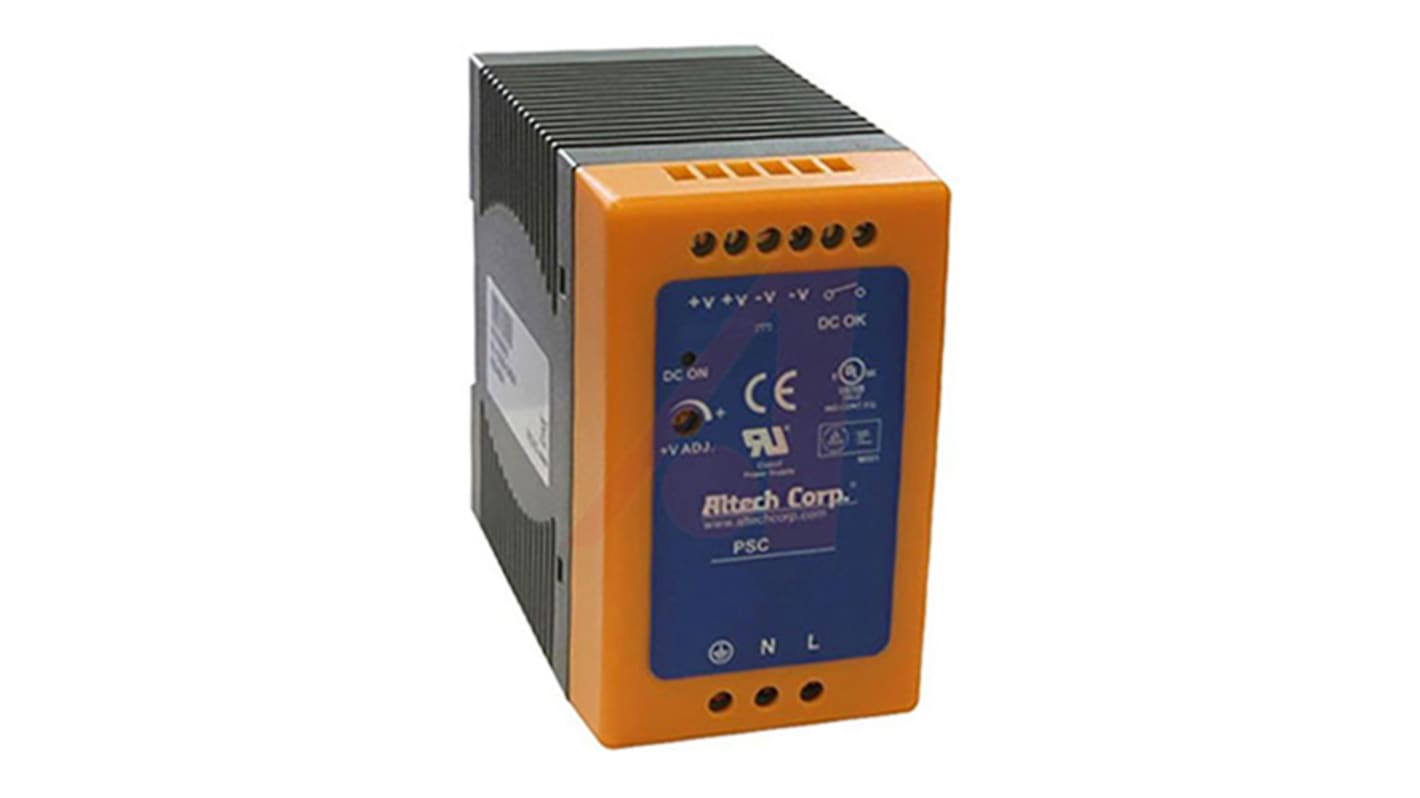

Altech PSC-96 Switch Mode DIN Rail Power Supply, 88 → 264V ac ac, dc Input, 12V dc dc Output, 7.5A Output, 90W
- RS Stock No.:
- 900-4519
- Mfr. Part No.:
- PSC-9612
- Brand:
- Altech
- RS Stock No.:
- 900-4519
- Mfr. Part No.:
- PSC-9612
- Brand:
- Altech
Select all | Attribute | Value |
|---|---|---|
| Brand | Altech | |
| Type | Switch Mode | |
| Output Voltage | 12V dc | |
| Output Current | 7.5A | |
| AC or DC Input Voltage | ac, dc | |
| AC or DC Output Voltage | dc | |
| Input Voltage | 88 → 264V ac | |
| Power Rating | 90W | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| Height | 90mm | |
| Width | 55mm | |
| Depth | 99mm | |
| Series | PSC-96 | |
| Special Features | 3-Year Product Warranty, High Efficiency, High Reliability, Long Life, True DC OK Signal Output, Universal AC Input | |
| Standards Met | CE, cULus, E 361935, EN 55022:2006+A1:2007 Class B, EN 55024:1998+A1:2001+A2:2003, EN 61000-3-2:2006 Class A, EN 61000-3-3:2008, EN 61204-3:2000, NEC Class 2, RoHS, TUV, TUV EN 60950-1:2006+A11, UL 1310, UL 508, Ulus | |
| Mounting Type | DIN Rail Mount | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -20°C | |
| Efficiency | 87.0% | |
| Output Voltage Adjustment Range | 10.8 to 13.2V | |
| Ripple And Noise | 180mV Pk-Pk | |
| MTBF | 120.4kh | |
Select all | ||
|---|---|---|
Brand Altech | ||
Type Switch Mode | ||
Output Voltage 12V dc | ||
Output Current 7.5A | ||
AC or DC Input Voltage ac, dc | ||
AC or DC Output Voltage dc | ||
Input Voltage 88 → 264V ac | ||
Power Rating 90W | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
Height 90mm | ||
Width 55mm | ||
Depth 99mm | ||
Series PSC-96 | ||
Special Features 3-Year Product Warranty, High Efficiency, High Reliability, Long Life, True DC OK Signal Output, Universal AC Input | ||
Standards Met CE, cULus, E 361935, EN 55022:2006+A1:2007 Class B, EN 55024:1998+A1:2001+A2:2003, EN 61000-3-2:2006 Class A, EN 61000-3-3:2008, EN 61204-3:2000, NEC Class 2, RoHS, TUV, TUV EN 60950-1:2006+A11, UL 1310, UL 508, Ulus | ||
Mounting Type DIN Rail Mount | ||
Maximum Temperature +70°C | ||
Minimum Temperature -20°C | ||
Efficiency 87.0% | ||
Output Voltage Adjustment Range 10.8 to 13.2V | ||
Ripple And Noise 180mV Pk-Pk | ||
MTBF 120.4kh | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
96W Single Output Industrial DIN Rail PSU
Protections: Short circuit, overload, over voltage
Cooling by free air convection
DC ok relay contact
High efficiency, long life and high reliability
