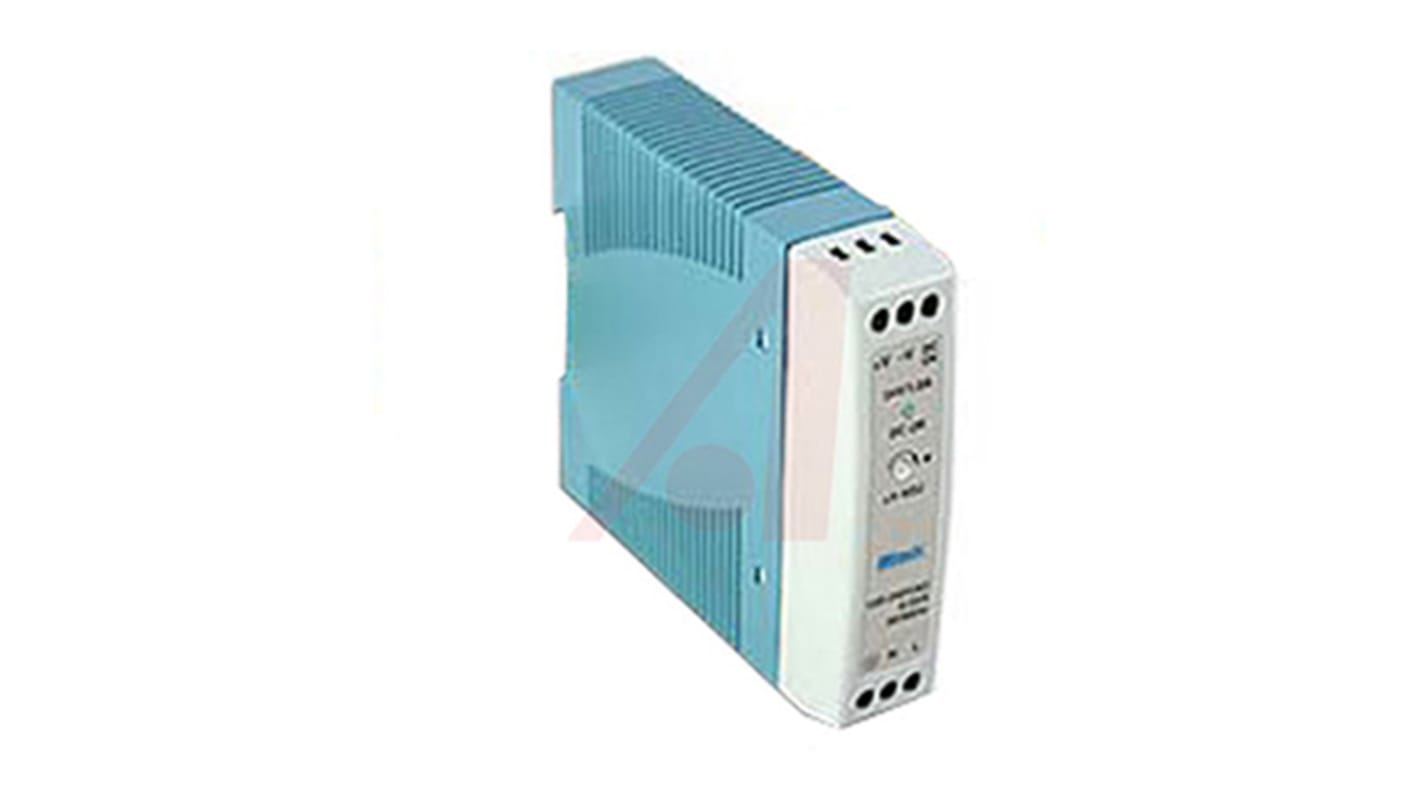

Altech PS-S20 Switch Mode DIN Rail Power Supply, 230V ac, 15V dc, 1.34A Output, 20W
- RS Stock No.:
- 900-2588
- Mfr. Part No.:
- PS-S2015
- Brand:
- Altech
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 900-2588
- Mfr. Part No.:
- PS-S2015
- Brand:
- Altech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Altech | |
| Type | Switch Mode | |
| Output Voltage | 15V dc | |
| Output Current | 1.34A | |
| Input Voltage | 230V ac | |
| Power Rating | 20W | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| Height | 90mm | |
| Width | 22.5mm | |
| Depth | 100mm | |
| Series | PS-S20 | |
| Standards Met | Compliance to EN 55011, Compliance to EN 61000-3-2, -3, Compliance to EN 61000-4-2, 3 ,4, 5, 6, 8, 11, EN 55022 (CISPR22), EN 55024, EN 60950-1 Approved, EN 61000-6-1, EN 61204-3, EN 61204-3 Class B, ENV 50204, NEC Class2/LPS Compliant, UL 508 | |
| Maximum Temperature | +70°C | |
| Mounting Type | DIN Rail | |
| Special Features | Built-In DC OK Relay Contact, Cooling by Free Air Convection, LED Indicator | |
| Output Voltage Adjustment Range | 13.5 → 16.5V | |
| MTBF | 236.9kh | |
| Ripple And Noise | 120mV Pk-Pk | |
| Minimum Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Altech | ||
Type Switch Mode | ||
Output Voltage 15V dc | ||
Output Current 1.34A | ||
Input Voltage 230V ac | ||
Power Rating 20W | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
Height 90mm | ||
Width 22.5mm | ||
Depth 100mm | ||
Series PS-S20 | ||
Standards Met Compliance to EN 55011, Compliance to EN 61000-3-2, -3, Compliance to EN 61000-4-2, 3 ,4, 5, 6, 8, 11, EN 55022 (CISPR22), EN 55024, EN 60950-1 Approved, EN 61000-6-1, EN 61204-3, EN 61204-3 Class B, ENV 50204, NEC Class2/LPS Compliant, UL 508 | ||
Maximum Temperature +70°C | ||
Mounting Type DIN Rail | ||
Special Features Built-In DC OK Relay Contact, Cooling by Free Air Convection, LED Indicator | ||
Output Voltage Adjustment Range 13.5 → 16.5V | ||
MTBF 236.9kh | ||
Ripple And Noise 120mV Pk-Pk | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- TW
DIN Rail Power Supply PS-S Series
Altech DIN Rail mount single phase power supplies have a Universal ac input range of 85-264 V ac. They are perfect for industrial and automation applications. The high efficiency (up to 91%) power supplies use free air convection for optimum cooling. They also have an LED indicator for power-on and have a 100% full load burn-in test. All models are highly reliable and excellent quality.
