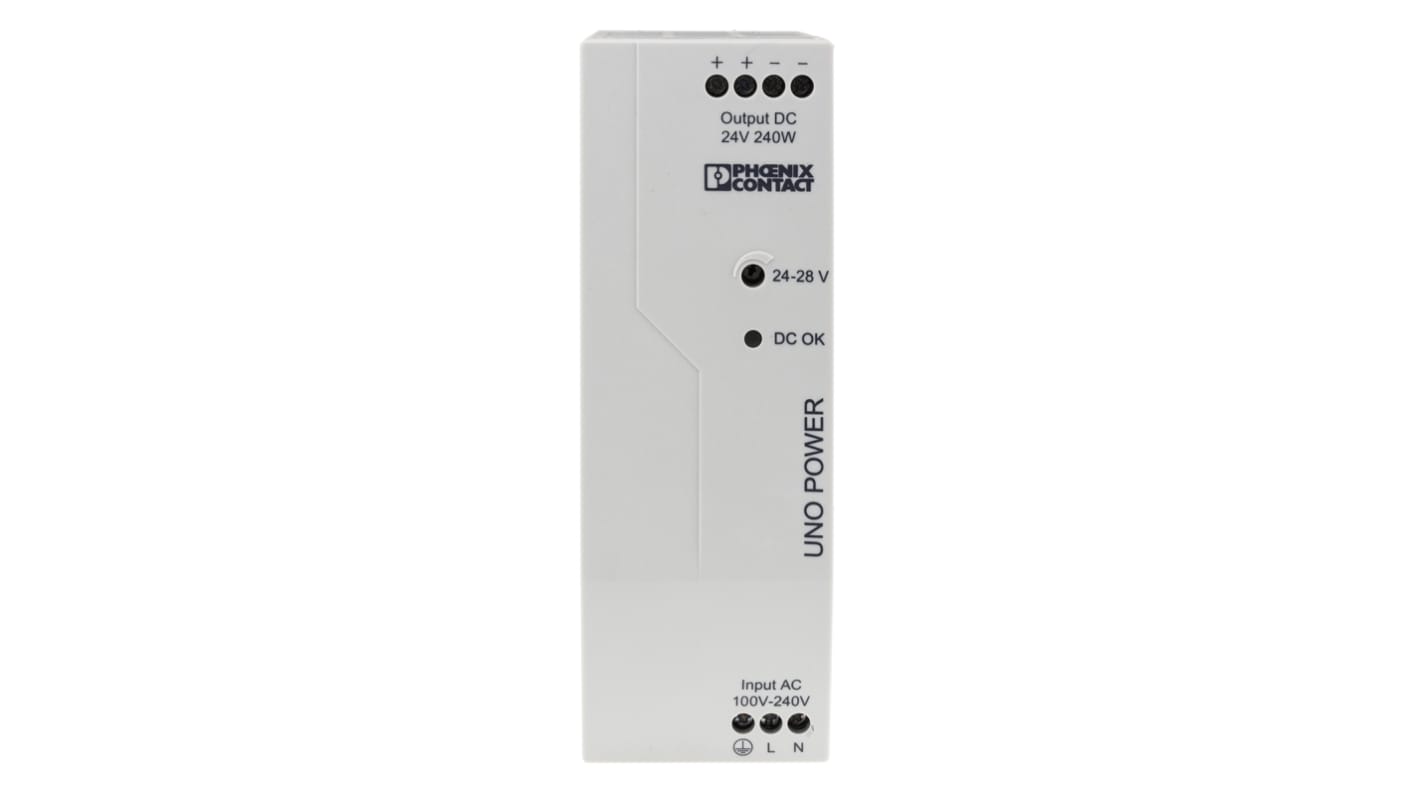

Phoenix Contact UNO POWER Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 10A
- RS Stock No.:
- 895-1959
- Mfr. Part No.:
- 2904372
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£78.05
(exc. VAT)
£93.66
(inc. VAT)
- RS Stock No.:
- 895-1959
- Mfr. Part No.:
- 2904372
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | UNO POWER | |
| Type | Switch Mode | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| AC or DC Input Voltage | ac | |
| Input Voltage | 85 → 264V ac | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 24V dc | |
| Output Current | 10A | |
| Width | 45mm | |
| Height | 130mm | |
| Depth | 125mm | |
| Standards Met | CB Scheme, DIN VDE 0100-410, EN 50178/VDE 0160 (PELV), EN 60204-1, EN 60715, EN 60950-1 (SELV) and EN 60204 (PELV), EN 60950-1/VDE 0805 (SELV), EN 61000-3-2, EN 61000-4-11, EN 61000-6-2:2005, EN 61558-2-16, UL Listed UL 508, UL/C-UL Recognized UL 60950 | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -25°C | |
| Mounting Type | DIN Rail Mount | |
| Output Voltage Adjustment Range | ±1% | |
| Special Features | Idle and Short Circuit Proof | |
| Efficiency | 93% | |
| MTBF | >641000 h at 40 °C | |
| Model | UNO-PS/1AC/24DC/240W | |
| Ripple And Noise | <50mV Pk-Pk | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series UNO POWER | ||
Type Switch Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 85 → 264V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 10A | ||
Width 45mm | ||
Height 130mm | ||
Depth 125mm | ||
Standards Met CB Scheme, DIN VDE 0100-410, EN 50178/VDE 0160 (PELV), EN 60204-1, EN 60715, EN 60950-1 (SELV) and EN 60204 (PELV), EN 60950-1/VDE 0805 (SELV), EN 61000-3-2, EN 61000-4-11, EN 61000-6-2:2005, EN 61558-2-16, UL Listed UL 508, UL/C-UL Recognized UL 60950 | ||
Maximum Temperature +70°C | ||
Minimum Temperature -25°C | ||
Mounting Type DIN Rail Mount | ||
Output Voltage Adjustment Range ±1% | ||
Special Features Idle and Short Circuit Proof | ||
Efficiency 93% | ||
MTBF >641000 h at 40 °C | ||
Model UNO-PS/1AC/24DC/240W | ||
Ripple And Noise <50mV Pk-Pk | ||
- COO (Country of Origin):
- DE
Phoenix Contact UNO Single Phase Power Supplies
The Phoenix Contact UNO PSU’s have basic functionality, making them the ideal solution for loads up to 240 W, particularly in compact control boxes thanks to their high power density and slim dimensions.
The DIN rail mounting, power supply units have a high degree of efficiency and low idling losses ensuring a high level of energy efficiency.
The DIN rail mounting, power supply units have a high degree of efficiency and low idling losses ensuring a high level of energy efficiency.
Features and Benefits:
• Save energy thanks to particularly low no-load losses and high efficiency
• Slim line housing in 22.5 mm, 35 mm and 55 mm designs
• Housing depth of just 84 mm
• Temperature range from -25 °C to +70 °C makes them suitable for outdoor installation
• Available in various performance classes and overall widths
• AC input: single-phase
• DC output: power up to 240 W
• Slim line housing in 22.5 mm, 35 mm and 55 mm designs
• Housing depth of just 84 mm
• Temperature range from -25 °C to +70 °C makes them suitable for outdoor installation
• Available in various performance classes and overall widths
• AC input: single-phase
• DC output: power up to 240 W
How do I wire a DIN rail power supply?
The UNO power supply unit's feature input and output connections that are screw connections. Simply strip 8mm from your cable and insert it either into the dedicated plus or minus ports and screw-down the M3 screw to ensure a tight connection. Give a small tug on the cable once installed to ensure it's tight.
What are DIN-rail power supplies used for?
Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.
Phoenix Contact Switch Mode DIN Rail Power Supply, 240W Power Rating - UNO-PS/1AC/24DC/240W - 2904372
Safely distribute energy to devices mounted on a DIN rail with this power supply unit (PSU) from Phoenix Contact. The robust component is housed in a combination of aluminium and polycarbonate materials, offering you reliable corrosion and impact resistance, so you don't have to worry about decay through rust. It converts single-phase AC (alternating current) supply voltage to a lower DC (direct current) output voltage that your devices can safely use.
This PSU can either be connected in series or in parallel for flexibility to suit your design specifications. For enhanced fire safety, it has a UL94V-0 (underwriters' Laboratory) rating to indicate that when a fire occurs, burning will stop under 10 seconds. This means it prevents the spread of fire and is suitable for use in hazardous areas.
This PSU can either be connected in series or in parallel for flexibility to suit your design specifications. For enhanced fire safety, it has a UL94V-0 (underwriters' Laboratory) rating to indicate that when a fire occurs, burning will stop under 10 seconds. This means it prevents the spread of fire and is suitable for use in hazardous areas.
• IP20 (ingress protection) rated to withstand dust and objects above 12mm in size
• Integrated 5A fuse for short circuit protection and electrical safety
• Light weight of 0.66kg for easy handling
• Wide operating temperature range of -25°C to +70°C for use in harsh environments
• Integrated 5A fuse for short circuit protection and electrical safety
• Light weight of 0.66kg for easy handling
• Wide operating temperature range of -25°C to +70°C for use in harsh environments
