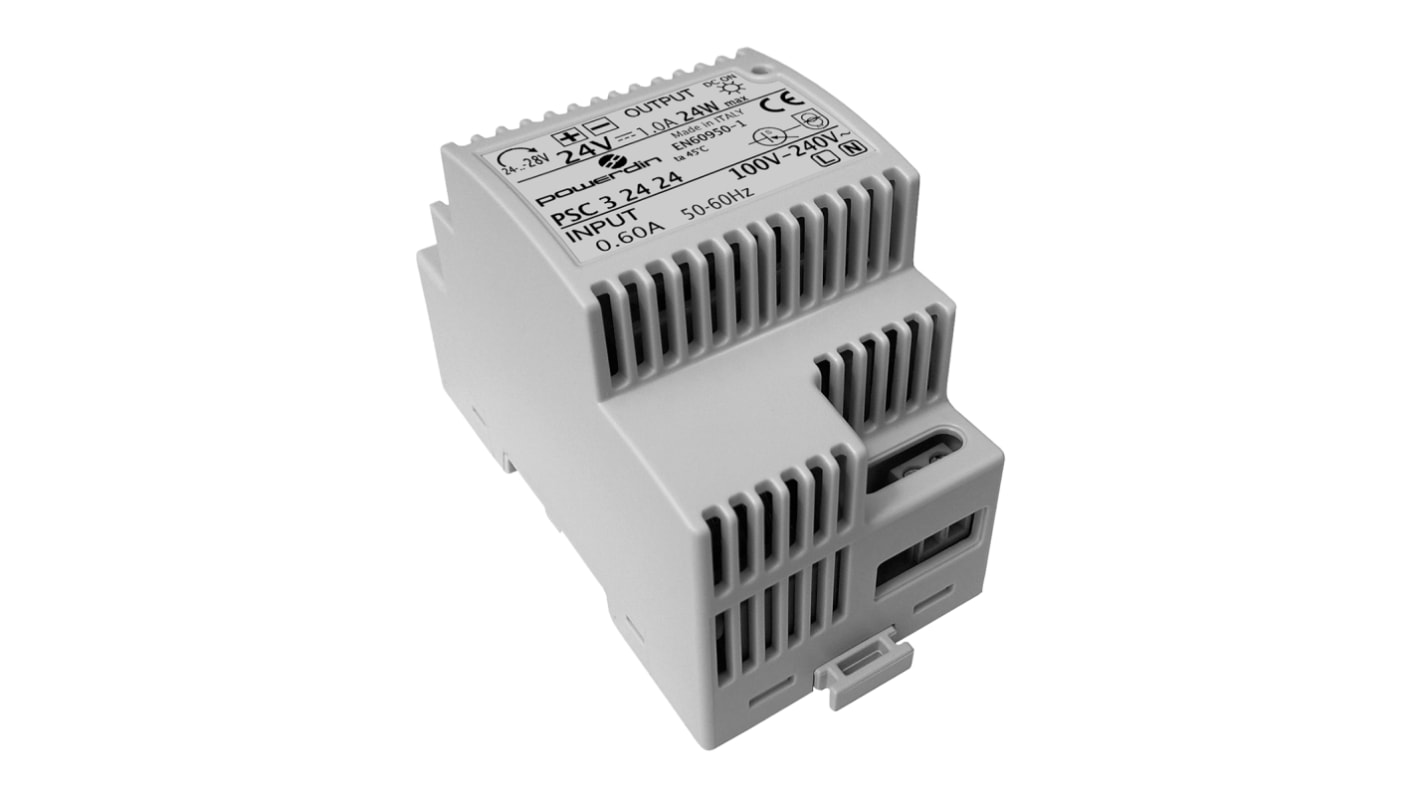

Comatec PSC DIN Rail Power Supply, 230V ac ac Input, 24V dc dc Output, 1A Output, 24W
- RS Stock No.:
- 891-9189
- Mfr. Part No.:
- PSC3.24.24
- Brand:
- Comatec
Subtotal (1 unit)*
£29.32
(exc. VAT)
£35.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 36 unit(s) shipping from 06 October 2025
- Plus 999,999,999 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £29.32 |
*price indicative
- RS Stock No.:
- 891-9189
- Mfr. Part No.:
- PSC3.24.24
- Brand:
- Comatec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Comatec | |
Series | PSC | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac | |
Input Voltage | 230V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 1A | |
Width | 52.5mm | |
Height | 93mm | |
Depth | 68mm | |
Ripple And Noise | <100mV Pk-Pk | |
MTBF | 100000h | |
Special Features | High Efficiency, High Reliability, Long Life | |
Output Voltage Adjustment Range | ±3% | |
Minimum Temperature | -10°C | |
Standards Met | Class II, EN 55022, EN 55024, EN 60950-1, EN 61000-3-2 Class C, FCC Part 15 Class B | |
Maximum Temperature | +45°C | |
Mounting Type | DIN Rail Mount | |
Select all | ||
---|---|---|
Brand Comatec | ||
Series PSC | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 230V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 1A | ||
Width 52.5mm | ||
Height 93mm | ||
Depth 68mm | ||
Ripple And Noise <100mV Pk-Pk | ||
MTBF 100000h | ||
Special Features High Efficiency, High Reliability, Long Life | ||
Output Voltage Adjustment Range ±3% | ||
Minimum Temperature -10°C | ||
Standards Met Class II, EN 55022, EN 55024, EN 60950-1, EN 61000-3-2 Class C, FCC Part 15 Class B | ||
Maximum Temperature +45°C | ||
Mounting Type DIN Rail Mount | ||
- COO (Country of Origin):
- IT
PSC Series
PSC3 and PSC4 are Class 2 Series of DIN Rail Power Supplies
PSC3
Output protection: SCP / OVP / OLP
High efficiency, long life and high reliability
All using 105°C long life electrolytic capacitors
100 % full load burn-in test
High efficiency, long life and high reliability
All using 105°C long life electrolytic capacitors
100 % full load burn-in test
PSC4
Output protection: SCP / OVP / OLP
Wide operating ambient temperature: (-10°C – 50 °C)
High efficiency, long life and high reliability
All using 105°C long life electrolytic capacitors
100 % full load burn-in test
Wide operating ambient temperature: (-10°C – 50 °C)
High efficiency, long life and high reliability
All using 105°C long life electrolytic capacitors
100 % full load burn-in test
Switch Mode - Comatec
