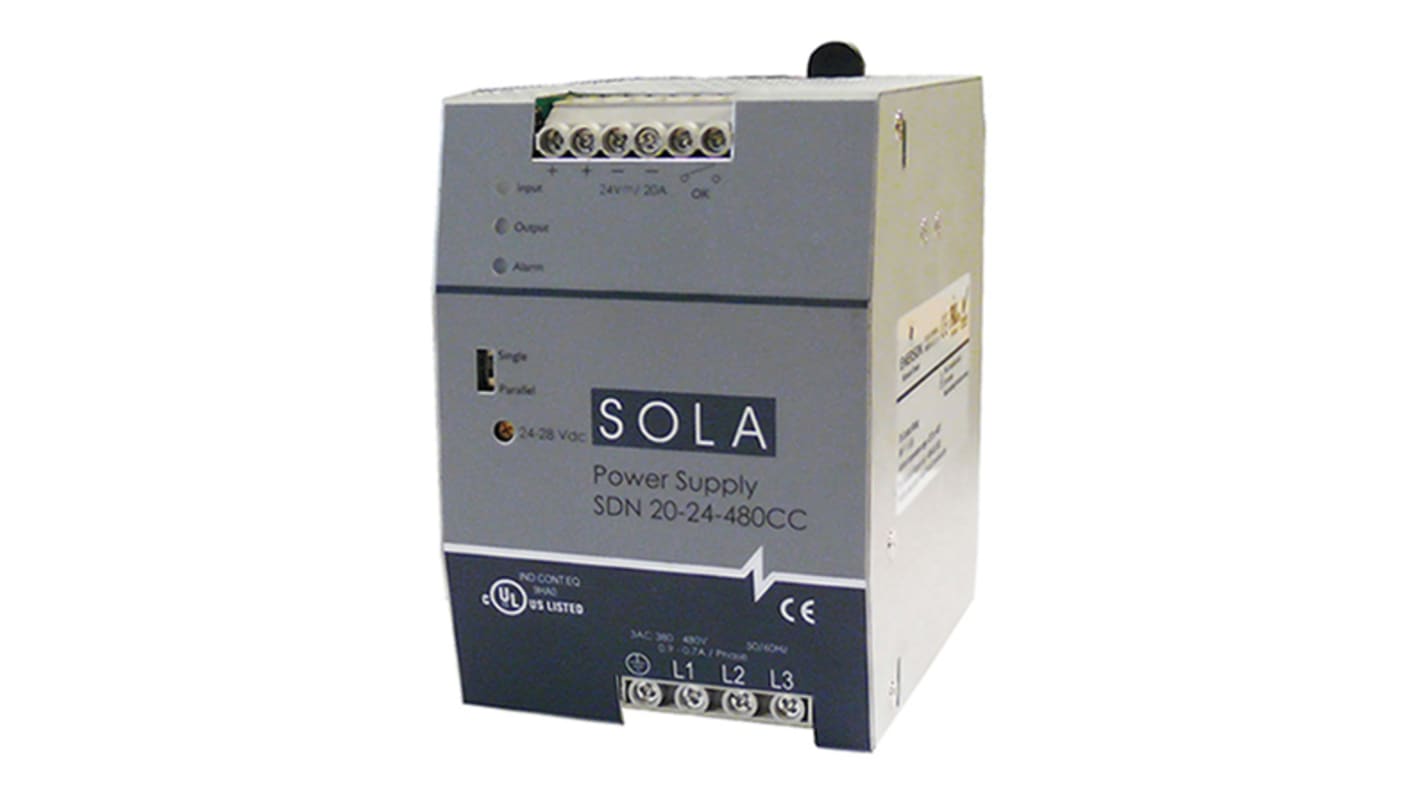

SolaHD SDN-C DIN Rail Power Supply ac Input, 24V dc dc Output, 20A Output, 480W

View all DIN Rail Power Supplies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
891-3311
Mfr. Part No.:
SDN20-24-480CC
Brand:
SolaHD
Find similar products by selecting one or more attributes.
Select all

Brand

SolaHD

Series

SDN-C

Number of Outputs

1

AC or DC Input Voltage

ac

AC or DC Output Voltage

dc

Output Voltage

24V dc

Output Current

20A

Width

119mm

MTBF

>500000h

Ripple And Noise

<100mV Pk-Pk

Minimum Temperature

-25°C

Efficiency

93%

Mounting Type

DIN Rail

Maximum Temperature

+60°C

Standards Met

ATEX, CE, cRUus, cULus, IECEx, RoHS Compliant

Special Features

Active Power Factor Correction, High MTBF Means High Reliability and Long Life, Highly Efficient Switching Technology

RoHS Status: Not Applicable

COO (Country of Origin):
PH

Sola-HD Compact Power Supplies - SDN-C Series


The SDN-C Series din rail power supplies is an all new compact version of the popular SDN series. Although they are in a much smaller package they still offer the same high efficiency with all new visual diagnostic LED’s. They still incorporate standard industrial features such as Sag Immunity, Power Factor Correction and universal voltage input making them suitable for various applications especially those where space is at a premium. This is further enhanced with a wide operating temperature range as well as parallel operation capabilities.

Potential Applications:
Industrial/Machine Control
Process Control
Conveying Equipment
Material Handling
Vending Machines
Packaging Equipment
Amusement Park Equipment
Semi-Conductor Fabrication Equipment

Compact packaging to save space on the DIN rail
New visual diagnostic LEDs for input and output status at a glance
Higher efficiency saves energy and lowers amount of heat generated in panel
PowerBoost™ overload capability to start high inrush loads
Accepts Universal voltage 85 - 264 Vac, 50/60 Hz input
Single phase models meet SEMI F47 Sag Immunity
Power Factor Correction (meets EN61000-3-2)
Class 1 Zone 2 Hazardous Locations rating ATEX approval (pending)
User Adjustable output voltage accessible via front face
Parallel capability standard
Industrial grade design
-10 to +60°C operation without de-rating
High MTBF means high reliability and long life
RoHS compliant
Available in 5 & 10A Single Phase
Highly efficient switching technology
