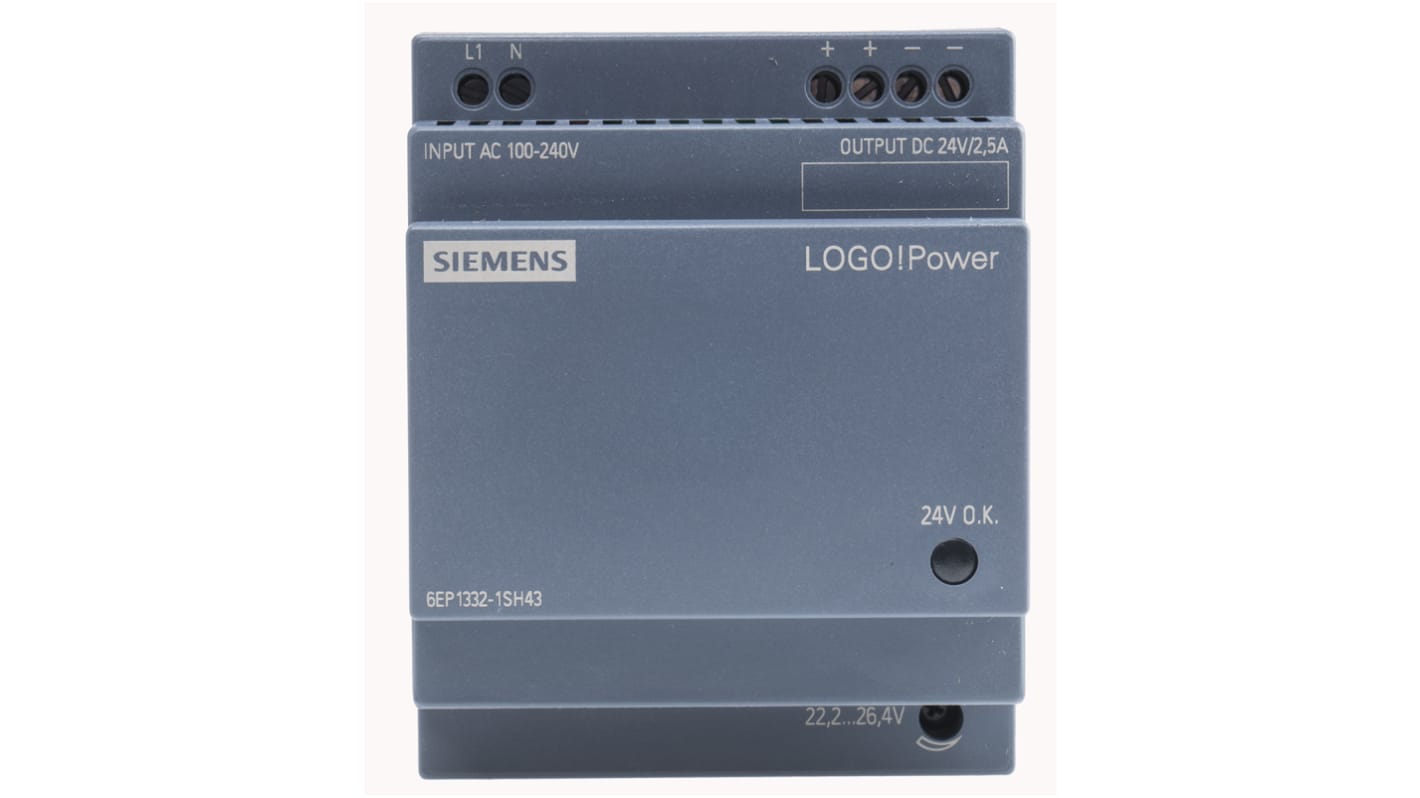

Siemens LOGO!POWER Switch Mode DIN Rail Panel Mount Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 2.5A
- RS Stock No.:
- 734-2718
- Mfr. Part No.:
- 6EP1332-1SH43
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£67.00
(exc. VAT)
£80.40
(inc. VAT)
- RS Stock No.:
- 734-2718
- Mfr. Part No.:
- 6EP1332-1SH43
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Series | LOGO!POWER | |
| Type | Switch Mode | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| AC or DC Input Voltage | ac | |
| Input Voltage | 100 → 240V ac | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 24V dc | |
| Output Current | 2.5A | |
| Dimensions | 72 x 55 x 90mm | |
| Width | 55mm | |
| Height | 90mm | |
| Depth | 90mm | |
| Load Regulation | 1.5% | |
| Mounting Type | DIN Rail | |
| Output Voltage Adjustment Range | 22.2 → 26.4V | |
| Ripple And Noise | 200mV Pk-Pk | |
| Efficiency | 88% | |
| Minimum Temperature | -20°C | |
| Hazardous Area Certification | ATEX | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Series LOGO!POWER | ||
Type Switch Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 100 → 240V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 2.5A | ||
Dimensions 72 x 55 x 90mm | ||
Width 55mm | ||
Height 90mm | ||
Depth 90mm | ||
Load Regulation 1.5% | ||
Mounting Type DIN Rail | ||
Output Voltage Adjustment Range 22.2 → 26.4V | ||
Ripple And Noise 200mV Pk-Pk | ||
Efficiency 88% | ||
Minimum Temperature -20°C | ||
Hazardous Area Certification ATEX | ||
Maximum Temperature +70°C | ||
SITOP LOGO!Power
Our miniature power supply units in the same design as the logic modules offer great performance in the smallest space. Efficiency has been improved across the entire load range, and the low-power losses in no-load operation ensure efficient operation. The power supplies are suitable for universal use due to their wide-range input for single phase networks and operation with direct voltage. They also have a wide operating temperature range, comprehensive certifications and switch-on behaviour optimised for capacitive loads. These reliable power supplies with their flat, stepped profile can be used flexibly in numerous applications such as in distribution boards.
To increase the 24 V availability, the LOGO!Power supplies can be combined with DC UPS, redundancy and selectivity modules.
To increase the 24 V availability, the LOGO!Power supplies can be combined with DC UPS, redundancy and selectivity modules.
Features and Benefits
• Single phase, wide input range 85 V to 264 V ac or 110 V to 300 V dc
• Power reserve on starting up through 1.5 times the rated current for capacitive loads
• Wide temperature range: -20°C to 70°C
• Installation depth of 55 mm
• High efficiency across the entire load range
Approvals
cULus, cURus, NEC class 2, CE, CB, FM, ATEX, cCSAus Class I Div. 2, GL, ABS
Warning
This product is in obsolescence mode and is due for discontinuation by the manufacturer. We recommend that you review alternative highlighted by the manufacturer. Alternatively, refer to the cross reference list in the Technical Reference section which highlights the upgrade path for your current generation of products.
