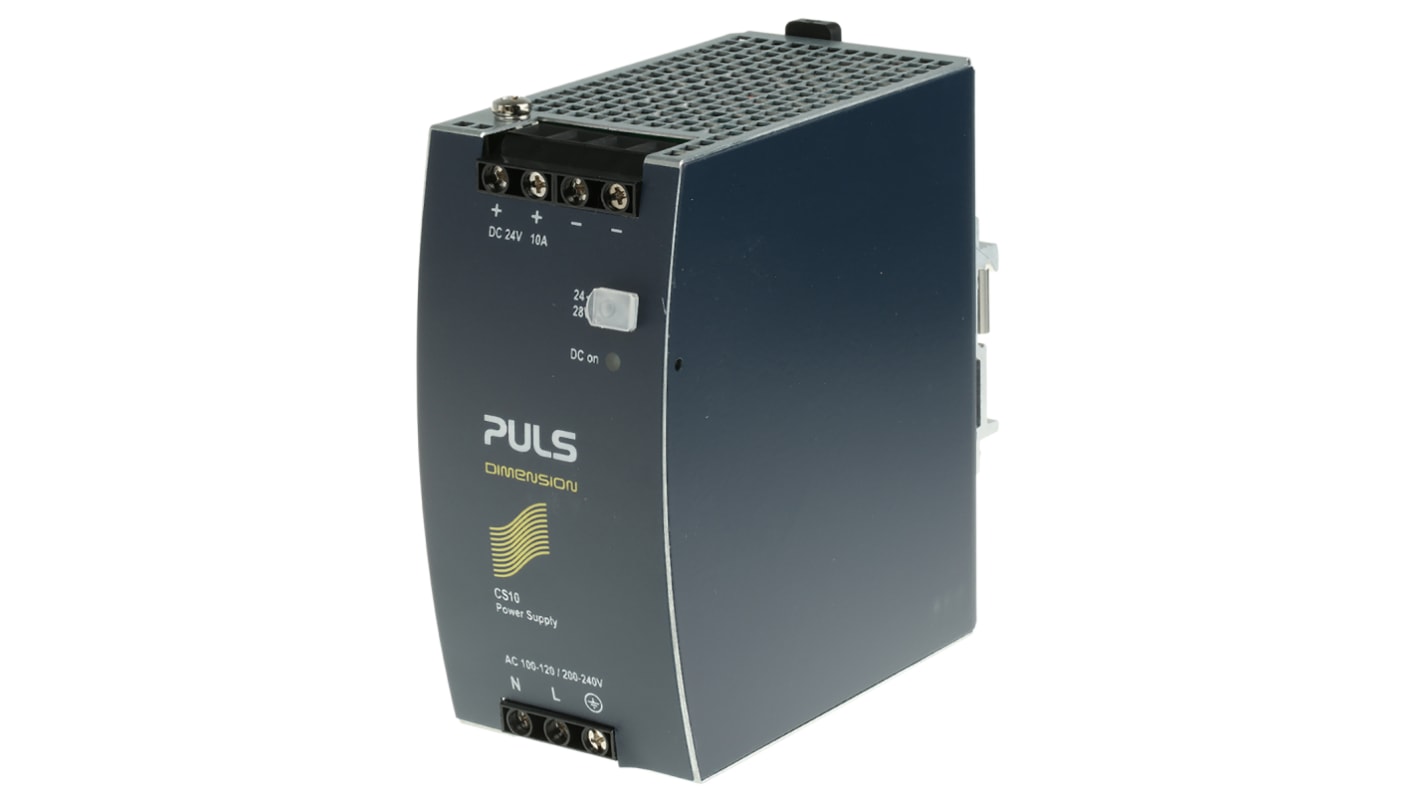

PULS DIMENSION C-Line Switched Mode DIN Rail Power Supply, 100→120V ac ac Input, 24V dc dc Output, 10A Output,

Subtotal (1 unit)*

£231.56

(exc. VAT)

£277.87

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 18 unit(s) ready to ship from another location
  • Plus 2 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£231.56

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

RS Stock No.:
627-6196
Distrelec Article No.:
169-96-522
Mfr. Part No.:
CS10.242
Brand:
PULS
Find similar products by selecting one or more attributes.
Select all

Brand

PULS

Series

DIMENSION C-Line

Type

Switched Mode

Electrical Phase

1

AC or DC Input Voltage

ac

Number of Outputs

1

Input Voltage

100→120V ac

AC or DC Output Voltage

dc

Output Voltage

24V dc

Output Current

10A

Dimensions

60 x 124 x 117mm

Height

124mm

Depth

117mm

Width

60mm

MTBF

1393000h

Load Regulation

100mV

Ripple And Noise

50mV Pk-Pk

Mounting Type

DIN Rail Mount

Maximum Temperature

+70°C

Minimum Temperature

-25°C

COO (Country of Origin):
CN

Dimension C-Series - Puls Power Supplies


The C-Series DIN Rail power supplies are affordable basic units which offer an alternative to the feature-rich Q-Series. The same standards apply to the C-Series Puls power supplies as to all other PULS products in terms of quality. They are reliable, easy to operate, have a small overall size and generous power reserves. In the 120W class, the C-Series power supplies are even smaller than the Q Series and yet are every bit as durable. This power supply has a specified life expectancy of the electrolytic capacitor of 50,000 hours. The guaranteed power boost of +20% of the rated power is intended to ensure optimal adaptation to fluctuating loads. If the ambient temperature remains below 45°C or with forced ventilation, this performance is even specified for continuous loads. The units are equipped with automatic 115/230 V range switching for increased ease of operation and fault avoidance.
The units are available in special regional versions that cover either the 100 V to 120 V or 200 V to 240 V ranges. The C series Puls power supply supports regional applications and offers extra cost savings without sacrificing functionality.

Features and Benefits


• Wide range auto select input

• Minimal inrush current

• 20% Power reserves up to 45°C continuously allowed

• Large screw terminals

• CS10.242 has power factor correction to EN61000-3-2

• DC-ok LED

• Cost effective

Note

Power de-rating @ +60 to +70°C.

Standards

UL60950-1, UL508, IEC60950-1

Approvals

UL Listed

Standards

IEC, UL, EN, SELV
