S8VM series cut-out power supplies 15 → 150W

DIN rail power supply, available in a compact housing from 15 → 150 W at 5, 12 and 24 Vdc.
Activates an alarm if an anomaly is detected by observing dc output behaviour, thus enabling rapid determination of the fault.
Indicates anomalies on the load side (under-voltage alarm).
Indicates an input power supply fault (under-voltage alarm).

Part Number S8VM- 15024CD

The S8VM Switch mode Din Rail mounted power supply is a covered type, terminal block structure with screw terminals. Your fingers are protected from electric shocks. S8VM- 15024CD has a power rating of 150 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 240 V ac. This Standard model incudes green output indicators plus is natural air cooling.

Features and Benefits.

• Covered type power supply

• Screw terminal

• Design stops screws from falling out of the terminal block

• Switch mode

• DIN Rail Mounted

• Green output indicators

• Natural air cooling

• Power rating 150 W

• Output voltage 24 V dc

• Input voltage 100 V ac to 240 V ac

• Rated output current 6.5 A

• Harmonic current emissions

• Efficiency 83% min.

• Frequency 50/60 Hz

• Remote sensing function

• Electric shock finger protection

• RoHS compliant including Lead Free construction

What is a DIN Rail Mounted Power Supply?

A DIN Rail is a standard type of rail that is used to mount the power supply into racks. DIN Rails are a support for equipment. DIN Rails are normally made from aluminium but if there is a chance that the power supply suffers any shock or vibration, use a steel DIN Rail.

What is A Switch Mode Power Supply?

Switch mode power supplies are a general purpose power supply include a switching regulator converting AC mains power to a lower voltage DC. A Switch mode power supply is efficient limiting any wasted energy.

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.

Shock resistance 150 m/s **2 in each 6 directions 3 times.

Standards

UL508/60950-1/1604, CSA C22.2 No. 14/No. 60950-1/No. 213, EN50178, EN60950-1. SELVE, Harmonic current emissions conform to EN61000-3-2.

Select all	Attribute	Value
	Brand	Omron
	Type	Switch Mode
	Output Voltage	24V dc
	Output Current	6.5A
	AC or DC Input Voltage	ac
	AC or DC Output Voltage	dc
	Input Voltage	85 → 264V ac
	Power Rating	150W
	Electrical Phase	1
	Number of Outputs	1
	Height	82.5mm
	Width	49.1mm
	Depth	178.1mm
	Series	S8VM
	Maximum Temperature	+50°C
	Ripple And Noise	±0.75%
	Efficiency	83%
	MTBF	135000h
	Load Regulation	±0.8%
	Mounting Type	DIN Rail Mount

	Select all
	Brand Omron
	Type Switch Mode
	Output Voltage 24V dc
	Output Current 6.5A
	AC or DC Input Voltage ac
	AC or DC Output Voltage dc
	Input Voltage 85 → 264V ac
	Power Rating 150W
	Electrical Phase 1
	Number of Outputs 1
	Height 82.5mm
	Width 49.1mm
	Depth 178.1mm
	Series S8VM
	Maximum Temperature +50°C
	Ripple And Noise ±0.75%
	Efficiency 83%
	MTBF 135000h
	Load Regulation ±0.8%
	Mounting Type DIN Rail Mount

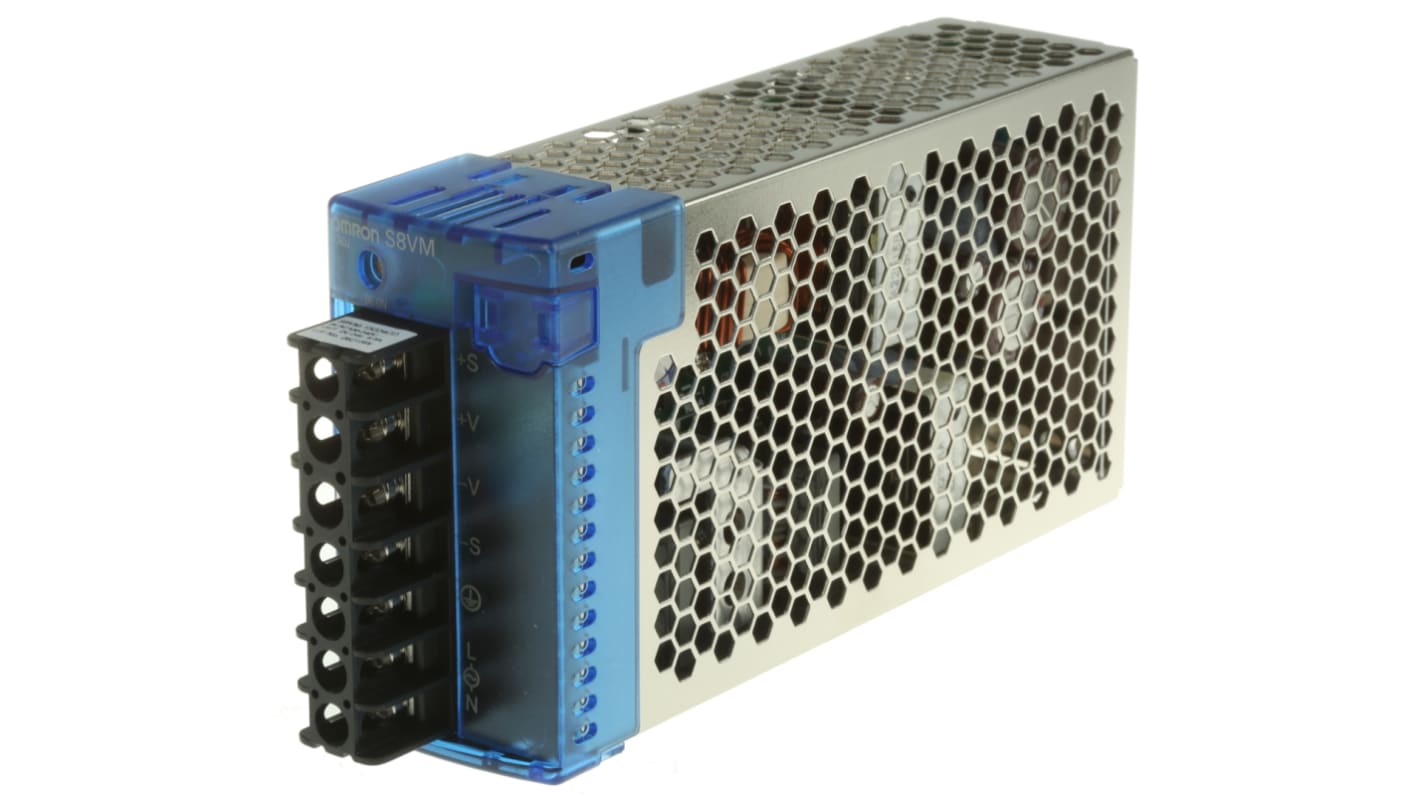

Omron S8VM Switch Mode DIN Rail Panel Mount Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 6.5A Output,
