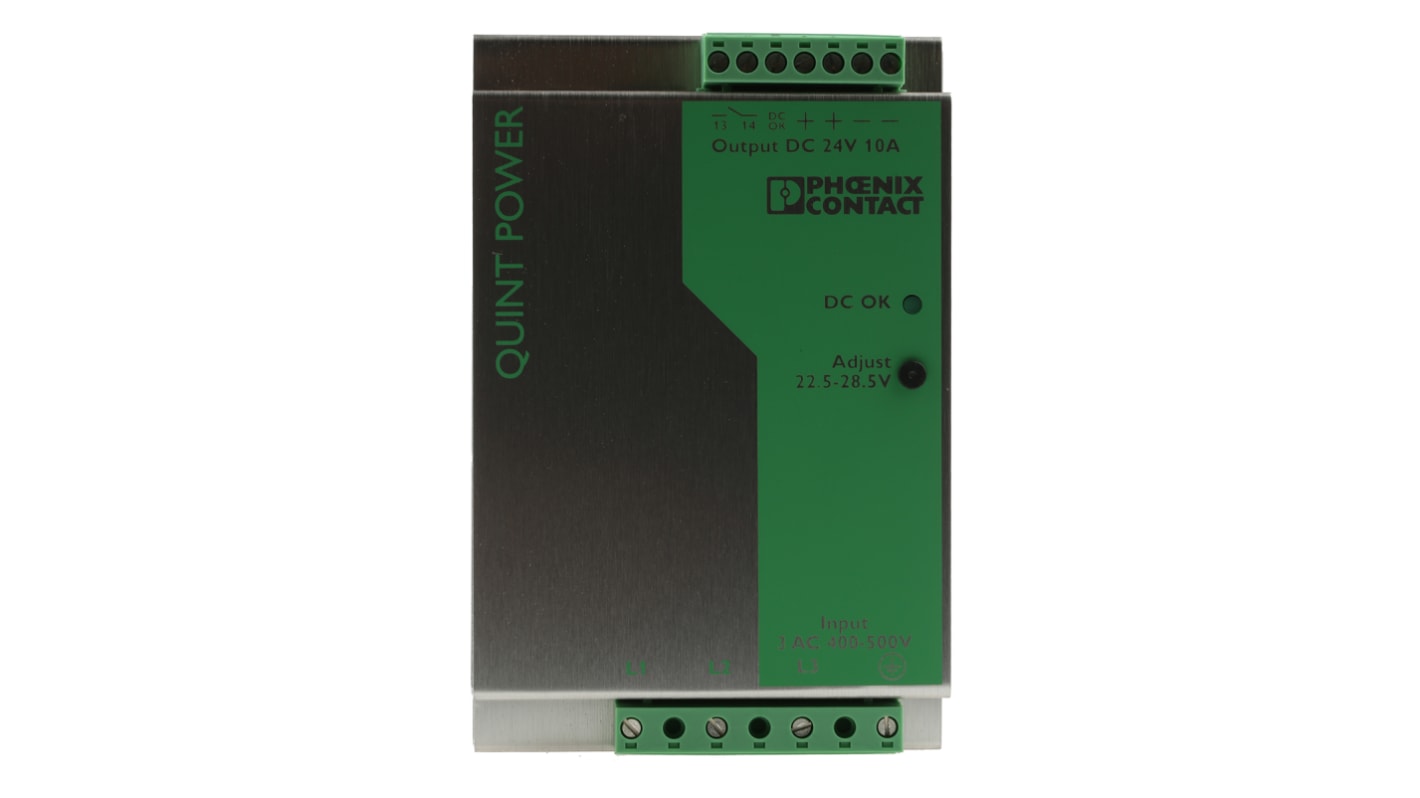

Phoenix Contact QUINT POWER Switch Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 10A Output, 240W
- RS Stock No.:
- 505-5358
- Mfr. Part No.:
- 2938617
- Brand:
- Phoenix Contact
- RS Stock No.:
- 505-5358
- Mfr. Part No.:
- 2938617
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | QUINT POWER | |
| Type | Switch Mode | |
| Electrical Phase | 3 | |
| AC or DC Input Voltage | ac | |
| Number of Outputs | 2 | |
| Input Voltage | 400V ac | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 24V dc | |
| Output Current | 10A | |
| Dimensions | 125 x 85 x 130mm | |
| Height | 130mm | |
| Width | 85mm | |
| Depth | 130mm | |
| Efficiency | >90% | |
| Model | QUINT-PS-3X400-500AC/24DC/10 | |
| Minimum Temperature | -25°C | |
| MTBF | 500000h | |
| Load Regulation | ±1% | |
| Ripple And Noise | 20mV Pk-Pk | |
| Mounting Type | DIN Rail Mount | |
| Maximum Temperature | +70°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series QUINT POWER | ||
Type Switch Mode | ||
Electrical Phase 3 | ||
AC or DC Input Voltage ac | ||
Number of Outputs 2 | ||
Input Voltage 400V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 10A | ||
Dimensions 125 x 85 x 130mm | ||
Height 130mm | ||
Width 85mm | ||
Depth 130mm | ||
Efficiency >90% | ||
Model QUINT-PS-3X400-500AC/24DC/10 | ||
Minimum Temperature -25°C | ||
MTBF 500000h | ||
Load Regulation ±1% | ||
Ripple And Noise 20mV Pk-Pk | ||
Mounting Type DIN Rail Mount | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- SK
Phoenix Contact QUINT PS
The QUINT PS range of universal power supply units from Phoenix Contact are designed for starting heavy loads with high inrush currents reliably using POWER BOOST power reserve.
The DIN rail mounting, PSUs can be installed within the potentially hazardous area in which category 3 items are necessary.
The DIN rail mounting, PSUs can be installed within the potentially hazardous area in which category 3 items are necessary.
Features and Benefits
• Preventive function monitoring
• Reliable at starting difficult loads
• Use worldwide
• Extensive product range
• Fast Tripping of Standard Power Circuit breakers
• All ranges between 5 V DC AND 56 V DC are covered
• Single and three phase options
• IP20 protection
• LED displays
• Reliable at starting difficult loads
• Use worldwide
• Extensive product range
• Fast Tripping of Standard Power Circuit breakers
• All ranges between 5 V DC AND 56 V DC are covered
• Single and three phase options
• IP20 protection
• LED displays
Typical Applications
The QUINT PS units are suitable for use within power management.
Standards
EN 60079-15
Phoenix Contact Switch Mode DIN Rail Power Supply, 240W Power Rating - QUINT-PS-3X400-500AC/24DC/10 - 2938604
Deliver stable and reliable electricity to your devices with this power supply unit (PSU) from Phoenix Contact. It converts 400V AC (alternating current) to 24V DC (direct current), and its power-boost feature means you can turn to it when you need to start heavy loads with high inrush currents.
This PSU has an MTBF (mean time between failures) of 500,000 hours, so you can count on it to last a long time with minimal maintenance. It fits easily into busy setups, thanks to its compact dimensions of 130 (H) x 85 (W) x 125mm (D). To protect against harmful short circuits, the PSU has an internal 5A slow-blow fuse. Plus, it comes with a varistor to prevent sudden voltage spikes. You'll find PSUs like this used in the manufacturing and automotive industries.
This PSU has an MTBF (mean time between failures) of 500,000 hours, so you can count on it to last a long time with minimal maintenance. It fits easily into busy setups, thanks to its compact dimensions of 130 (H) x 85 (W) x 125mm (D). To protect against harmful short circuits, the PSU has an internal 5A slow-blow fuse. Plus, it comes with a varistor to prevent sudden voltage spikes. You'll find PSUs like this used in the manufacturing and automotive industries.
• Operating temperature range of -25°C to +70°C for safe use in challenging industrial environments
• Light weight of 1.1kg, so it's easy to handle and won't add strain to the mounting surface
• Green LED (light-emitting diode) indicators make it quick and easy to see the unit's operating status
• Light weight of 1.1kg, so it's easy to handle and won't add strain to the mounting surface
• Green LED (light-emitting diode) indicators make it quick and easy to see the unit's operating status
