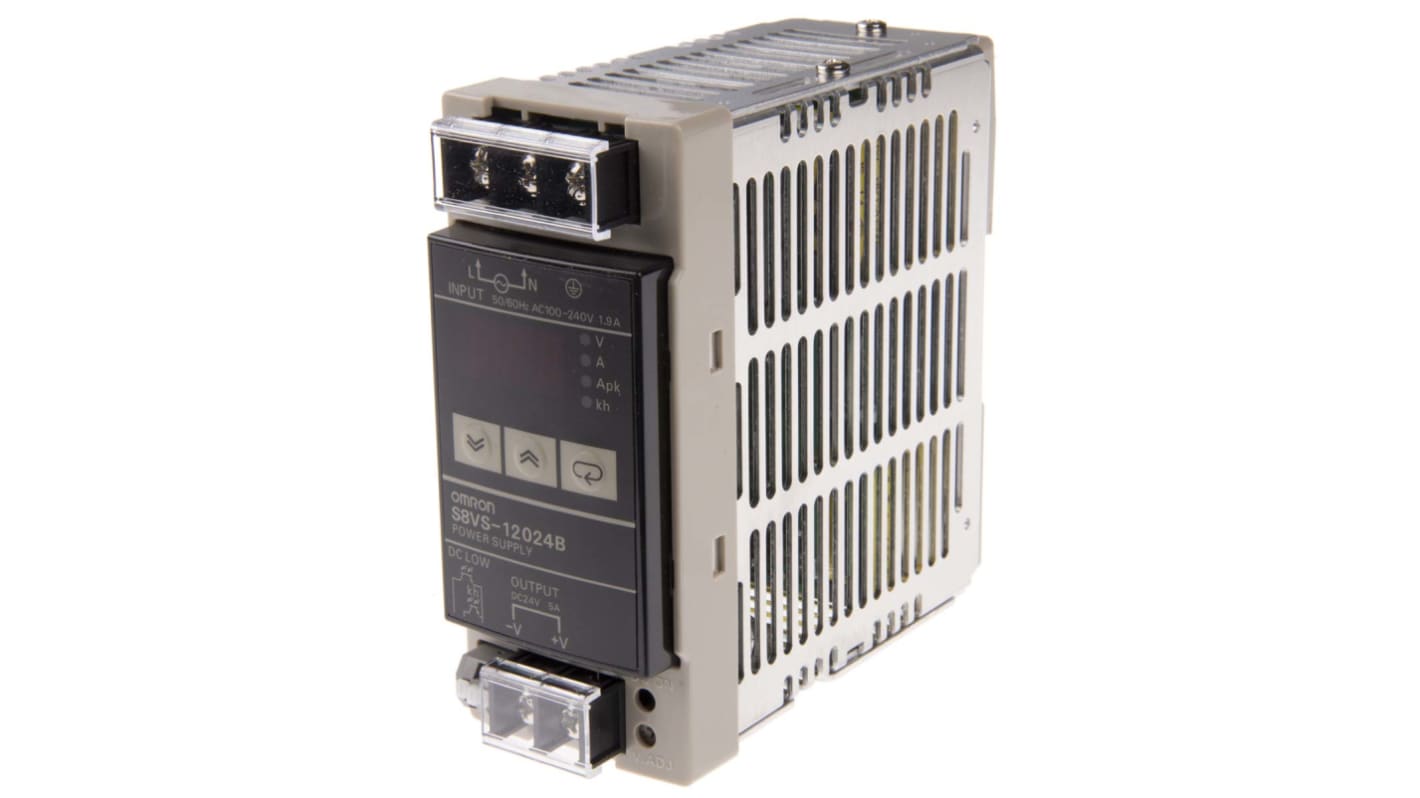

    Omron S8VS Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 5A Output, 120W

    RS Stock No.:
    452-8647
    Mfr. Part No.:
    S8VS-12024B
    Brand:
    Omron
    Omron
    View all DIN Rail Power Supplies
    5 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £265.50

    (exc. VAT)

    £318.60

    (inc. VAT)

    UnitsPer unit
    1 +£265.50
    RS Stock No.:
    452-8647
    Mfr. Part No.:
    S8VS-12024B
    Brand:
    Omron
    COO (Country of Origin):
    CN

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    CN

    Product Details

    60W to 240W S8VS Series Power Supplies


    A range of switch mode power supplies from Omron with or without indication monitors and simple functions for easy system use.The units are suitable for household appliances and building automation controls which are increasingly required in commercial and residential premises.

    60/90/120/180/240/480-W Models


    • 90-W models have an indication monitor that conforms to UL Class 2 Output standards
    • New models with screwless terminal blocks and indication monitor
    • 3-digit, 7-segment status display









    Note

    Approvals

    Part Number S8VS-12024B


    The S8VS Switch mode, Din Rail mounted power supply is a covered type, screw terminal block display monitor. S8VS-12024B has a power rating of 120 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 240 V ac. This Sinking undervoltage alarm output model incudes green output indicators plus is natural air cooling. The S8VS-12024B does have a total run time monitor.

    Features and Benefits.


    • Covered type power supply

    • Screw terminal

    • Design stops screws from falling out of the terminal block

    • Switch mode

    • DIN Rail Mounted

    • Green output indicators

    • Natural air cooling

    • Power rating 120 W

    • Output voltage 24 V dc

    • Input voltage 100 V ac to 240 V ac

    • Rated output current 5 A

    • Harmonic current emissions

    • Efficiency 85% min.

    • Under-voltage alarm output – open collector, 30 V dc, 50 mA, Sinking (NPN)

    • Total run time monitor output

    • Sinking alarm output (emitter COM)

    • RoHS compliant including Lead Free construction

    • Weight 550 g

    Safety and Storage.


    Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.

    Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.

    Shock resistance 150 m/s² 3 times each in 3 directions

    Approvals

    7777

    Standards

    Harmonic current emissions conform to EN61000-3-2.
    Conforms to SEMI F47-0706 (when 200 V ac input is used)
    UL 508/60950-1, CSA C22.2 No. 107.1/60950/1, EN50178 (=VDE 0160),
    EN60950-1 (=VDE 0805 Teil 1)

    Specifications

    AttributeValue
    Output Voltage24V dc
    Output Current5A
    AC or DC Input Voltageac
    AC or DC Output Voltagedc
    Input Voltage85 → 264V ac
    Power Rating120W
    Electrical Phase1
    Number of Outputs1
    Mounting TypeDIN Rail Mount
    TypeSwitch Mode
    Width50mm
    Height115mm
    SeriesS8VS
    Depth121.2mm
    Minimum Temperature-10°C
    Maximum Temperature+60°C
    Efficiency80%
    Ripple And Noise±2%
    Load Regulation±1.5%
    MTBF135000h
