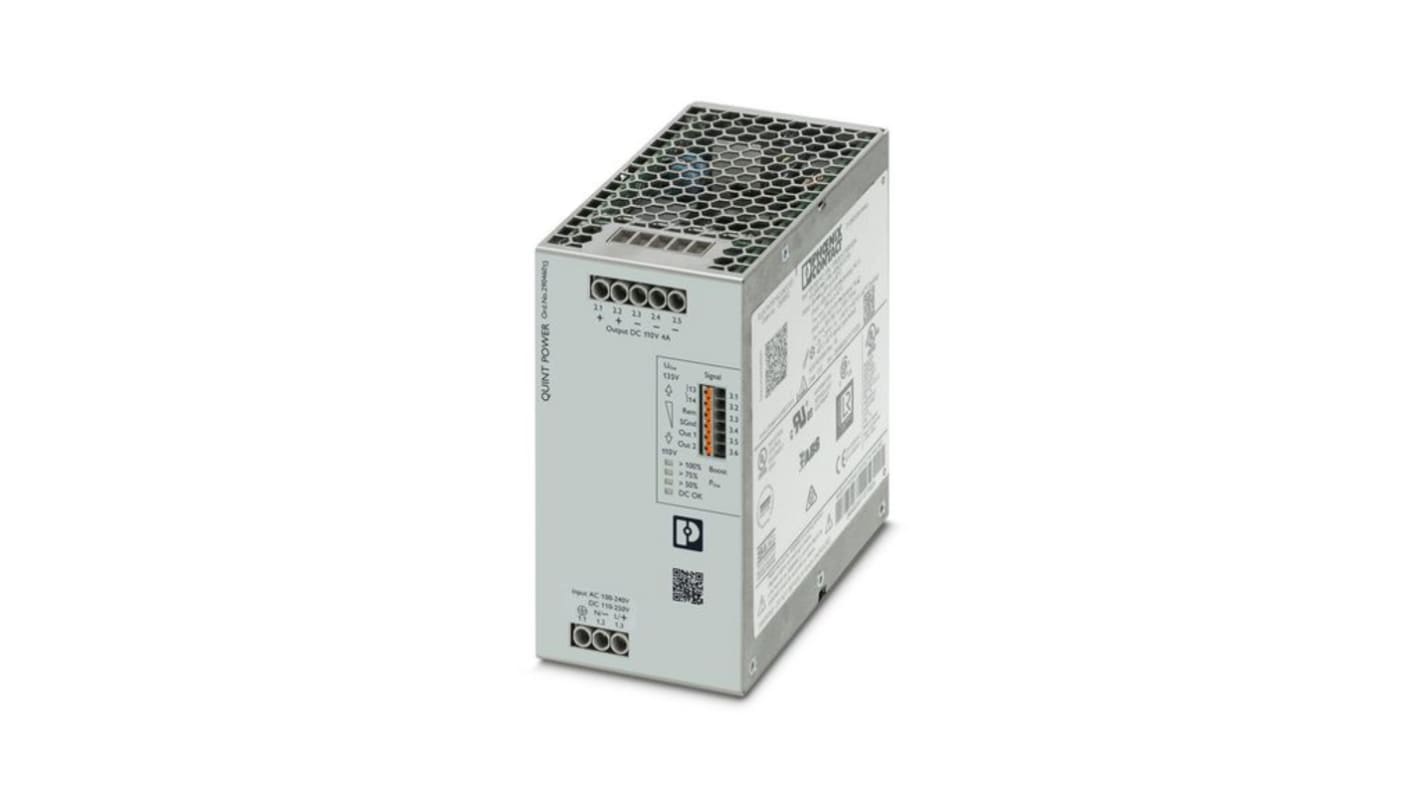

Phoenix Contact QUINT POWER DIN Rail Power Supply, 100 → 240V ac ac Input, 110V ac Output, 4A Output, 660W
- RS Stock No.:
- 288-1833
- Mfr. Part No.:
- 2904613
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 288-1833
- Mfr. Part No.:
- 2904613
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | QUINT POWER | |
Type | DIN Rail Power Supply | |
AC Input Voltage | 240V ac | |
Electrical Phase | Single Phase | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac | |
Input Voltage | 100 → 240V ac | |
AC or DC Output Voltage | ac | |
Output Voltage | 110V | |
Output Current | 4A | |
Dimensions | 130 x 70 x 125mm | |
Width | 70mm | |
Height | 130mm | |
Depth | 125mm | |
Mounting Type | DIN Rail Mount | |
Model | QUINT4-PS/1AC/110DC/4 | |
Efficiency | 94.7% | |
Minimum Temperature | -25°C | |
Standards Met | EN 61000-3-2 | |
Maximum Temperature | +70°C | |
Ripple And Noise | 600mV Pk-Pk | |
MTBF | 308000 h (60 °C), 688000 h (40 °C), 1169000 h (25 °C) | |
Output Voltage Adjustment Range | 110 → 135V | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series QUINT POWER | ||
Type DIN Rail Power Supply | ||
AC Input Voltage 240V ac | ||
Electrical Phase Single Phase | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 100 → 240V ac | ||
AC or DC Output Voltage ac | ||
Output Voltage 110V | ||
Output Current 4A | ||
Dimensions 130 x 70 x 125mm | ||
Width 70mm | ||
Height 130mm | ||
Depth 125mm | ||
Mounting Type DIN Rail Mount | ||
Model QUINT4-PS/1AC/110DC/4 | ||
Efficiency 94.7% | ||
Minimum Temperature -25°C | ||
Standards Met EN 61000-3-2 | ||
Maximum Temperature +70°C | ||
Ripple And Noise 600mV Pk-Pk | ||
MTBF 308000 h (60 °C), 688000 h (40 °C), 1169000 h (25 °C) | ||
Output Voltage Adjustment Range 110 → 135V | ||
- COO (Country of Origin):
- TH
Phoenix Contact QUINT POWER Series DIN Rail Power Supply, 110V Output Voltage, 94.7% Efficiency - 2904613
This DIN Rail Power Supply is a high-efficiency unit designed for demanding industrial applications. With dimensions of 130 x 70 x 125mm, it offers robust performance, including a single-phase system capable of handling a wide input voltage range. The output voltage is adjustable from 110V to 135V DC, ensuring flexibility in various setups.
Features & Benefits
• SFB Technology allows rapid current delivery up to six times the nominal rating
• Mains buffering of at least 20ms ensures stability during power fluctuations
• High efficiency rating of 94.7% optimises energy consumption
• Comprehensive signalling includes LED indicators for clear operational status
• Remote input feature enables easy control during operation
• Long service life with an MTBF exceeding 1,169,000 hours at 25°C
• Mains buffering of at least 20ms ensures stability during power fluctuations
• High efficiency rating of 94.7% optimises energy consumption
• Comprehensive signalling includes LED indicators for clear operational status
• Remote input feature enables easy control during operation
• Long service life with an MTBF exceeding 1,169,000 hours at 25°C
Applications
• Used in automation systems requiring reliable power supply
• Suitable for industrial electronics where stable voltage is critical
• Ideal for driving loads with high inrush currents like motors
• Employed in railway power supply systems under stringent regulations
• Utilised in control cabinet installations in various sectors
• Suitable for industrial electronics where stable voltage is critical
• Ideal for driving loads with high inrush currents like motors
• Employed in railway power supply systems under stringent regulations
• Utilised in control cabinet installations in various sectors
What input voltage range can be accommodated by this unit?
It can handle a wide input voltage range of 100 to 240V AC, making it adaptable to different systems.
How does the power supply protect against overloads?
The power supply features Selective Fuse Breaking (SFB) technology, which provides a peak current of six times the nominal current for 15ms, ensuring that connected loads remain powered during overload scenarios.
Can the output voltage be adjusted for different applications?
Yes, the output voltage is adjustable between 110V and 135V DC, allowing for tailored power supply to meet specific requirements.
What is the significance of the maximum temperature rating?
With a maximum operating temperature of 70°C, it ensures reliable performance in hot environments while maintaining system integrity.
Is there any indication for monitoring performance status?
Yes, it includes LED status indicators to provide real-time information about output voltage levels and operational efficiency, facilitating easy troubleshooting.
