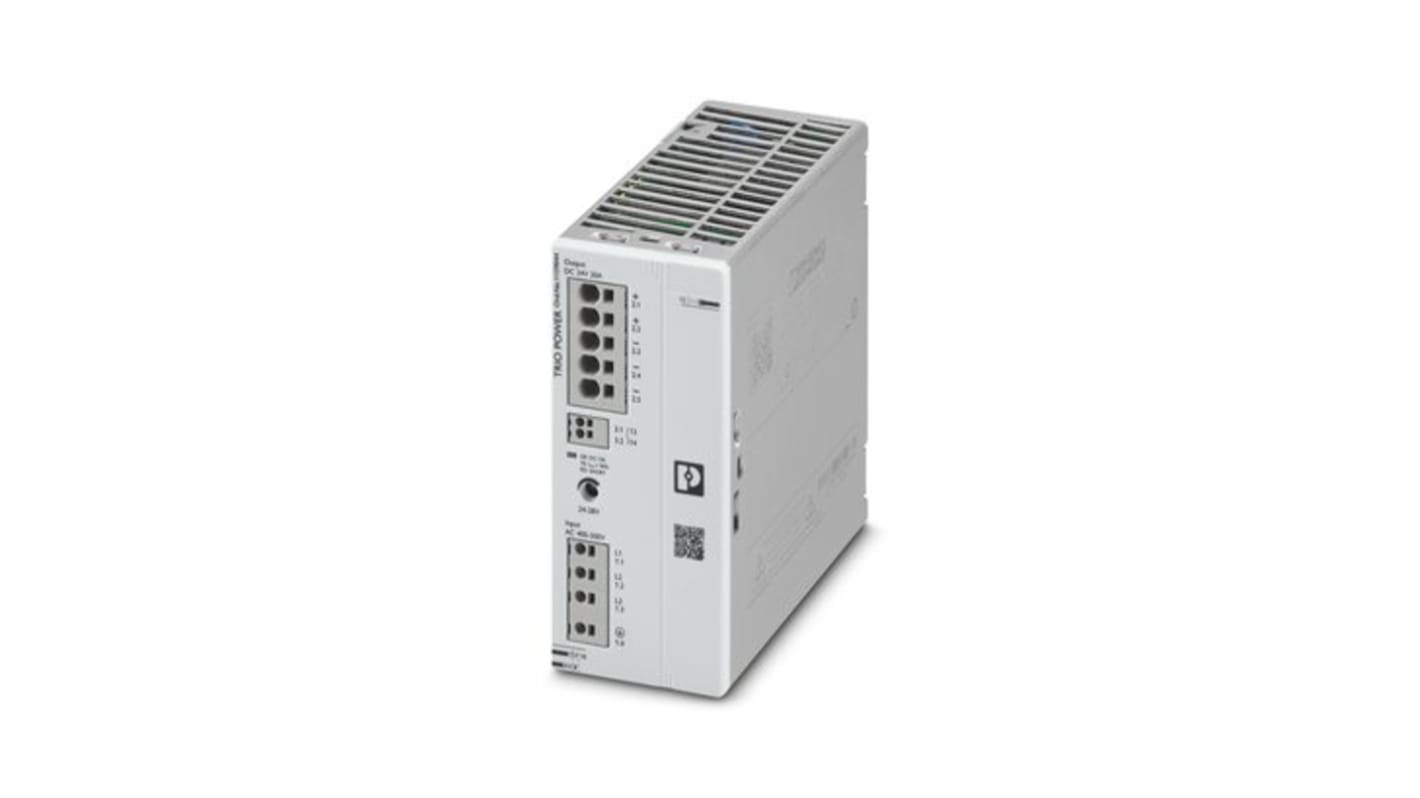

Phoenix Contact TRIO POWER Power Supply DIN Rail Power Supply 500V dc DC Input 24V, 20 A Output DC 480 W
- RS Stock No.:
- 286-0994
- Mfr. Part No.:
- 1159044
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£250.45
(exc. VAT)
£300.54
(inc. VAT)
FREE delivery for orders over £60.00
- 3 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 + | £250.45 |
*price indicative
- RS Stock No.:
- 286-0994
- Mfr. Part No.:
- 1159044
- Brand:
- Phoenix Contact
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | DIN Rail Power Supply | |
| Series | TRIO POWER | |
| Sub Type | Power Supply | |
| Maximum Output Voltage | 24V | |
| Number of Outputs | 1 | |
| Input Voltage Type | DC | |
| Power | 480W | |
| Output Current | 20A | |
| IP Rating | IP20 | |
| Remote signal DC-OK | Yes | |
| Output Voltage Type | DC | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Width | 60mm | |
| Height | 135mm | |
| Depth | 132cm | |
| Standards/Approvals | EN 61000-4-11, SEMI F47, IEC 61558-2-16, IEC 61010-2-201 (SELV), IEC 61010-2-201 (PELV), IEC 61010-2-201, IEC 61010-1 (SELV), IEC 61010-1, EN 61000-6-4, EN 61000-6-3, EN 61000-6-2, EN 61000-6-1, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-3-3, EN 61000-3-2 (Class A), EN 61000-3-2, EN 55016, EN 50178/VDE 0160 (PELV), DIN EN 61558-2-16 | |
| Maximum Input Voltage | 500V dc | |
| Efficiency | 94.5% | |
| Minimum Input Voltage | 400V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type DIN Rail Power Supply | ||
Series TRIO POWER | ||
Sub Type Power Supply | ||
Maximum Output Voltage 24V | ||
Number of Outputs 1 | ||
Input Voltage Type DC | ||
Power 480W | ||
Output Current 20A | ||
IP Rating IP20 | ||
Remote signal DC-OK Yes | ||
Output Voltage Type DC | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Width 60mm | ||
Height 135mm | ||
Depth 132cm | ||
Standards/Approvals EN 61000-4-11, SEMI F47, IEC 61558-2-16, IEC 61010-2-201 (SELV), IEC 61010-2-201 (PELV), IEC 61010-2-201, IEC 61010-1 (SELV), IEC 61010-1, EN 61000-6-4, EN 61000-6-3, EN 61000-6-2, EN 61000-6-1, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-3-3, EN 61000-3-2 (Class A), EN 61000-3-2, EN 55016, EN 50178/VDE 0160 (PELV), DIN EN 61558-2-16 | ||
Maximum Input Voltage 500V dc | ||
Efficiency 94.5% | ||
Minimum Input Voltage 400V | ||
- COO (Country of Origin):
- CN
