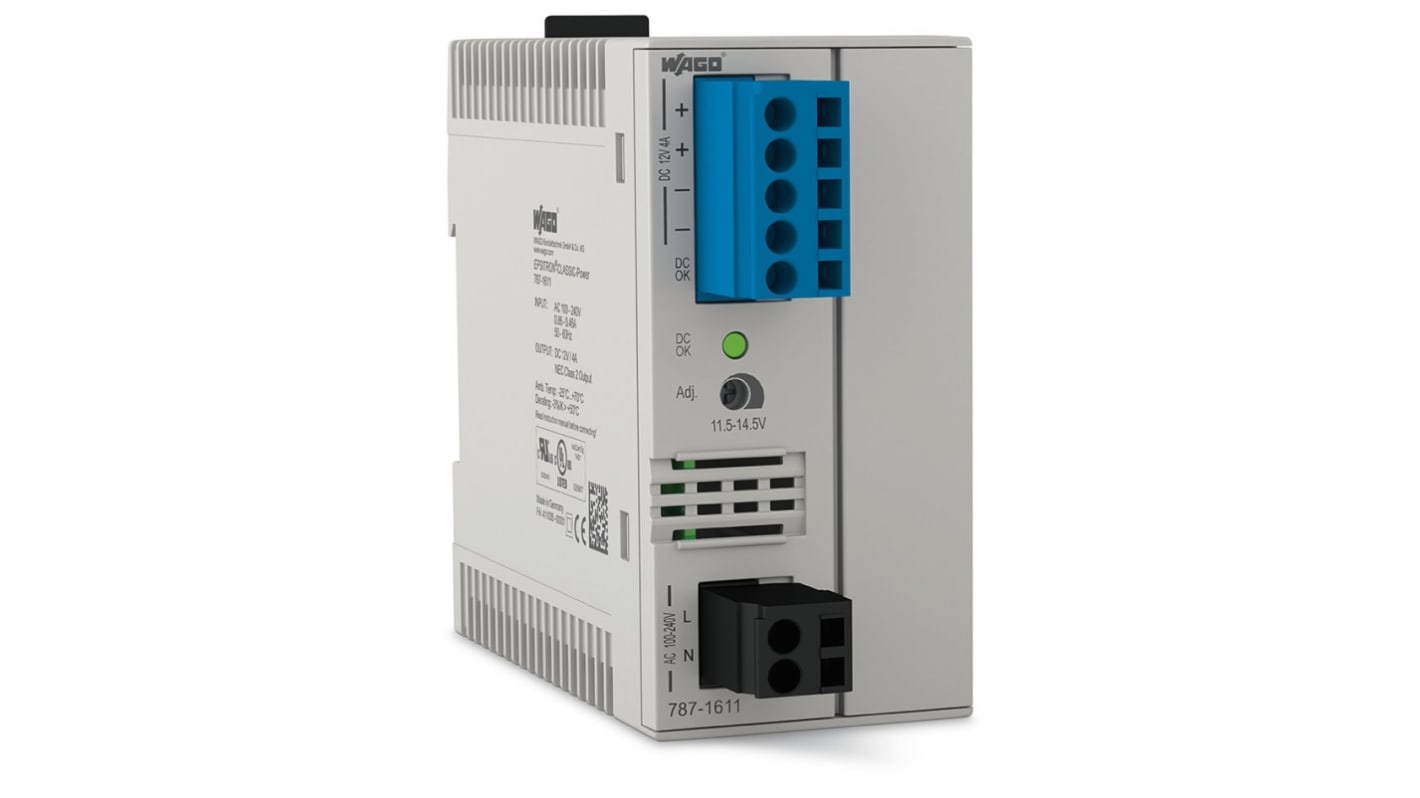

WAGO 787 Switched Mode Power Supply DIN Rail Power Supply 264V ac AC Input 12V dc, 4 A Output DC 48 W
- RS Stock No.:
- 279-4075
- Mfr. Part No.:
- 787-1611
- Brand:
- WAGO
Subtotal (1 unit)*
£114.41
(exc. VAT)
£137.29
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £114.41 |
*price indicative
- RS Stock No.:
- 279-4075
- Mfr. Part No.:
- 787-1611
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | DIN Rail Power Supply | |
| Series | 787 | |
| Sub Type | Switched Mode Power Supply | |
| Maximum Output Voltage | 12V dc | |
| Electrical Phase | 1 | |
| Input Voltage Type | AC | |
| Number of Outputs | 1 | |
| Power | 48W | |
| Output Current | 4A | |
| IP Rating | IP20 | |
| Output Voltage Type | DC | |
| Remote signal DC-OK | Yes | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 45mm | |
| Depth | 107.5mm | |
| Standards/Approvals | UL 508, DNV, EN 60335-1, UL 60950-1, EN 61010-1, EN 61010-2-201, EN 61204-3, SEMI F47 | |
| Height | 90mm | |
| Hazardous Area Certification | No | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 86% | |
| Minimum Input Voltage | 230V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type DIN Rail Power Supply | ||
Series 787 | ||
Sub Type Switched Mode Power Supply | ||
Maximum Output Voltage 12V dc | ||
Electrical Phase 1 | ||
Input Voltage Type AC | ||
Number of Outputs 1 | ||
Power 48W | ||
Output Current 4A | ||
IP Rating IP20 | ||
Output Voltage Type DC | ||
Remote signal DC-OK Yes | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Width 45mm | ||
Depth 107.5mm | ||
Standards/Approvals UL 508, DNV, EN 60335-1, UL 60950-1, EN 61010-1, EN 61010-2-201, EN 61204-3, SEMI F47 | ||
Height 90mm | ||
Hazardous Area Certification No | ||
Maximum Input Voltage 264V ac | ||
Efficiency 86% | ||
Minimum Input Voltage 230V | ||
- COO (Country of Origin):
- DE
The WAGO switched mode power supply is suitable for both parallel and series operation. It can also provides natural convection cooling when horizontally mounted.
Mounting type DIN 35 rail
RoHS compliant
