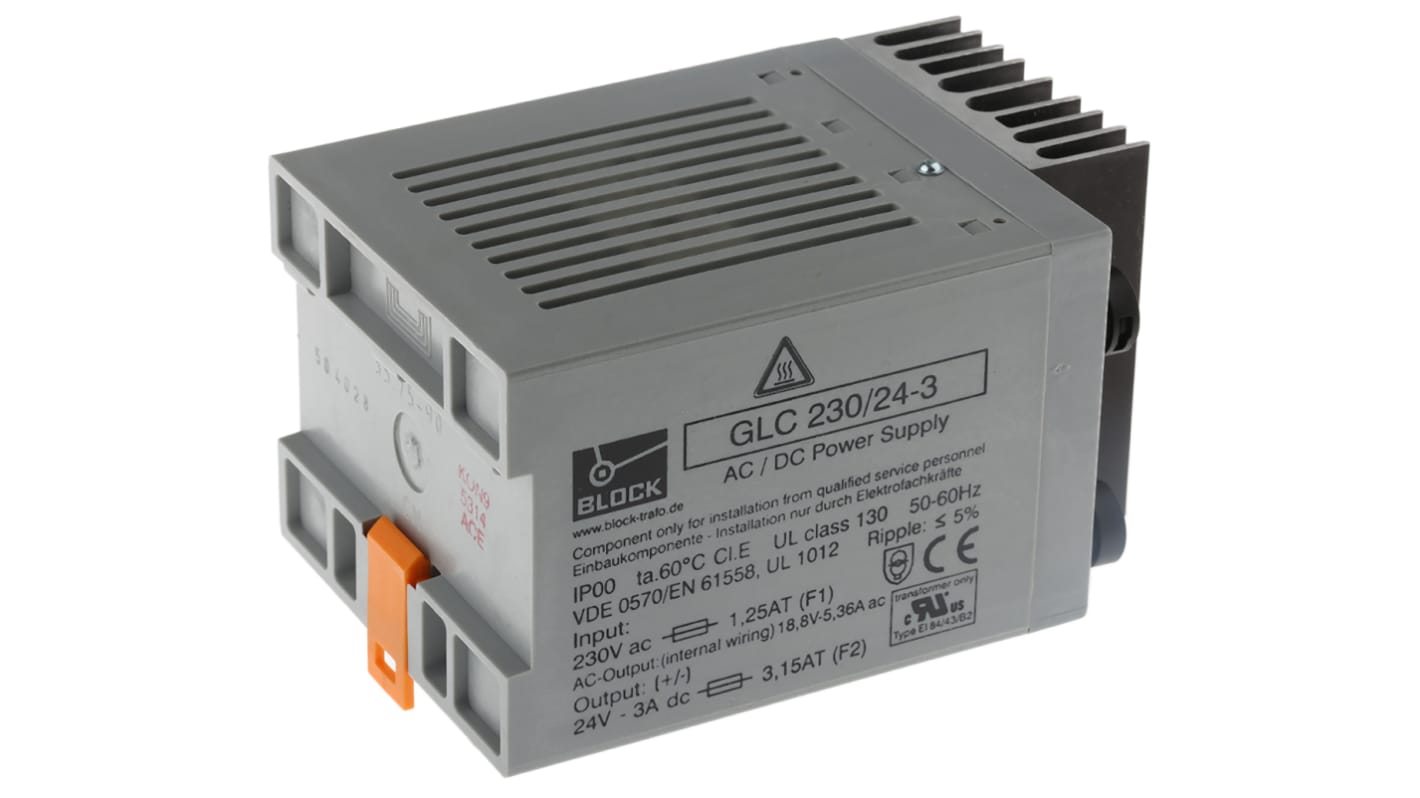

Block GLC Linear DIN Rail Power Supply, 230V ac ac Input, 24V dc dc Output, 3A Output, 72W
- RS Stock No.:
- 257-4165
- Mfr. Part No.:
- GLC 230/24-3
- Brand:
- Block
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 257-4165
- Mfr. Part No.:
- GLC 230/24-3
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Series | GLC | |
| Type | Linear | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| AC or DC Input Voltage | ac | |
| Input Voltage | 230V ac | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 24V dc | |
| Output Current | 3A | |
| Dimensions | 138 x 90 x 75mm | |
| Width | 90mm | |
| Height | 138mm | |
| Depth | 75mm | |
| Maximum Temperature | +60°C | |
| Mounting Type | DIN Rail Mount | |
| Ripple And Noise | ±5% | |
| Output Voltage Adjustment Range | 24.0 to 24.0V | |
| Load Regulation | ±25% | |
| Efficiency | 80.0% | |
Select all | ||
|---|---|---|
Brand Block | ||
Series GLC | ||
Type Linear | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 230V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 3A | ||
Dimensions 138 x 90 x 75mm | ||
Width 90mm | ||
Height 138mm | ||
Depth 75mm | ||
Maximum Temperature +60°C | ||
Mounting Type DIN Rail Mount | ||
Ripple And Noise ±5% | ||
Output Voltage Adjustment Range 24.0 to 24.0V | ||
Load Regulation ±25% | ||
Efficiency 80.0% | ||
- COO (Country of Origin):
- DE
22 to 220W Linear, Unregulated GLC Series
230Vac input 24Vdc (nom) output safety isolating transformer to VDE0551, EN60742
4kV input/output flash tested
Finger safe easy accessible screw terminals
Double screw terminals on the output
Input and output fuse protection
LED output voltage indicator
Parallelable (with same type)
Electrolytic capacitor in the output circuit
Efficiency 80% typical
4kV input/output flash tested
Finger safe easy accessible screw terminals
Double screw terminals on the output
Input and output fuse protection
LED output voltage indicator
Parallelable (with same type)
Electrolytic capacitor in the output circuit
Efficiency 80% typical
Note
Load regulation quoted is typical value (unregulated).
Standards
IEC, EN, VDE, UL
