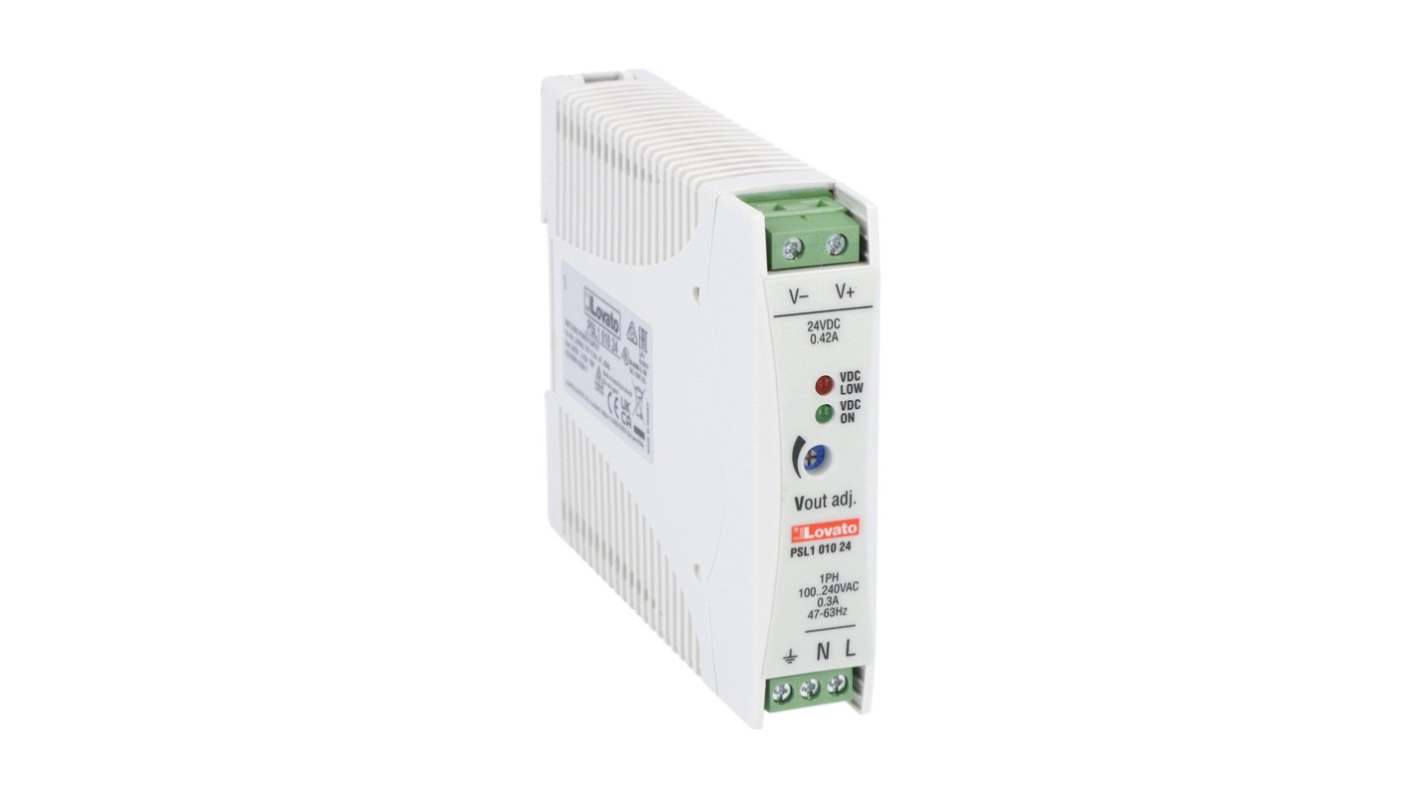

Lovato PSL DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 420mA Output, 10W
- RS Stock No.:
- 248-3655
- Mfr. Part No.:
- PSL101024
- Brand:
- Lovato
Subtotal (1 unit)*
£70.17
(exc. VAT)
£84.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £70.17 |
*price indicative
- RS Stock No.:
- 248-3655
- Mfr. Part No.:
- PSL101024
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lovato | |
Series | PSL | |
DC Input Voltage | 120 → 375V dc | |
Type | DIN Rail Power Supply | |
AC Input Voltage | 90 → 264V ac | |
Electrical Phase | Single Phase | |
AC or DC Input Voltage | ac | |
Input Voltage | 100 → 240V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 420mA | |
Dimensions | 22.5 x 90 x 115mm | |
Depth | 115mm | |
Width | 22.5mm | |
Height | 90mm | |
Standards Met | EN 62368-1 | |
Maximum Temperature | +71°C | |
Mounting Type | DIN Rail Mount | |
Efficiency | 76% | |
Minimum Temperature | -20°C | |
Ripple And Noise | 50mV | |
Select all | ||
---|---|---|
Brand Lovato | ||
Series PSL | ||
DC Input Voltage 120 → 375V dc | ||
Type DIN Rail Power Supply | ||
AC Input Voltage 90 → 264V ac | ||
Electrical Phase Single Phase | ||
AC or DC Input Voltage ac | ||
Input Voltage 100 → 240V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 420mA | ||
Dimensions 22.5 x 90 x 115mm | ||
Depth 115mm | ||
Width 22.5mm | ||
Height 90mm | ||
Standards Met EN 62368-1 | ||
Maximum Temperature +71°C | ||
Mounting Type DIN Rail Mount | ||
Efficiency 76% | ||
Minimum Temperature -20°C | ||
Ripple And Noise 50mV | ||
- COO (Country of Origin):
- TW
Lovato PSL Series DIN Rail Power Supply, 420mA Output Current, 10W Power Rating - PSL101024
This DIN rail power supply from Lovato provides efficient energy conversion. It operates on single-phase power, transforming AC input voltages from 90 to 264V into a steady 24V DC output. With dimensions of 22.5x90x115mm, it is well-suited for various industrial installations and complies with EN 62368-1 standards.
Features & Benefits
• Outputs 0.42A with a power rating of 10W
• High efficiency of 76%, reducing energy wastage
• Compact design for installation in confined spaces
• Minimal ripple and noise output of 50mV for stable performance
• High efficiency of 76%, reducing energy wastage
• Compact design for installation in confined spaces
• Minimal ripple and noise output of 50mV for stable performance
Applications
• Powers control systems in automation
• Supplies energy to sensors and actuators
• Suitable for electrical panels and enclosures
• Utilised in robotics and manufacturing equipment
• Supplies energy to sensors and actuators
• Suitable for electrical panels and enclosures
• Utilised in robotics and manufacturing equipment
Can it operate on a wide range of input voltages?
Yes, it can handle input voltages from 90V to 264V AC.
Will it perform well in extreme temperatures?
It operates effectively between -20°C and +71°C.
What is the maximum insulation voltage for this power supply?
The maximum insulation voltage is 3000V AC.
Can the output voltage be adjusted?
Yes, it features a potentiometer for voltage trimming.
