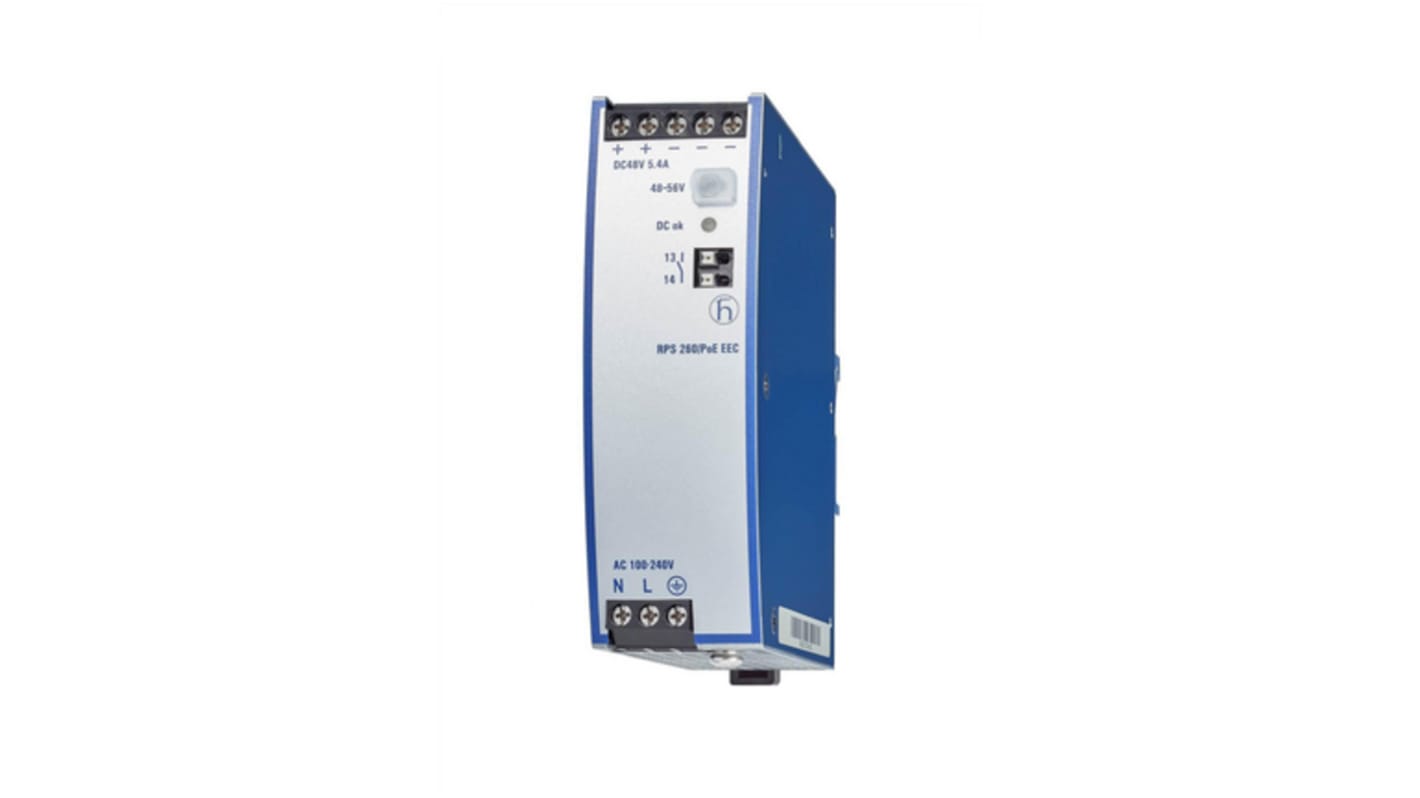

Hirschmann RPS 260 DIN Rail Power Supply, 100→240V ac ac Input, 48V dc dc Output, 5.42A Output, 260W
- RS Stock No.:
- 245-6929
- Mfr. Part No.:
- RPS 260/PoE EEC
- Brand:
- Hirschmann
Subtotal (1 unit)*
£848.70
(exc. VAT)
£1,018.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £848.70 |
*price indicative
- RS Stock No.:
- 245-6929
- Mfr. Part No.:
- RPS 260/PoE EEC
- Brand:
- Hirschmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirschmann | |
Series | RPS 260 | |
AC or DC Input Voltage | ac | |
Input Voltage | 100→240V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 48V dc | |
Output Current | 5.42A | |
Depth | 117mm | |
Height | 124mm | |
Width | 39mm | |
Standards Met | CE | |
Minimum Temperature | -25°C | |
Mounting Type | DIN Rail Mount | |
MTBF | 509000h | |
Maximum Temperature | +70°C | |
Output Voltage Adjustment Range | 48 → 56V | |
Select all | ||
---|---|---|
Brand Hirschmann | ||
Series RPS 260 | ||
AC or DC Input Voltage ac | ||
Input Voltage 100→240V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 48V dc | ||
Output Current 5.42A | ||
Depth 117mm | ||
Height 124mm | ||
Width 39mm | ||
Standards Met CE | ||
Minimum Temperature -25°C | ||
Mounting Type DIN Rail Mount | ||
MTBF 509000h | ||
Maximum Temperature +70°C | ||
Output Voltage Adjustment Range 48 → 56V | ||
- COO (Country of Origin):
- CZ
Belden Hirschmann DIN Rail Power Supply, 100 to 240V AC Input, 124 (H) x 39mm (W) - RPS 260 Series - RPS 260/PoE EEC
Regulate the electrical energy delivered to your devices using this DIN rail power supply from Belden Hirschmann. It converts irregular input voltage supply to a safe output level for your equipment. Use it to adjust input voltages between 100V and 240V AC to a stable output between 48V and 56V DC. Thanks to a power rating of 260W, this is a suitable option for heavy-duty systems.
Features & Benefits
• DIN rail mounting for quick installation
• Resists shock and vibration in demanding conditions
• IP20 rating indicates it's touch-proof and protected against objects over 12mm
• Resists shock and vibration in demanding conditions
• IP20 rating indicates it's touch-proof and protected against objects over 12mm
Applications
• Security systems
• Alarm networks
• Control cabinets
• Alarm networks
• Control cabinets
How do I monitor this DIN rail power supply?
This power supply comes with LED indicators that let you easily monitor its operating status. For versatility, the built-in relay contact also responds to input electrical energy to activate the connected sensors and actuators.
