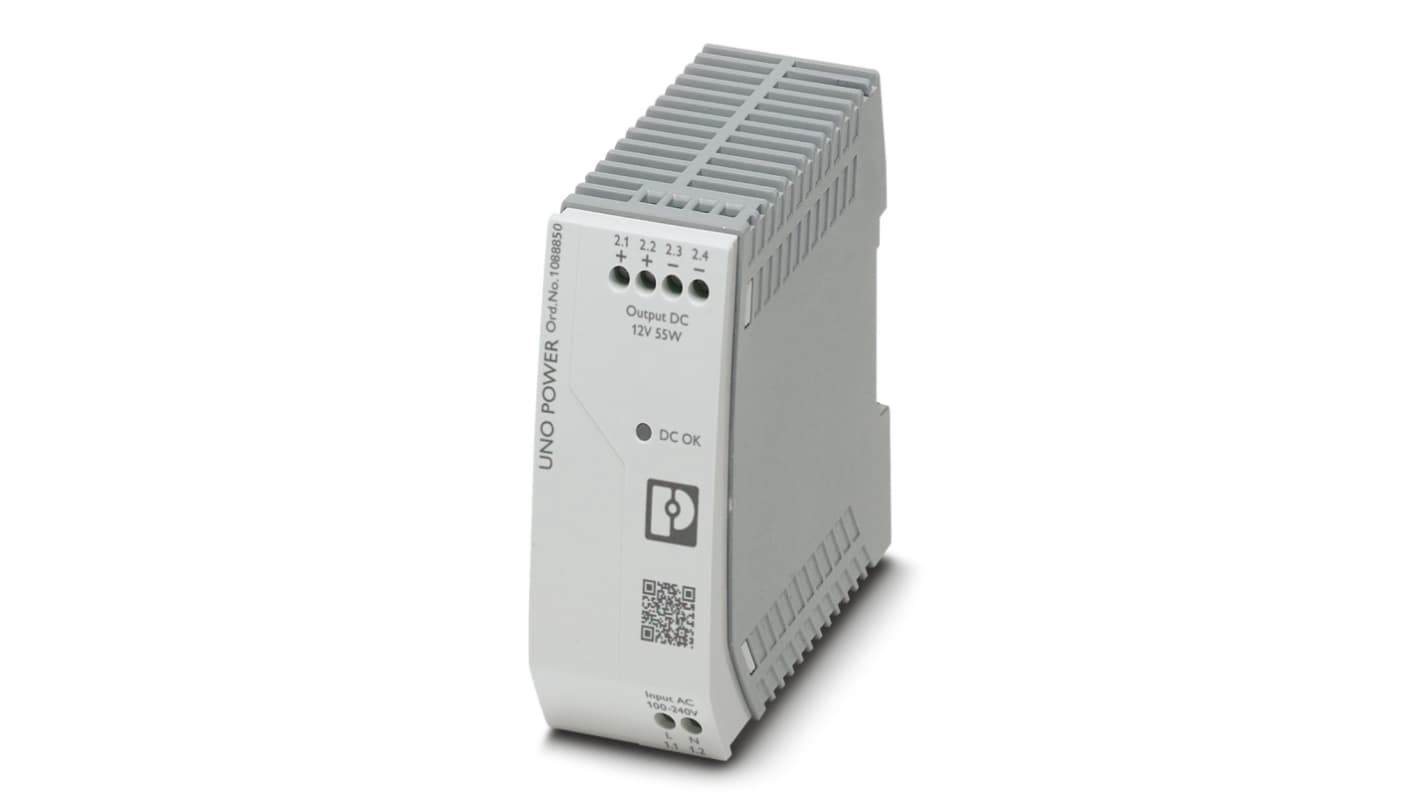

Phoenix Contact UNO POWER Switched Mode Power Supply DIN Rail Power Supply 264V ac AC Input 12V dc, 4.6 A Output DC 55 W
- RS Stock No.:
- 239-3637
- Mfr. Part No.:
- 1088850
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£78.10
(exc. VAT)
£93.72
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.10 |
*price indicative
- RS Stock No.:
- 239-3637
- Mfr. Part No.:
- 1088850
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | DIN Rail Power Supply | |
| Series | UNO POWER | |
| Sub Type | Switched Mode Power Supply | |
| Maximum Output Voltage | 12V dc | |
| Electrical Phase | 1 | |
| Input Voltage Type | AC | |
| Power | 55W | |
| Output Current | 4.6A | |
| IP Rating | IP20 | |
| Output Voltage Type | DC | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 90mm | |
| Depth | 84mm | |
| Width | 35mm | |
| Standards/Approvals | EN 50178/VDE 0160, EN 61000-3-2, EN 61000-4-11, IEC 62368-1 | |
| Hazardous Area Certification | B, C, Class I, Division 2, D T4A, Groups A | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 85V ac | |
| Efficiency | 87% | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type DIN Rail Power Supply | ||
Series UNO POWER | ||
Sub Type Switched Mode Power Supply | ||
Maximum Output Voltage 12V dc | ||
Electrical Phase 1 | ||
Input Voltage Type AC | ||
Power 55W | ||
Output Current 4.6A | ||
IP Rating IP20 | ||
Output Voltage Type DC | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Height 90mm | ||
Depth 84mm | ||
Width 35mm | ||
Standards/Approvals EN 50178/VDE 0160, EN 61000-3-2, EN 61000-4-11, IEC 62368-1 | ||
Hazardous Area Certification B, C, Class I, Division 2, D T4A, Groups A | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 85V ac | ||
Efficiency 87% | ||
- COO (Country of Origin):
- DE
The Phoenix Contact power supply unit, the UNO POWER supplies with basic functionality. Thanks to their high power density, compact UNO POWER supplies are the ideal solution for loads up to 240 W, particularly in compact control boxes. The power supply units are available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency. Primary-switched UNO POWER supply for DIN rail mounting, input is 1-phase and output is 12 V DC/55 W.
Flexible mounting by simply snapping onto the DIN rail
More space in the control cabinet with up to 20 % higher power density
Maximum energy efficiency, over 90 % efficiency and extremely low idling losses under 0.3 W
Outdoor installation, thanks to the wide temperature range from -25°C to +70°C
