ABB CP-D Switched Mode DIN Rail Power Supply 240V ac AC Input 24V dc, 4.2 A Output DC 100 W
- RS Stock No.:
- 231-9526
- Mfr. Part No.:
- 1SVR427045R0400 CP-D 24VDC/4.2A
- Brand:
- ABB
Subtotal (1 unit)*
£107.26
(exc. VAT)
£128.71
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £107.26 |
*price indicative
- RS Stock No.:
- 231-9526
- Mfr. Part No.:
- 1SVR427045R0400 CP-D 24VDC/4.2A
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Series | CP-D | |
| Product Type | DIN Rail Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Sub Type | Switched Mode | |
| Electrical Phase | 1 | |
| Input Voltage Type | AC | |
| Number of Outputs | 5 | |
| Power | 100W | |
| Output Current | 4.2A | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -40°C | |
| Output Voltage Type | DC | |
| Remote signal DC-OK | No | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | NO | |
| Width | 57.5mm | |
| Standards/Approvals | No | |
| Height | 91mm | |
| Depth | 57.5mm | |
| Maximum Input Voltage | 240V ac | |
| Minimum Input Voltage | 100V ac | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Series CP-D | ||
Product Type DIN Rail Power Supply | ||
Maximum Output Voltage 24V dc | ||
Sub Type Switched Mode | ||
Electrical Phase 1 | ||
Input Voltage Type AC | ||
Number of Outputs 5 | ||
Power 100W | ||
Output Current 4.2A | ||
IP Rating IP20 | ||
Minimum Operating Temperature -40°C | ||
Output Voltage Type DC | ||
Remote signal DC-OK No | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification NO | ||
Width 57.5mm | ||
Standards/Approvals No | ||
Height 91mm | ||
Depth 57.5mm | ||
Maximum Input Voltage 240V ac | ||
Minimum Input Voltage 100V ac | ||
- COO (Country of Origin):
- TW

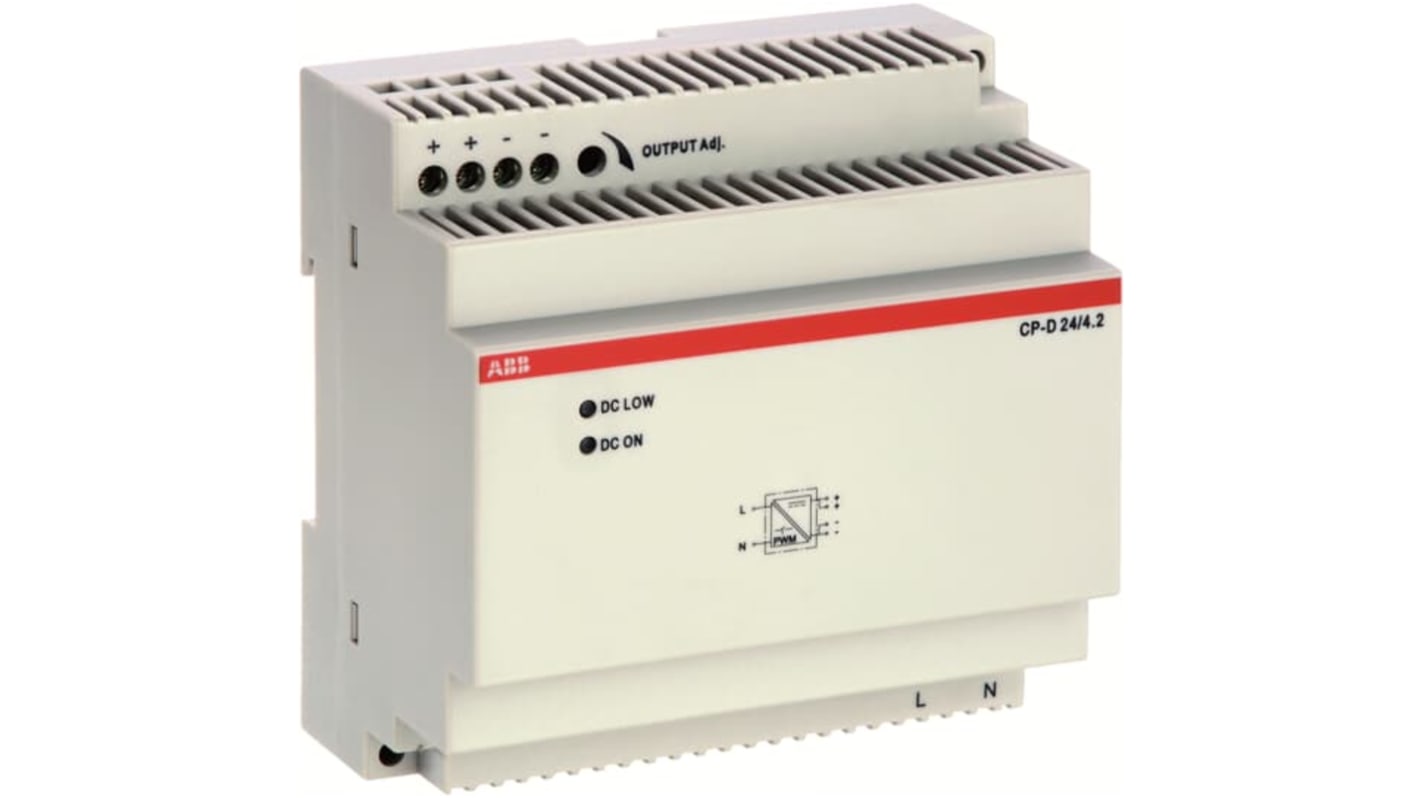

The ABB CP-D series of modular power supply units in MDRC design is ideally suited for installation in distribution panels. It offers output voltages of 24 V DC at output currents of 4.2 A. It has LEDs for the indication of operational states.
High thermal efficiency
Low power and heat dissipation
Hiccup output characteristic
