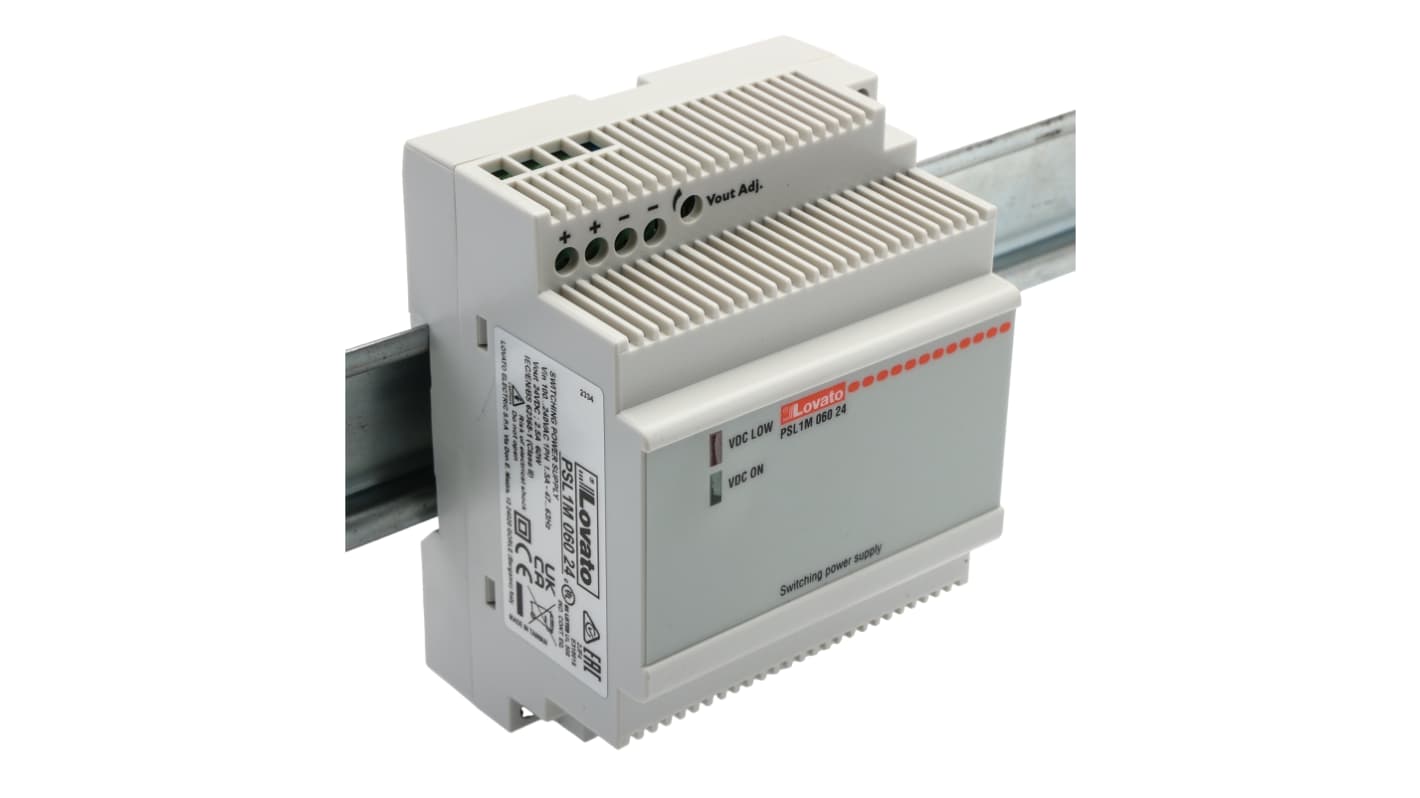

Lovato PSL Switched Mode DIN Rail Power Supply, 240V ac ac Input, 24V dc dc Output, 2.5A Output, 60W
- RS Stock No.:
- 224-7416
- Mfr. Part No.:
- PSL1M06024
- Brand:
- Lovato
Bulk discount available
Subtotal (1 unit)*
£99.38
(exc. VAT)
£119.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £99.38 |
5 - 9 | £96.39 |
10 - 24 | £93.41 |
25 - 49 | £90.45 |
50 + | £87.46 |
*price indicative
- RS Stock No.:
- 224-7416
- Mfr. Part No.:
- PSL1M06024
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lovato | |
Series | PSL | |
AC Input Voltage | 100 → 240V ac | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac | |
Input Voltage | 240V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 2.5A | |
Dimensions | 71 x 96 x 56.2mm | |
Width | 71mm | |
Depth | 56.2mm | |
Height | 96mm | |
Special Features | Overvoltage and Short Circuit Protection | |
Mounting Type | DIN Rail Mount | |
Ripple And Noise | 50mV | |
Efficiency | 86% | |
Minimum Temperature | -40°C | |
Standards Met | IEC/EN 62368-1 | |
Maximum Temperature | '+71°C | |
Select all | ||
---|---|---|
Brand Lovato | ||
Series PSL | ||
AC Input Voltage 100 → 240V ac | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 240V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 2.5A | ||
Dimensions 71 x 96 x 56.2mm | ||
Width 71mm | ||
Depth 56.2mm | ||
Height 96mm | ||
Special Features Overvoltage and Short Circuit Protection | ||
Mounting Type DIN Rail Mount | ||
Ripple And Noise 50mV | ||
Efficiency 86% | ||
Minimum Temperature -40°C | ||
Standards Met IEC/EN 62368-1 | ||
Maximum Temperature '+71°C | ||
- COO (Country of Origin):
- CN
Lovato PSL Series Switching Power Supply, 60W Power Rating, 240V AC Input Voltage - PSL1M06024
This switching power supply is designed to convert AC input voltage into a stable 24V DC output, serving a variety of applications. Its efficiency reduces energy loss, making it a suitable component for automation and electronics.
Features & Benefits
• Converts 100 to 240V AC input to 24V DC output
• Provides an output current of up to 2.5A
• Complies with IEC/EN 62368-1 standards for safety
• Achieves 86% efficiency for effective operation
• Includes overvoltage and short circuit protection for enhanced durability
• Compact design allows for easy DIN rail mounting
• Provides an output current of up to 2.5A
• Complies with IEC/EN 62368-1 standards for safety
• Achieves 86% efficiency for effective operation
• Includes overvoltage and short circuit protection for enhanced durability
• Compact design allows for easy DIN rail mounting
Applications
• Used in control panels for automated machinery
• Powers sensors and relays in electronic systems
• Ideal for industrial equipment requiring 24V DC power
• Employed in telecommunications and data acquisition systems
• Suitable for medical devices needing a stable power supply
• Powers sensors and relays in electronic systems
• Ideal for industrial equipment requiring 24V DC power
• Employed in telecommunications and data acquisition systems
• Suitable for medical devices needing a stable power supply
What type of input voltage is suitable for this power supply?
It accepts an input voltage range of 100 to 240V AC.
How does the product ensure safety during operation?
It features built-in overvoltage and short circuit protection systems.
Can this power supply be mounted in compact spaces?
Yes, its compact design facilitates easy DIN rail mounting.
What is the maximum output current available?
It can provide a continuous output current of 2.5A.
Is it compatible with various electrical phases?
Yes, it operates effectively on a single electrical phase.
