Omron S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480 V ac, 450 → 810 V dc ac Input, 24V dc dc

RS Stock No.:: 215-4172
Mfr. Part No.:: S8VK-T48024-400
Brand:: Omron

Omron S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480 V ac, 450 → 810 V dc ac Input, 24V dc dc

Subtotal (1 unit)*

£372.90

(exc. VAT)

£447.48

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

5 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£372.90

*price indicative

RS Stock No.:: 215-4172
Mfr. Part No.:: S8VK-T48024-400
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Series	S8VK-T
	Type	Switched Mode
	Electrical Phase	3
	Number of Outputs	1
	AC or DC Input Voltage	ac
	Input Voltage	380 → 480 V ac, 450 → 810 V dc
	AC or DC Output Voltage	dc
	Output Voltage	24V dc
	Output Current	20A
	Dimensions	125 x 95 x 140mm
	Height	125mm
	Width	95mm
	Depth	140mm
	Mounting Type	DIN Rail Mount
	Efficiency	91%
	Minimum Temperature	-40°C
	Standards Met	CE
	Maximum Temperature	+70°C
	Special Features	Fast Installation, Thanks to easy DIN Rail Mounting
	Load Regulation	1.5%
	MTBF	230000h
	Ripple And Noise	470mV Pk-Pk
	Output Voltage Adjustment Range	-10 → +15%

	Select all
	Brand Omron
	Series S8VK-T
	Type Switched Mode
	Electrical Phase 3
	Number of Outputs 1
	AC or DC Input Voltage ac
	Input Voltage 380 → 480 V ac, 450 → 810 V dc
	AC or DC Output Voltage dc
	Output Voltage 24V dc
	Output Current 20A
	Dimensions 125 x 95 x 140mm
	Height 125mm
	Width 95mm
	Depth 140mm
	Mounting Type DIN Rail Mount
	Efficiency 91%
	Minimum Temperature -40°C
	Standards Met CE
	Maximum Temperature +70°C
	Special Features Fast Installation, Thanks to easy DIN Rail Mounting
	Load Regulation 1.5%
	MTBF 230000h
	Ripple And Noise 470mV Pk-Pk
	Output Voltage Adjustment Range -10 → +15%

COO (Country of Origin):: CN

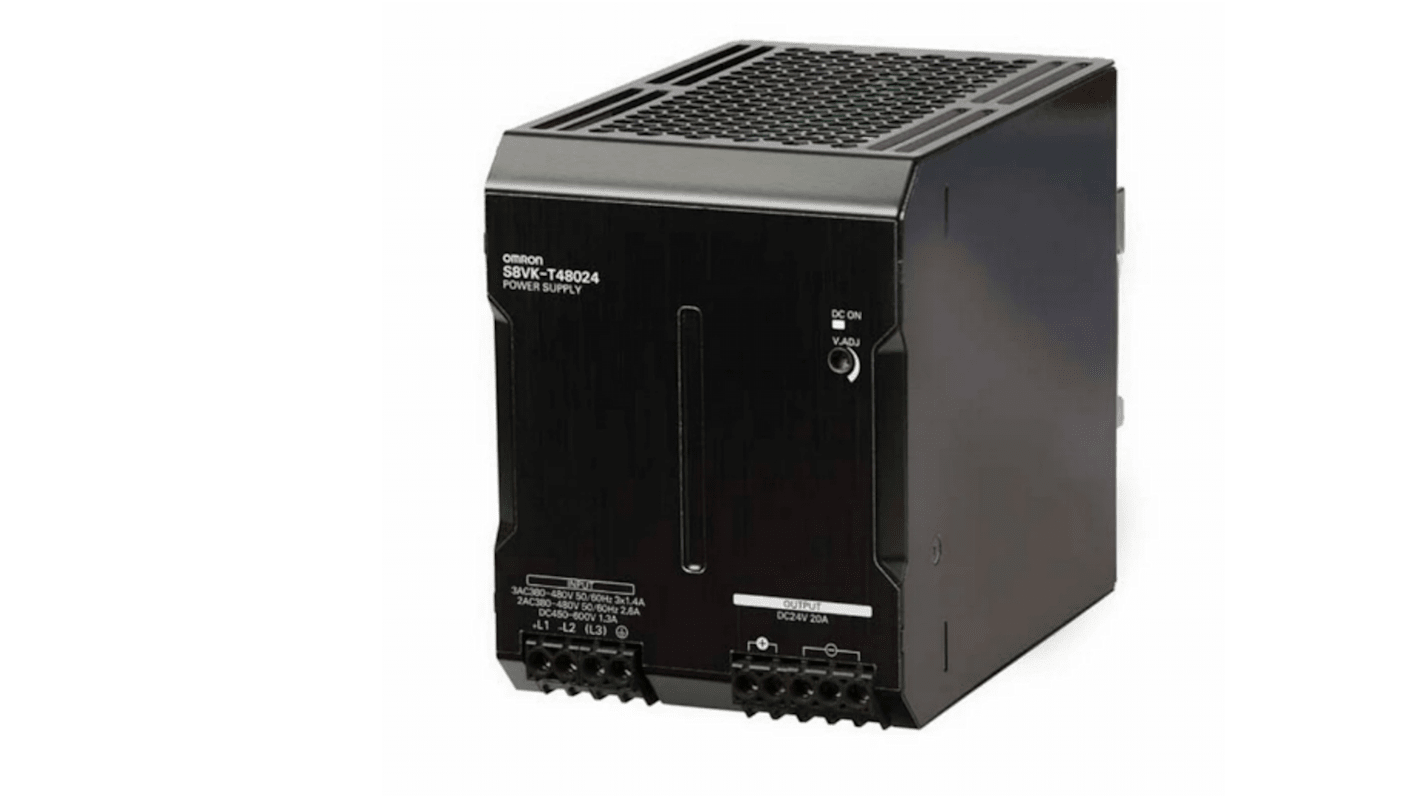

Omron S8VK-T Series Din Rail Power Supply, 24V Output Voltage, 20A Output Current - S8VK-T48024-400

This DIN Rail power supply is a highly efficient solution for industrial applications. Designed for easy mounting on DIN rails, it offers a compact and robust 125 x 95 x 140 mm case. With a 24V DC output and a maximum power rating of 480W, it efficiently converts AC or DC input voltage ranging from 380 to 480 V AC and 450 to 810 V DC.

Features & Benefits

• High efficiency of 91%, optimising energy usage
• Supports a wide input range for versatile requirements
• Fast installation with easy DIN rail mounting
• Automatic reset overload protection to safeguard equipment
• Adjustable output voltage for flexible power supply solutions

Applications

• Used for powering automation equipment in factories
• Ideal for use in control panels for electrical systems
• Support for various electronic devices in industrial settings
• Utilised in systems requiring reliable DC voltage regulation
• Suitable for harsh environments with high efficiency demands

What input voltages can be used with this power supply?

It can accept input voltages ranging from 380 to 480 V AC or 450 to 810 V DC, making it suitable for global applications.

How does the overload protection function work?

The device automatically resets when the output current exceeds 121% of the rated current, ensuring the load is protected from damage.

What is the expected lifespan of this power supply?

Its Mean Time Between Failures (MTBF) is approximately 230,000 hours, reflecting reliability in demanding operational environments.

Can this power supply operate in extreme temperatures?

Yes, it is designed to function efficiently between -40°C and +70°C, making it reliable in both cold and hot conditions.

Is installation straightforward for non-experienced users?

Yes, the easy DIN rail mounting feature allows quick installation without extensive technical knowledge.
