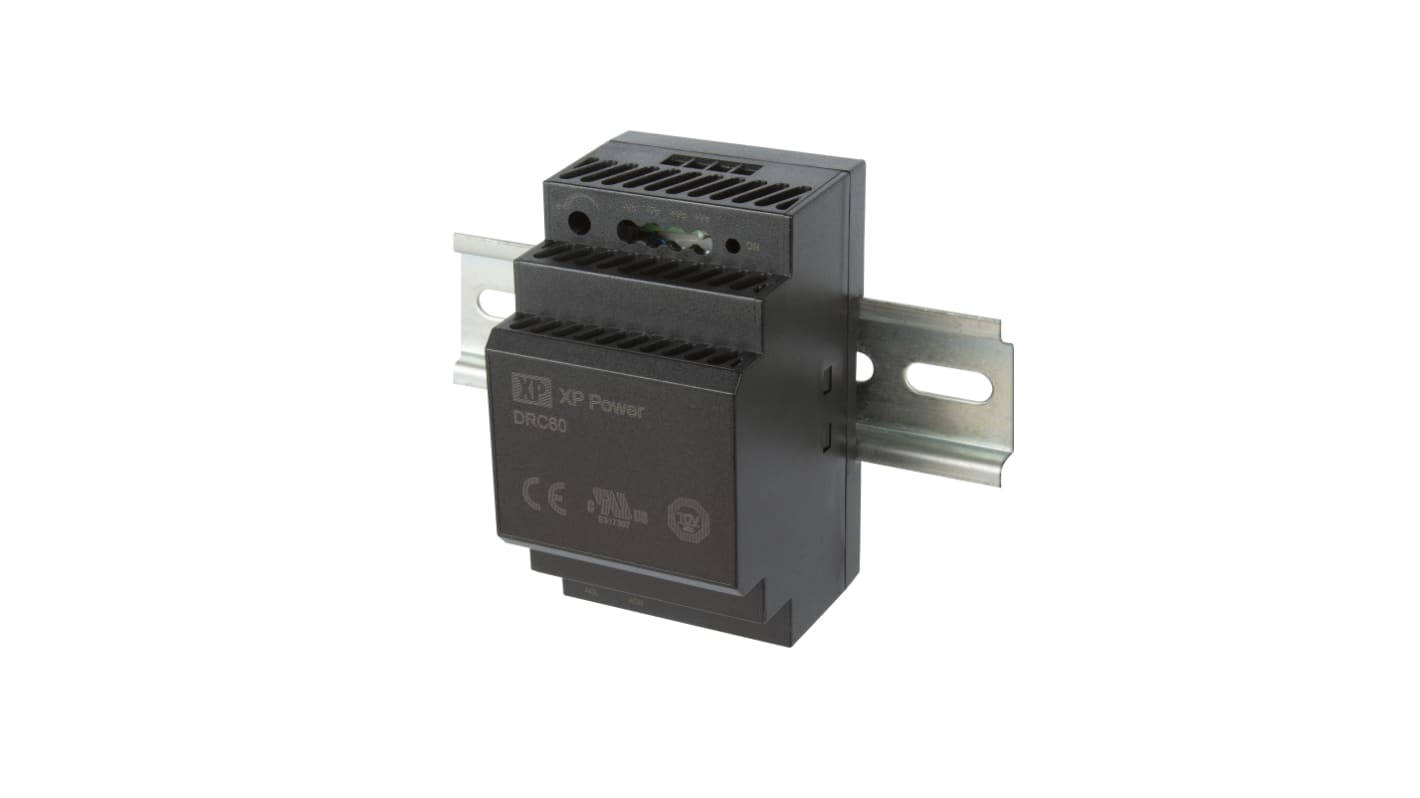

XP Power DRC60 Switched Mode DIN Rail Power Supply 370 V dc, 264V ac AC/DC Input 5V dc, 6.5 A Output DC 33 W
- RS Stock No.:
- 212-4970
- Mfr. Part No.:
- DRC60US05
- Brand:
- XP Power
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 212-4970
- Mfr. Part No.:
- DRC60US05
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Series | DRC60 | |
| Product Type | DIN Rail Power Supply | |
| Maximum Output Voltage | 5V dc | |
| Sub Type | Switched Mode | |
| Electrical Phase | 1 | |
| Input Voltage Type | AC/DC | |
| Number of Outputs | 5 | |
| Power | 33W | |
| Output Current | 6.5A | |
| Minimum Operating Temperature | -30°C | |
| Output Voltage Type | DC | |
| Remote signal DC-OK | No | |
| Maximum Operating Temperature | 70°C | |
| Height | 92.6mm | |
| Hazardous Area Certification | NO | |
| Width | 52mm | |
| Standards/Approvals | No | |
| Depth | 58mm | |
| Maximum Input Voltage | 370, 264V dc | |
| Minimum Input Voltage | 85V ac | |
| Efficiency | 84% | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Series DRC60 | ||
Product Type DIN Rail Power Supply | ||
Maximum Output Voltage 5V dc | ||
Sub Type Switched Mode | ||
Electrical Phase 1 | ||
Input Voltage Type AC/DC | ||
Number of Outputs 5 | ||
Power 33W | ||
Output Current 6.5A | ||
Minimum Operating Temperature -30°C | ||
Output Voltage Type DC | ||
Remote signal DC-OK No | ||
Maximum Operating Temperature 70°C | ||
Height 92.6mm | ||
Hazardous Area Certification NO | ||
Width 52mm | ||
Standards/Approvals No | ||
Depth 58mm | ||
Maximum Input Voltage 370, 264V dc | ||
Minimum Input Voltage 85V ac | ||
Efficiency 84% | ||
- COO (Country of Origin):
- CN
The XP Power DRC range of compact lightweight DIN rail mount power supplies is a convenient and cost effective power conversion solution for many industrial and commercial applications. With international safety certification, an industrial temperature range and class B emission compliance, the DRC series also features a DC “on” LED, wide output voltage adjustment range and alternative DC input range.
DC ’ON’ LED indicator
-30°C to +70°C operating temperature
Full power to +45C
3 year warranty
