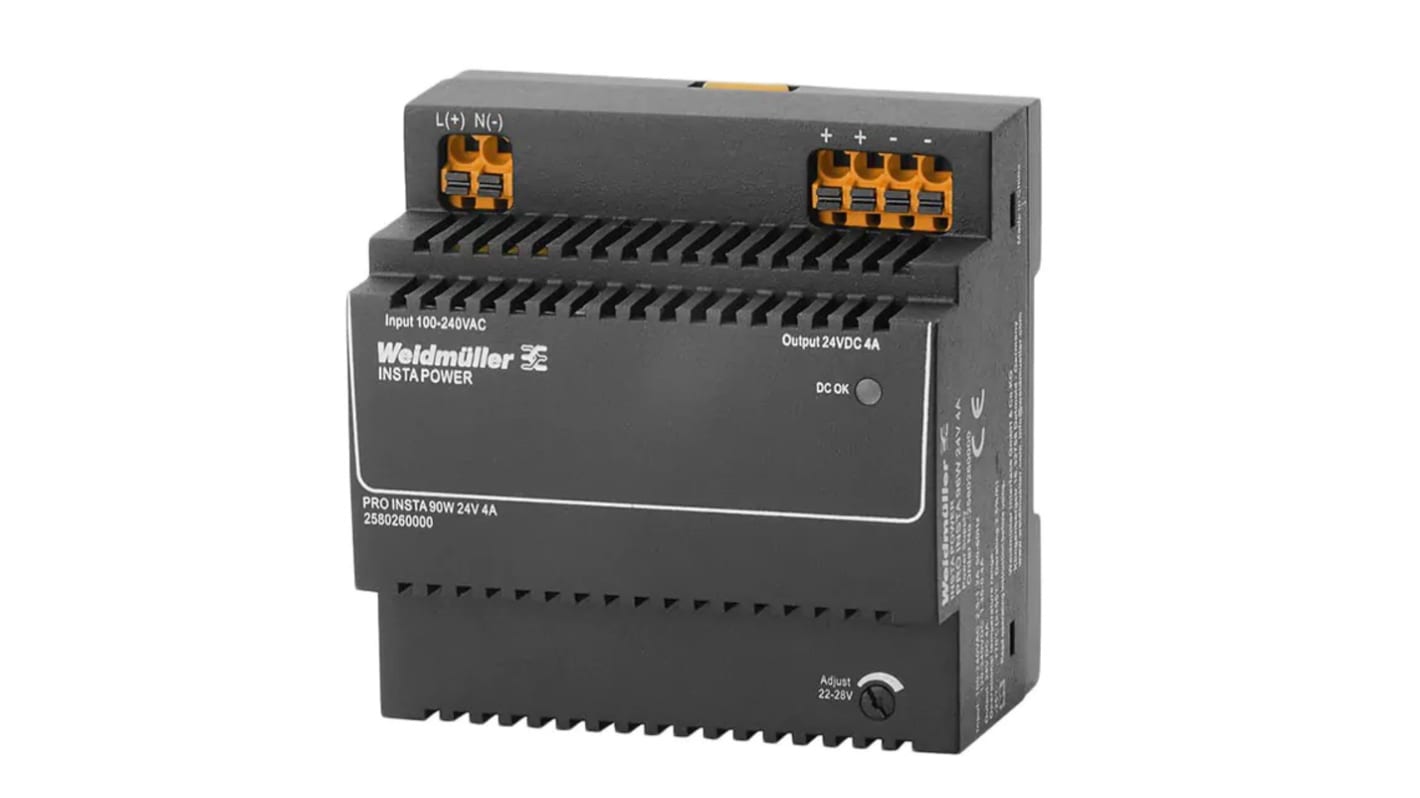

Weidmuller PRO INSTA Switched Mode DIN Rail Power Supply, 120 → 240 V ac / 120 → 340V dc ac, dc Input,
- RS Stock No.:
- 210-5798
- Mfr. Part No.:
- 2580260000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£99.40
(exc. VAT)
£119.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £99.40 |
*price indicative
- RS Stock No.:
- 210-5798
- Mfr. Part No.:
- 2580260000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Series | PRO INSTA | |
Type | Switched Mode | |
AC or DC Input Voltage | ac, dc | |
Input Voltage | 120 → 240 V ac / 120 → 340V dc | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 4A | |
Width | 90mm | |
Depth | 60mm | |
Height | 90mm | |
Mounting Type | DIN Rail Mount | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Series PRO INSTA | ||
Type Switched Mode | ||
AC or DC Input Voltage ac, dc | ||
Input Voltage 120 → 240 V ac / 120 → 340V dc | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 4A | ||
Width 90mm | ||
Depth 60mm | ||
Height 90mm | ||
Mounting Type DIN Rail Mount | ||
- COO (Country of Origin):
- VN
The Weidmüller Insta Power series single phase switching power supplies have 4 A output current at 24 V dc output voltage and are characterised by a wide power spectrum, compact design and good value for money. They are suitable for temperature ranges from -25°C to +70°C and have international approvals and a wide voltage input range. This makes them suitable for a wide range of applications which also includes signal and telecommunications systems as well as automation systems with a low power requirement up to 96 Watt.
Weidmüller Insta Power DIN Rail Power Supply
Protection degree IP20
RoHS compliant
High efficiency up to 87 %
Ripple factor and noise is less than 50mV
Shock resistance IEC 60068-2-27
Green colour LED indicator for signalling
RoHS compliant
High efficiency up to 87 %
Ripple factor and noise is less than 50mV
Shock resistance IEC 60068-2-27
Green colour LED indicator for signalling
