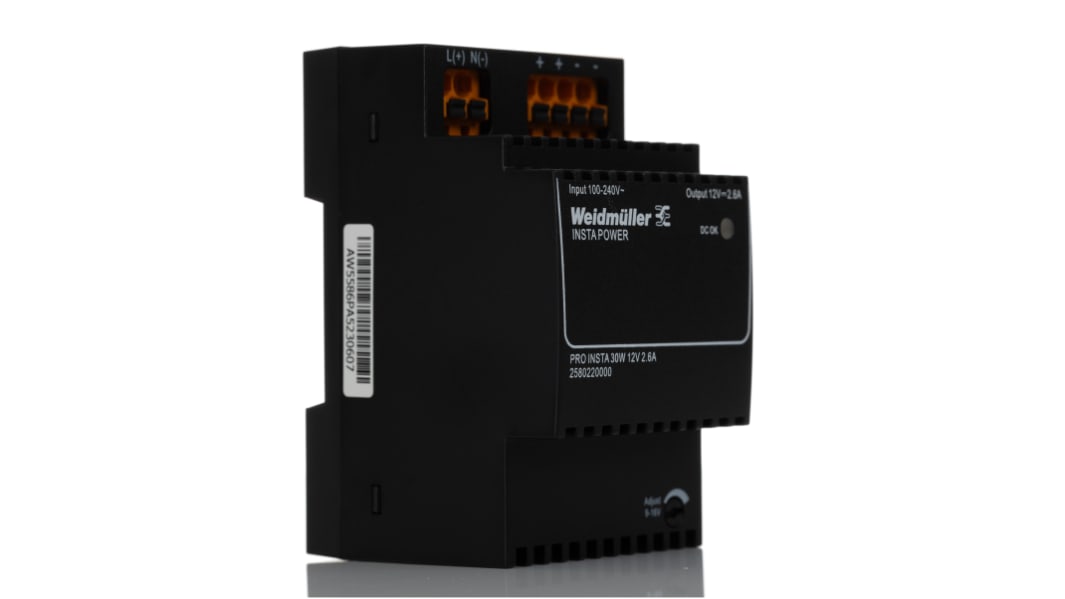

Weidmuller PRO INSTA Switched Mode DIN Rail Power Supply, 120 → 240 V ac / 120 → 340V dc ac, dc Input,
- RS Stock No.:
- 210-5793
- Mfr. Part No.:
- 2580220000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£51.26
(exc. VAT)
£61.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 8 unit(s) shipping from 27 October 2025
- Plus 2 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £51.26 |
*price indicative
- RS Stock No.:
- 210-5793
- Mfr. Part No.:
- 2580220000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Series | PRO INSTA | |
| Type | Switched Mode | |
| AC or DC Input Voltage | ac, dc | |
| Input Voltage | 120 → 240 V ac / 120 → 340V dc | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 12V dc | |
| Output Current | 2.6A | |
| Height | 90mm | |
| Width | 54mm | |
| Depth | 60mm | |
| Mounting Type | DIN Rail Mount | |
| Output Voltage Adjustment Range | 9 → 16V | |
| MTBF | 750h | |
| Efficiency | 85% | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Series PRO INSTA | ||
Type Switched Mode | ||
AC or DC Input Voltage ac, dc | ||
Input Voltage 120 → 240 V ac / 120 → 340V dc | ||
AC or DC Output Voltage dc | ||
Output Voltage 12V dc | ||
Output Current 2.6A | ||
Height 90mm | ||
Width 54mm | ||
Depth 60mm | ||
Mounting Type DIN Rail Mount | ||
Output Voltage Adjustment Range 9 → 16V | ||
MTBF 750h | ||
Efficiency 85% | ||
Minimum Temperature -25°C | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- CN
Weidmuller DIN Rail Power Supply, 192g Weight, 24 to 12AWG Wire Size Range - PRO INSTA Series - 2580220000
Eager to dial down your voltage and dial up your productivity? This DIN rail power supply from Weidmuller converts an input voltage range between 85 and 264V AC into a steady output voltage of 12V DC. The plastic housing with protective insulation minimises the risk of electrical hazards to keep you and your equipment safe and sound. Four output terminals let you power multiple devices simultaneously for versatility. An MTBF of up to 750,000 hours means you can trust it's built to last.
Features & Benefits
• Performs reliably in temperatures between -25°C and +70°C, so it's suitable for use in harsh environments
• Compact dimensions of 90 (H) x 54 (W) x 60mm (D) to take up minimal space on your rail
• Push-in connection for speedy wiring
• Compact dimensions of 90 (H) x 54 (W) x 60mm (D) to take up minimal space on your rail
• Push-in connection for speedy wiring
Applications
• Industrial automation
• HVAC systems
• Medical equipment
• HVAC systems
• Medical equipment
Does this unit have a status indicator?
Yes, it has a green LED that indicates the unit is functioning properly for at-a-glance status monitoring.
How efficient is this component?
It has an efficiency rating of 85%, so it loses minimal energy as heat for reliable performance.
