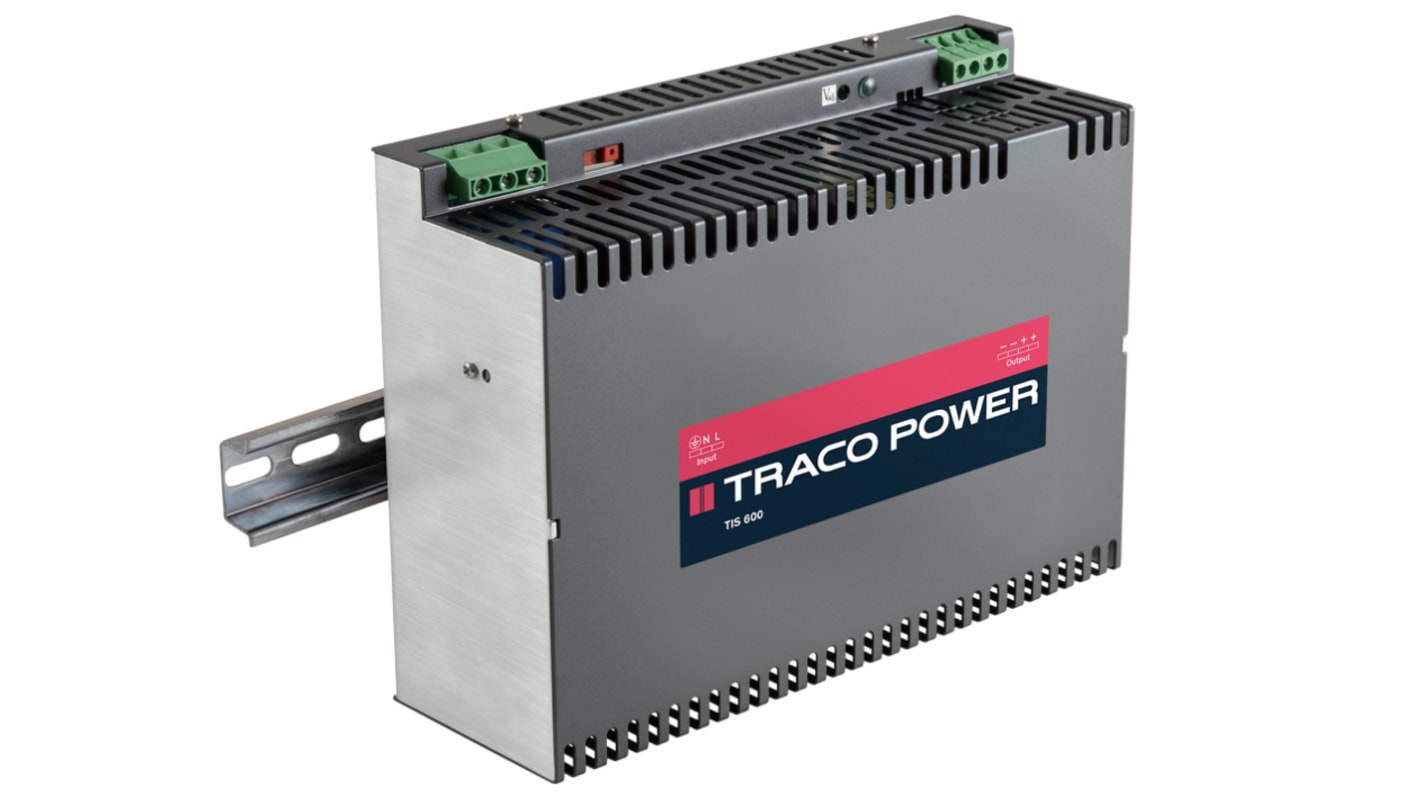

TRACOPOWER TIS Switched Mode DIN Rail Power Supply, 115V ac ac Input, 24V dc dc Output, 24A Output
- RS Stock No.:
- 199-1764
- Mfr. Part No.:
- TIS 600-124 RED
- Brand:
- TRACOPOWER
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 199-1764
- Mfr. Part No.:
- TIS 600-124 RED
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Series | TIS | |
Type | Switched Mode | |
AC or DC Input Voltage | ac | |
Input Voltage | 115 V ac, 230V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 24A | |
Width | 83mm | |
Depth | 243mm | |
Height | 177.3mm | |
Mounting Type | DIN Rail Mount | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Series TIS | ||
Type Switched Mode | ||
AC or DC Input Voltage ac | ||
Input Voltage 115 V ac, 230V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 24A | ||
Width 83mm | ||
Depth 243mm | ||
Height 177.3mm | ||
Mounting Type DIN Rail Mount | ||
- COO (Country of Origin):
- CN
The Traco DIN rail power supply comes with switching power supplies of the TIS series have been particularly designed for applications in industrial process control systems with machine tools and excellent specifications and high immunity against electrical disturbances guarantee.
Switch mode power supplies for DIN-rail mount
6 power ranges with 2, 3, 6, 12, 20 and 24 A output current (24 VDC models)
Selectable 115/230 VAC input
Very low ripple and noise
EMI complies with EN 61000-6-3 and EN 61000-6-4
Operating temp. range –25°C to +70°C
6 power ranges with 2, 3, 6, 12, 20 and 24 A output current (24 VDC models)
Selectable 115/230 VAC input
Very low ripple and noise
EMI complies with EN 61000-6-3 and EN 61000-6-4
Operating temp. range –25°C to +70°C
