Omron S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 8.5A Output, 100W

RS Stock No.:: 166-6778
Mfr. Part No.:: S8FS-G10012CD
Brand:: Omron

Omron S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 8.5A Output, 100W

Subtotal (1 unit)*

£105.34

(exc. VAT)

£126.41

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 25 unit(s) shipping from 09 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£105.34

*price indicative

RS Stock No.:: 166-6778
Mfr. Part No.:: S8FS-G10012CD
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Series	S8FS-G
	Type	Switched Mode
	Electrical Phase	1
	Number of Outputs	1
	AC or DC Input Voltage	ac
	Input Voltage	100 → 240V ac
	AC or DC Output Voltage	dc
	Output Voltage	12V dc
	Output Current	8.5A
	Dimensions	167 x 97 x 39.2mm
	Height	39mm
	Depth	97mm
	Width	167mm
	Output Voltage Adjustment Range	-10 → +15%
	Ripple And Noise	90mV Pk-Pk
	MTBF	135000h
	Load Regulation	1%
	Mounting Type	DIN Rail Mount
	Efficiency	86%
	Model	S8FS-G
	Minimum Temperature	-20°C
	Standards Met	CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, cULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1
	Maximum Temperature	+70°C

	Select all
	Brand Omron
	Series S8FS-G
	Type Switched Mode
	Electrical Phase 1
	Number of Outputs 1
	AC or DC Input Voltage ac
	Input Voltage 100 → 240V ac
	AC or DC Output Voltage dc
	Output Voltage 12V dc
	Output Current 8.5A
	Dimensions 167 x 97 x 39.2mm
	Height 39mm
	Depth 97mm
	Width 167mm
	Output Voltage Adjustment Range -10 → +15%
	Ripple And Noise 90mV Pk-Pk
	MTBF 135000h
	Load Regulation 1%
	Mounting Type DIN Rail Mount
	Efficiency 86%
	Model S8FS-G
	Minimum Temperature -20°C
	Standards Met CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, cULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1
	Maximum Temperature +70°C

COO (Country of Origin):: CN

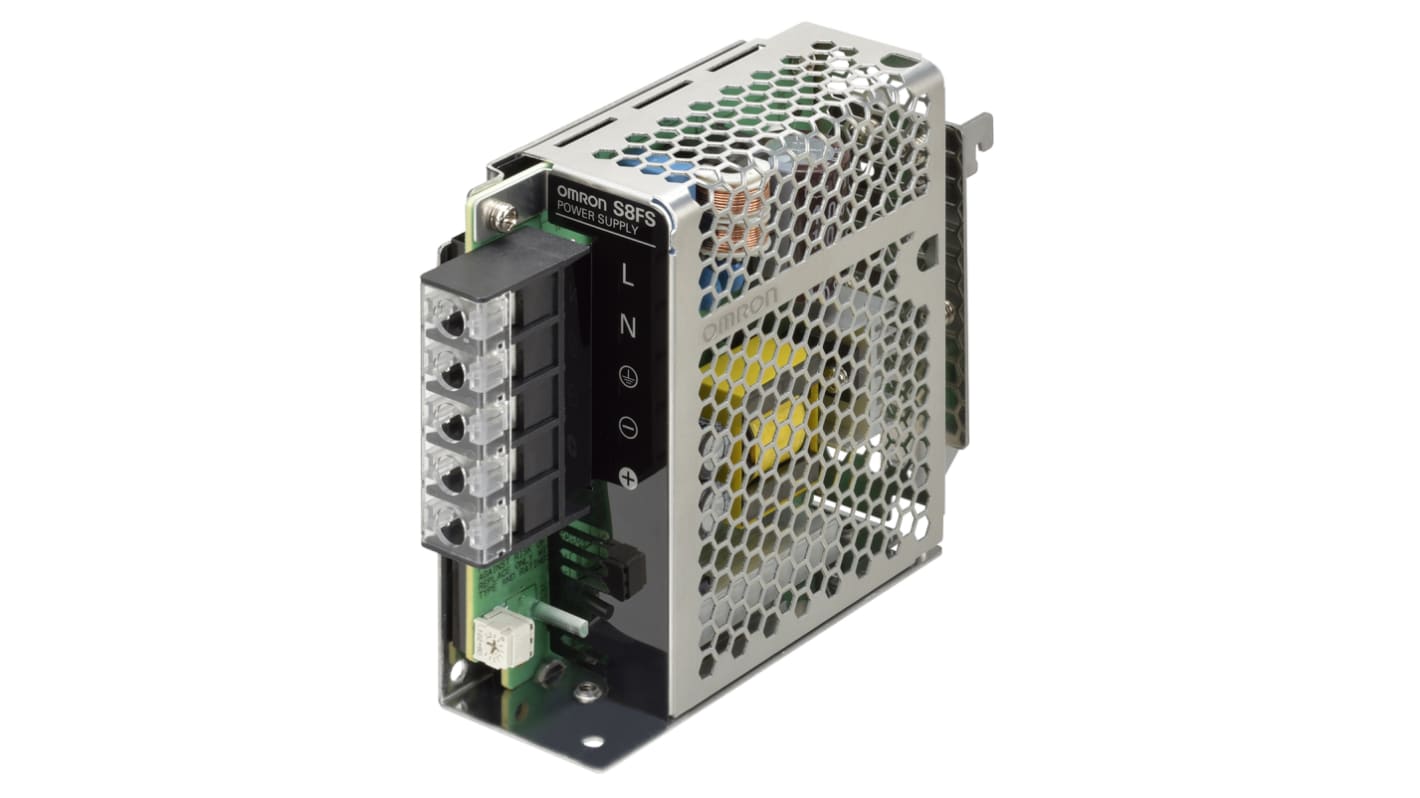

Omron S8FS-G Series DIN Rail Power Supply, 12V DC Output Voltage, 8.5A Output Current - S8FS-G10012CD

This DIN rail power supply provides a reliable AC to DC conversion for a variety of industrial applications. Featuring a compact design, it measures 167 x 97 x 39.2mm and can handle input voltages from 100 to 240VAC. With an output of 12V DC at 8.5A, this switched mode power supply is suitable for automation and electrical systems.

Features & Benefits

• High efficiency power supply achieving 86% energy efficiency
• Output voltage adjustment range offers flexibility from -10% to +15%
• Designed for ambient temperatures up to 70°C for reliability
• CE certified power supply meets global safety standards
• Built-in overload protection safeguards against excessive current
• Compact DIN rail mounted power supply optimises space utilisation

Applications

• Used for powering control systems in automation
• Ideal for use in harsh environments, including elevated temperatures
• Perfect for requiring a reliable 12V DC power source
• Compatible with devices that require a switched mode power supply
• Suitable for systems operating under rigorous industrial conditions

What is the maximum load this power supply can handle?

The maximum output current is 8.5A at 12V DC, equating to a power rating of 100W.

How does the output voltage adjustment feature work, and what is its benefit?

The output voltage can be adjusted between -10% to +15% of 12V DC, allowing for compatibility with a variety of connected devices that might require slightly different voltage levels.

Can this product be used in parallel with other units?

No, parallel operation is not supported

however, the product can function in backup scenarios with appropriate external diodes to ensure seamless power supply.

What safety certifications does this power supply hold?

It is CE certified and complies with multiple safety standards, including UL and CSA, ensuring it meets rigorous industrial requirements for quality and safety.

What measures does it have against overheating?

It features internal overload and overtemperature protection, automatically shutting off the output if operating conditions exceed specified limits.

Standards

EN 61000-3-2
UL 508 (Listing, excluding models with connector option or remote control option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote control option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option remote control option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)
