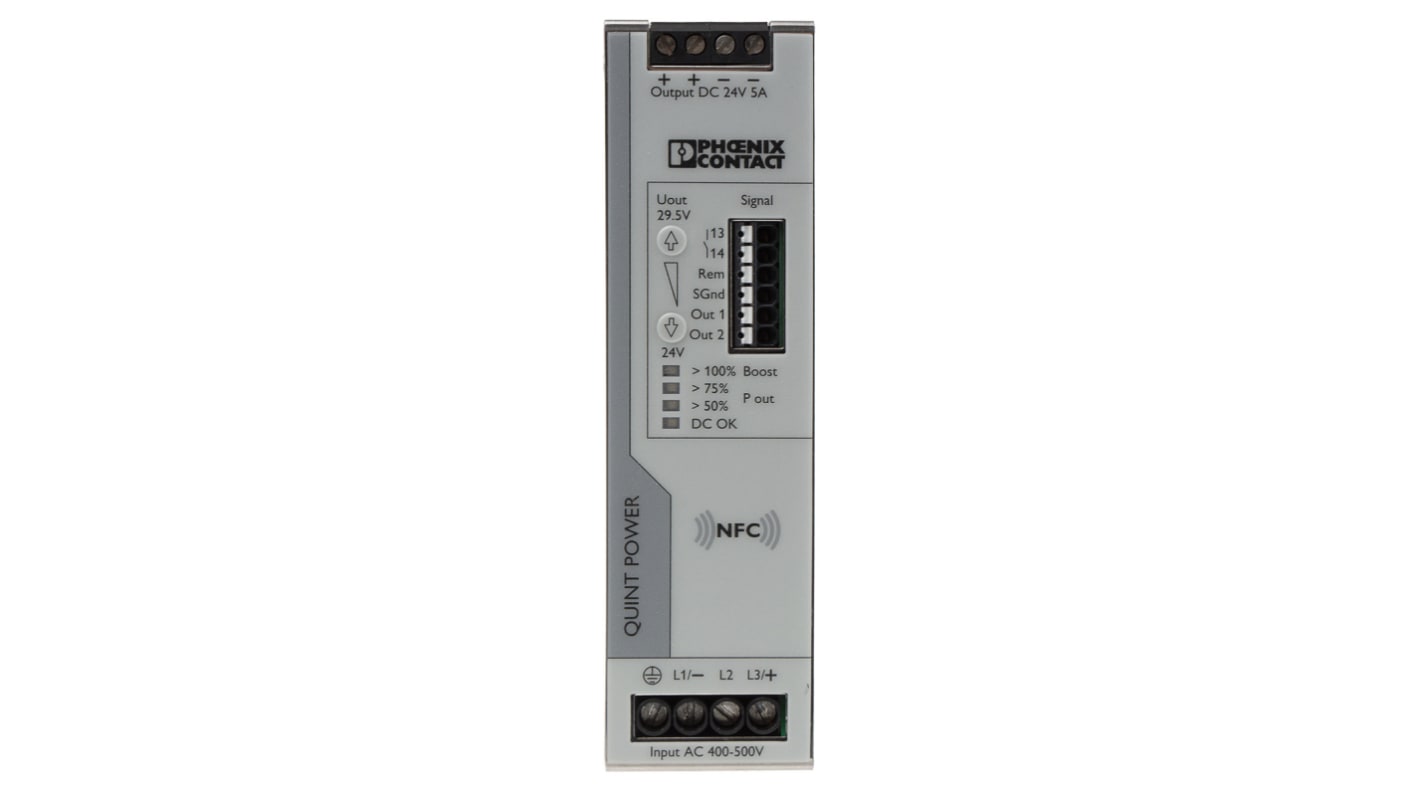

Phoenix Contact QUINT POWER Switched Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 5A Output, 120W
- RS Stock No.:
- 123-4308
- Distrelec Article No.:
- 303-09-503
- Mfr. Part No.:
- 2904620
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£190.15
(exc. VAT)
£228.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £190.15 |
*price indicative
- RS Stock No.:
- 123-4308
- Distrelec Article No.:
- 303-09-503
- Mfr. Part No.:
- 2904620
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | QUINT POWER | |
| Type | Switched Mode | |
| AC or DC Input Voltage | ac | |
| Number of Outputs | 1 | |
| Input Voltage | 400V ac | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 24V dc | |
| Output Current | 5A | |
| Height | 130mm | |
| Width | 36mm | |
| Depth | 125mm | |
| Hazardous Area Certification | Ex Approval | |
| Model | QUINT4-PS/3AC/24DC/5 | |
| Maximum Temperature | +70°C | |
| Standards Met | cUL, cULus, EAC, EN 61000-4-11, UL, UL1741 | |
| Ripple And Noise | <30mV Pk-Pk | |
| Efficiency | 87.5% | |
| Mounting Type | DIN Rail Mount | |
| Special Features | Easy System Extension, High Degree of Immunity, Preventive Function Monitoring Indicates Critical Operating States Before Errors Occur, SFB Technology Trips Standard Circuit Breakers Selectively | |
| MTBF | >1560000h | |
| Minimum Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series QUINT POWER | ||
Type Switched Mode | ||
AC or DC Input Voltage ac | ||
Number of Outputs 1 | ||
Input Voltage 400V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 5A | ||
Height 130mm | ||
Width 36mm | ||
Depth 125mm | ||
Hazardous Area Certification Ex Approval | ||
Model QUINT4-PS/3AC/24DC/5 | ||
Maximum Temperature +70°C | ||
Standards Met cUL, cULus, EAC, EN 61000-4-11, UL, UL1741 | ||
Ripple And Noise <30mV Pk-Pk | ||
Efficiency 87.5% | ||
Mounting Type DIN Rail Mount | ||
Special Features Easy System Extension, High Degree of Immunity, Preventive Function Monitoring Indicates Critical Operating States Before Errors Occur, SFB Technology Trips Standard Circuit Breakers Selectively | ||
MTBF >1560000h | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- TH
Phoenix Contact Quint 4 Power Supply Units
The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The DIN Rail mountable PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.
All functions and the space-saving design are tailored to the high requirements in this field.
The DIN Rail mountable PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.
Features and Benefits
• Robust design
• Available in single and three phase
• IP20 protection
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting
• Available in single and three phase
• IP20 protection
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting
Typical Applications
Quint PSUs can be used in control cabinets within the automotive industry or process technology to ensure uninterrupted production. Can be used in environments where there is corrosive gas, dust and 100% humidity due to its conformal coating.
Phoenix Contact Switch Mode DIN Rail Power Supply, 400V AC Input, 24V DC Output - QUINT4-PS/3AC/24DC/5 - 2904620
This DIN rail mountable power supply from Phoenix Contact is specially designed for machine building. Thanks to its robust mechanical and electrical construction, it can achieve an MBTF (mean time between failures) of over a million hours, meaning you can rely on this power supply in the long term. It takes a 400V AC input and converts it to a 24V DC output, so it's suitable for powering appliances such as computers and TVs, as well as relays.
You can easily mount this power supply onto a DIN rail without tools by using the push-in connection. Its conformal coating means you can use it in humid environments or in the presence of corrosive dust and gas. As it has a dynamic power boost feature to deliver a five-second burst of current at 150% of the normal level, it's a reliable choice for starting difficult loads.
You can easily mount this power supply onto a DIN rail without tools by using the push-in connection. Its conformal coating means you can use it in humid environments or in the presence of corrosive dust and gas. As it has a dynamic power boost feature to deliver a five-second burst of current at 150% of the normal level, it's a reliable choice for starting difficult loads.
• LED indicator lets you monitor at a glance that the supply is functioning properly
• Operating temperature range of -25°C to +70°C makes it suitable for harsh environments
• Floating signal contact ensures the safety of connected loads
• IP20 (ingress protection) rating means it's touch-proof and resistant to dust
• Operating temperature range of -25°C to +70°C makes it suitable for harsh environments
• Floating signal contact ensures the safety of connected loads
• IP20 (ingress protection) rating means it's touch-proof and resistant to dust
