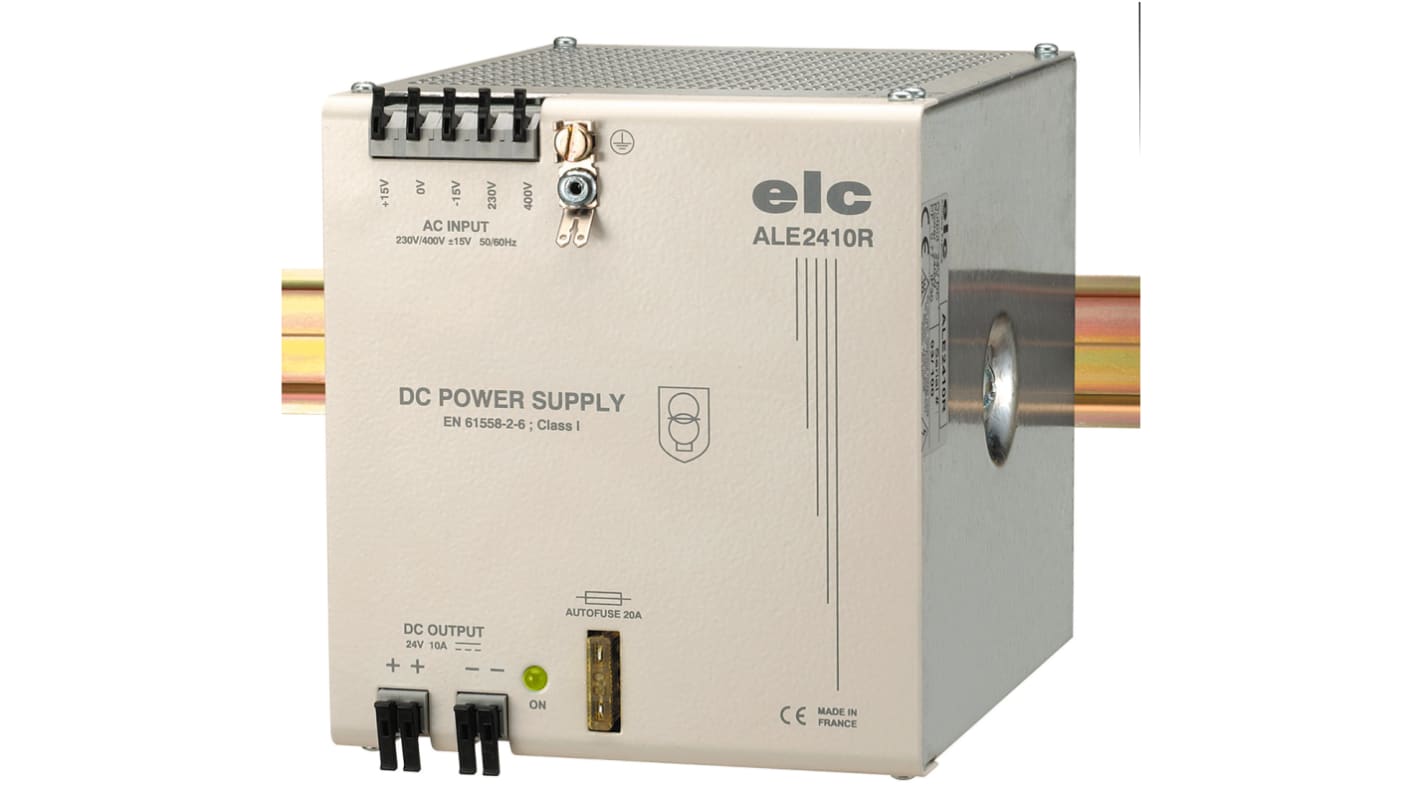

ELC ALE Linear DIN Rail Power Supply 400V ac AC Input 24V dc, 10 A Output DC 240 W
- RS Stock No.:
- 468-358
- Mfr. Part No.:
- ALE2410R
- Brand:
- ELC
Subtotal (1 unit)*
£157.39
(exc. VAT)
£188.87
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £157.39 |
*price indicative
- RS Stock No.:
- 468-358
- Mfr. Part No.:
- ALE2410R
- Brand:
- ELC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ELC | |
| Series | ALE | |
| Product Type | DIN Rail Power Supply | |
| Sub Type | Linear | |
| Maximum Output Voltage | 24V dc | |
| Electrical Phase | 1 | |
| Input Voltage Type | AC | |
| Power | 240W | |
| Output Current | 10A | |
| IP Rating | IP30 | |
| Output Voltage Type | DC | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 55°C | |
| Width | 125mm | |
| Hazardous Area Certification | No | |
| Depth | 155mm | |
| Height | 135mm | |
| Standards/Approvals | EN 61000-6-2, EN 61000-6-4, EN 61131-2, EN 61558-2-6 | |
| Maximum Input Voltage | 400V ac | |
| Minimum Input Voltage | 230V ac | |
| Select all | ||
|---|---|---|
Brand ELC | ||
Series ALE | ||
Product Type DIN Rail Power Supply | ||
Sub Type Linear | ||
Maximum Output Voltage 24V dc | ||
Electrical Phase 1 | ||
Input Voltage Type AC | ||
Power 240W | ||
Output Current 10A | ||
IP Rating IP30 | ||
Output Voltage Type DC | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 55°C | ||
Width 125mm | ||
Hazardous Area Certification No | ||
Depth 155mm | ||
Height 135mm | ||
Standards/Approvals EN 61000-6-2, EN 61000-6-4, EN 61131-2, EN 61558-2-6 | ||
Maximum Input Voltage 400V ac | ||
Minimum Input Voltage 230V ac | ||
- COO (Country of Origin):
- FR
ELC DIN Rail Power Supply
The ELC ALE series DIN rail linear power supply has a universal input voltage ranging between 230VAC and 400VAC. It is a modular, filtered and rectified OEM power supply with floating outputs on a spring terminal with a lever. The rated output current is 10A at 24VDC output voltage. This power supply features short-circuit protection via a secondary fuse and toroidal safety transformer (SELV) for high efficiency.
Features and Benefits
LED status indicator
Lightweight and small in size
Operation temperature ranging between 5°C and 55°C
Power consumption is up to 287W
Ripple factor and noise is ±5%
Spring terminals for 2.5 mm² wires
Applications
Automation and process control
Industrial controls
Power management
Specifications
Technology: Filtered Rectified
Class: I
Primary Voltage Rating: 230/400V ±15V
Safety Standards
EN 61010-1, EN 61131-2
EMC Standard
EN 61000-6-2/4
