15W to 1500W S8VM Series with Downtime warning

The S8VM range is in a traditional metal frame format with some new features. The S8VM range can be used as a first indication to supply problems which can result in lost production, The Early warning system (EWS) can diagnose different types of voltage dip and loss which in turn can be wired into a PLC or management system to warn of impending problems.

Series Benefits.

Output voltages easily identified by colour coded labels on the side of the unit
Meets the latest European and relevant international standard
Operating temperature range 0°C to +50°C

Part Number S8VM-15015CD

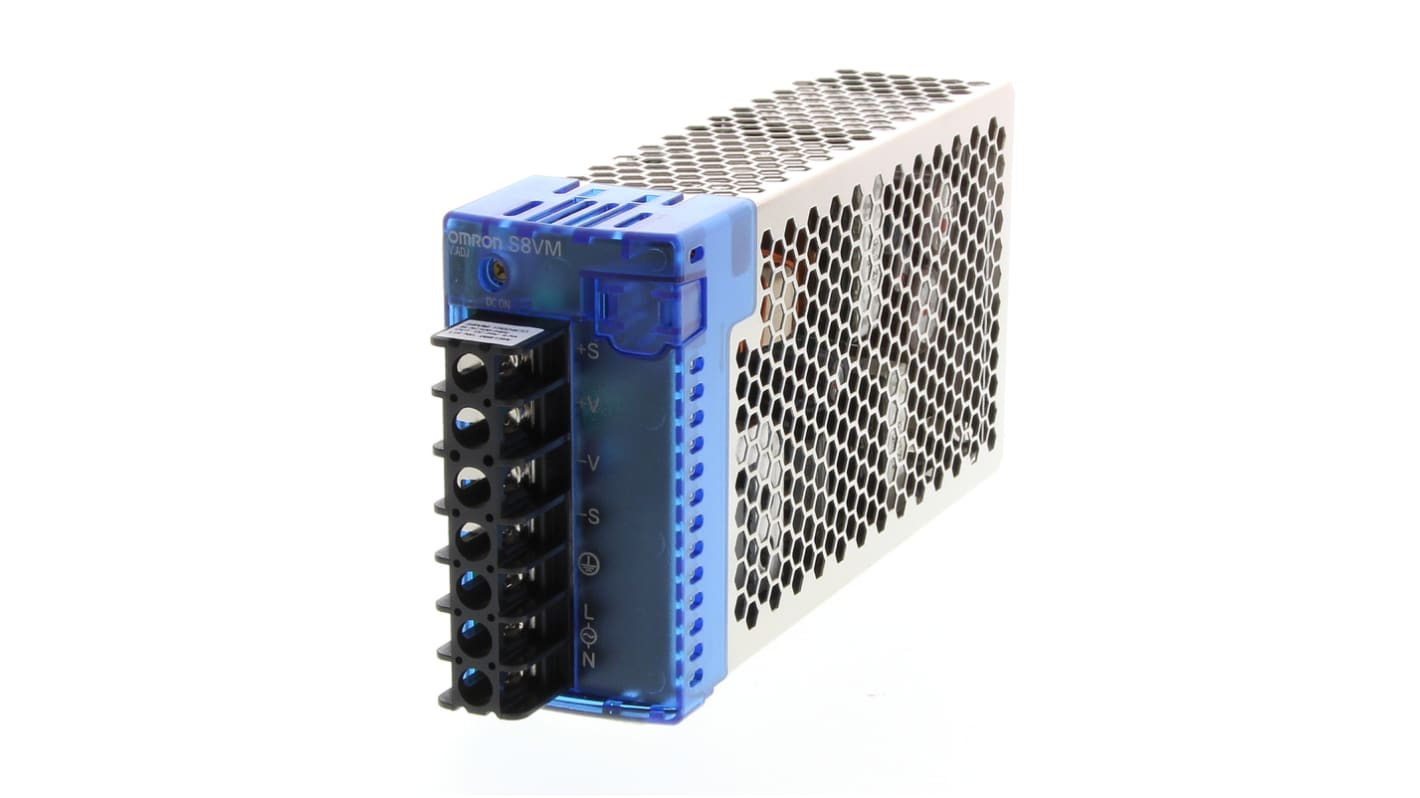

The S8VM Switch mode, Din Rail mounted power supply is a covered type, terminal block structure with screw terminals. Your fingers are protected from electric shocks. S8VM-15015CD has a power rating of 150 W and an output voltage of 15 V dc plus a rated input voltage of 100 V ac to 240 V ac. This standard model incudes green output indicators and is natural air-cooled.

Features and Benefits.

• Covered type power supply

• Screw terminal

• Design stops screws from falling out of the terminal block

• Switch mode

• DIN Rail Mounting

• Green output indicators

• Natural air cooled

• Power rating 150 W

• Output voltage 15 V dc

• Input voltage 100 V ac to 240 V ac

• Efficiency 81% min.

• Frequency 50/60 Hz

• Rated output current 10 A

• Electric shock finger protection

• RoHS compliant including Lead Free construction

What is a DIN Rail Mounted Power Supply?

A DIN Rail is a standard type of rail that is used to mount the power supply into racks. DIN Rails are a support for equipment. DIN Rails are normally made from aluminium but if there is a chance that the power supply suffers any shock or vibration, use a steel DIN Rail.

What is A Switch Mode Power Supply?

Switch mode power supplies are a general purpose power supply include a switching regulator converting AC mains power to a lower voltage DC. A Switch mode power supply is efficient limiting any wasted energy.

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.

Shock resistance 150 m/s **2 in each 6 directions 3 times.

Standards

UL508/60950-1/1604, CSA C22.2 No. 14/No. 60950-1/No.213, EN50178, EN60950-1, Harmonic current emissions E 61000-3-2

Select all	Attribute	Value
	Brand	Omron
	Type	Switch Mode
	Output Voltage	15V dc
	Output Current	10A
	AC or DC Input Voltage	ac
	AC or DC Output Voltage	dc
	Input Voltage	85 → 264V ac
	Power Rating	150W
	Electrical Phase	1
	Number of Outputs	1
	Height	82.5mm
	Width	49.1mm
	Depth	178.1mm
	Series	S8VM
	MTBF	135000h
	Load Regulation	±0.8%
	Mounting Type	DIN Rail Mount
	Ripple And Noise	±1.2%
	Maximum Temperature	+50°C
	Minimum Temperature	0°C
	Efficiency	81%

	Select all
	Brand Omron
	Type Switch Mode
	Output Voltage 15V dc
	Output Current 10A
	AC or DC Input Voltage ac
	AC or DC Output Voltage dc
	Input Voltage 85 → 264V ac
	Power Rating 150W
	Electrical Phase 1
	Number of Outputs 1
	Height 82.5mm
	Width 49.1mm
	Depth 178.1mm
	Series S8VM
	MTBF 135000h
	Load Regulation ±0.8%
	Mounting Type DIN Rail Mount
	Ripple And Noise ±1.2%
	Maximum Temperature +50°C
	Minimum Temperature 0°C
	Efficiency 81%

Omron S8VM Switch Mode DIN Rail Panel Mount Power Supply, 85 → 264V ac ac Input, 15V dc dc Output, 10A Output,
