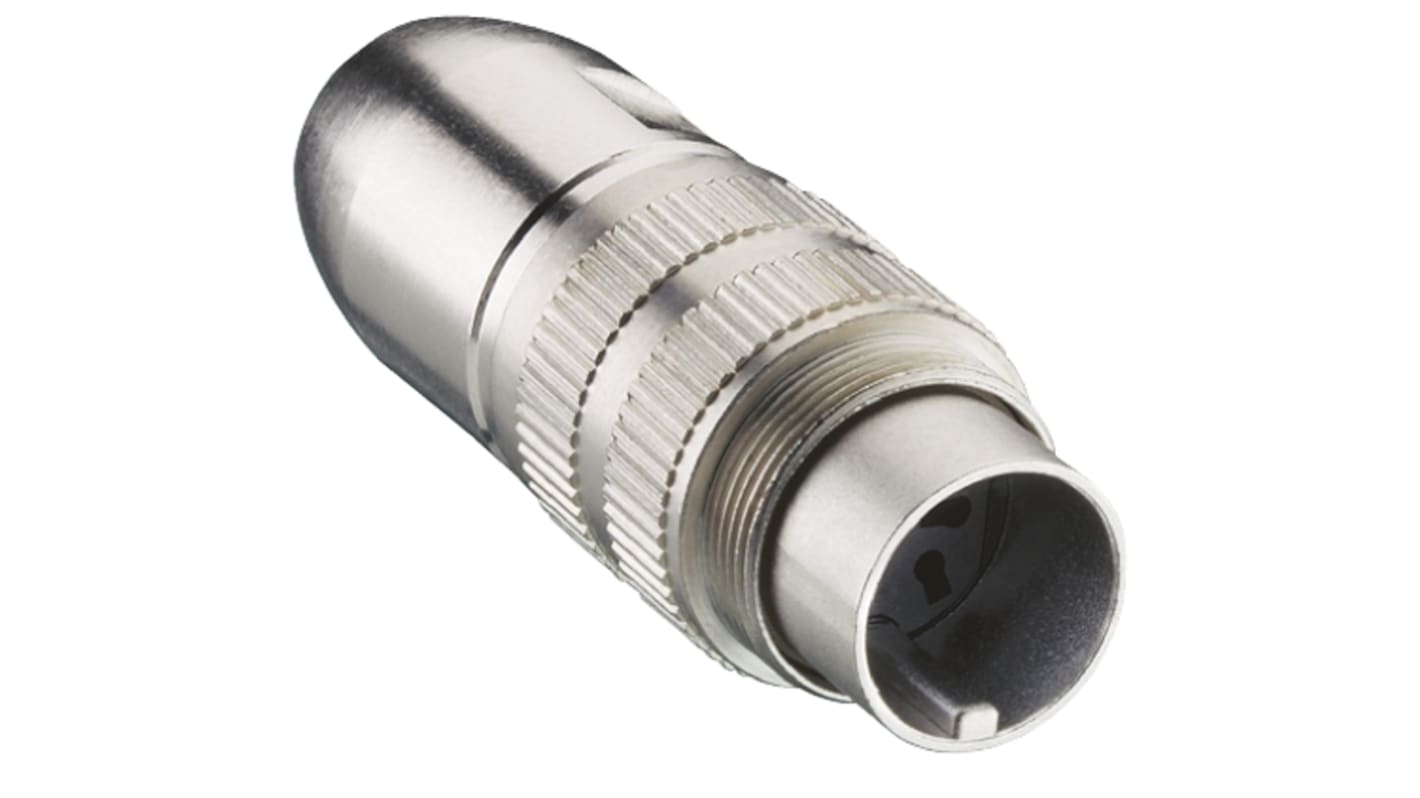

Lumberg, 0365 6 Pole M16 Connector Housing IP68
- RS Stock No.:
- 748-0927
- Mfr. Part No.:
- 0365 06-1
- Brand:
- Lumberg
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 748-0927
- Mfr. Part No.:
- 0365 06-1
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg | |
| Number of Contacts | 6 | |
| Connector Size | M16 | |
| Body Orientation | Straight | |
| IP Rating | IP68 | |
| Series | 0365 | |
| Housing Material | Brass | |
Select all | ||
|---|---|---|
Brand Lumberg | ||
Number of Contacts 6 | ||
Connector Size M16 | ||
Body Orientation Straight | ||
IP Rating IP68 | ||
Series 0365 | ||
Housing Material Brass | ||
- COO (Country of Origin):
- CZ
0365 Series 3G-4G Empty Circular Plug Connectors, 360 Degree Shielding
Lumberg 0365 Series 3G-4G empty circular plug connectors feature a threaded joint and 360 degree shielding, ideal for use within the mobile communications network structure in applications such as base stations, antenna remote electrical tilts (RET), bias tees, tower-mounted amplifiers (TMA), surge protections and similar applications that require a robust shielded connector. When mated these 3G-4G circular connectors offer protection up to IP68 once the counterparts are screwed together. Connector crimp contacts are available in gilded or silvered versions.
Connectors compliant with AISG specification
Protection IP68
Salt mist resistant
UV resistant
Wire section 0.25 to 0.75 mm2 (23 - 18 AWG)
Temperature range -40 to +85 °C
NBR gasket material
Protection IP68
Salt mist resistant
UV resistant
Wire section 0.25 to 0.75 mm2 (23 - 18 AWG)
Temperature range -40 to +85 °C
NBR gasket material
Standards
IEC 60130-9
Lumberg Connectors Standard and SWUM™ - IP68
Lumberg Connectors Standard and SWUM™ - IP68 Chassis and cable mount plugs and sockets up to 12 way, with or without 360° shielding. Typical applications are control engineering, automation technology and medical instrumentation.
