Amphenol C 091 D Series, 5 Pole Din Socket Socket, 5A, 100 V ac/dc
- RS Stock No.:
- 459-2323
- Mfr. Part No.:
- C091-31N105-1002
- Brand:
- Amphenol
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternatives
This product is not currently available. Here are our alternative recommendations.
Each
£3.50
(exc. VAT)
£4.20
(inc. VAT)
Each
£7.54
(exc. VAT)
£9.05
(inc. VAT)
- RS Stock No.:
- 459-2323
- Mfr. Part No.:
- C091-31N105-1002
- Brand:
- Amphenol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol | |
| Number of Contacts | 5 | |
| Gender | Female | |
| Mounting Type | Panel Mount | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Current Rating | 5A | |
| Voltage Rating | 100 V ac/dc | |
| Series | C 091 D | |
| Minimum Operating Temperature | -40°C | |
| Contact Plating | Silver | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand Amphenol | ||
Number of Contacts 5 | ||
Gender Female | ||
Mounting Type Panel Mount | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Current Rating 5A | ||
Voltage Rating 100 V ac/dc | ||
Series C 091 D | ||
Minimum Operating Temperature -40°C | ||
Contact Plating Silver | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- CN

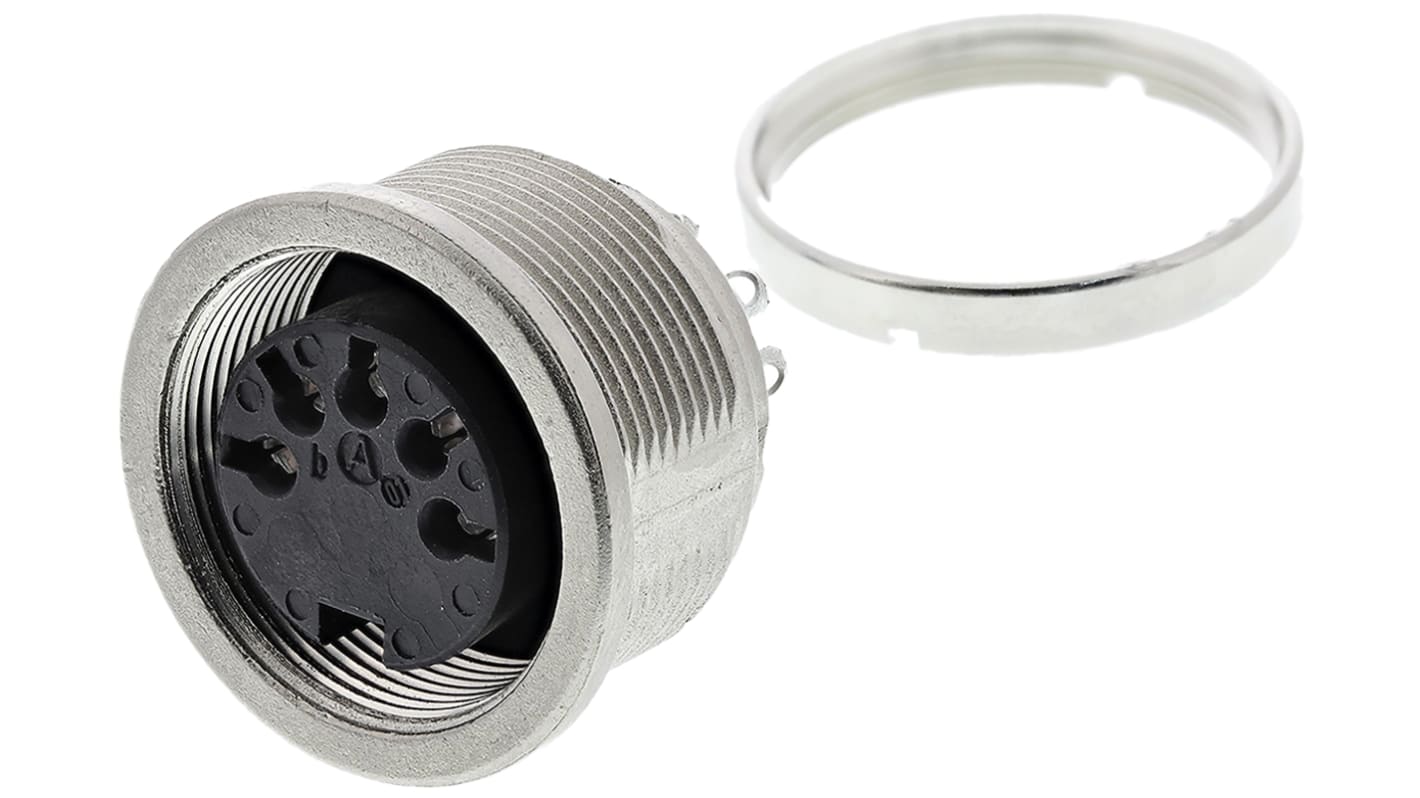

Panel Socket
From Amphenol, this C091D metal panel socket features a steel thread and locking ring for sealed and secure mating attenuation.
Approvals
UL
C091D - Metal
Amphenol C091D robust circular DIN connectors manufactured to the highest standard in brass and die-cast aluminium, nickel-plated to suit the most demanding industrial applications. Ideal for medical, robotic, automotive, instrumentation, CCTV and computer interface applications.
Screw locking
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief
