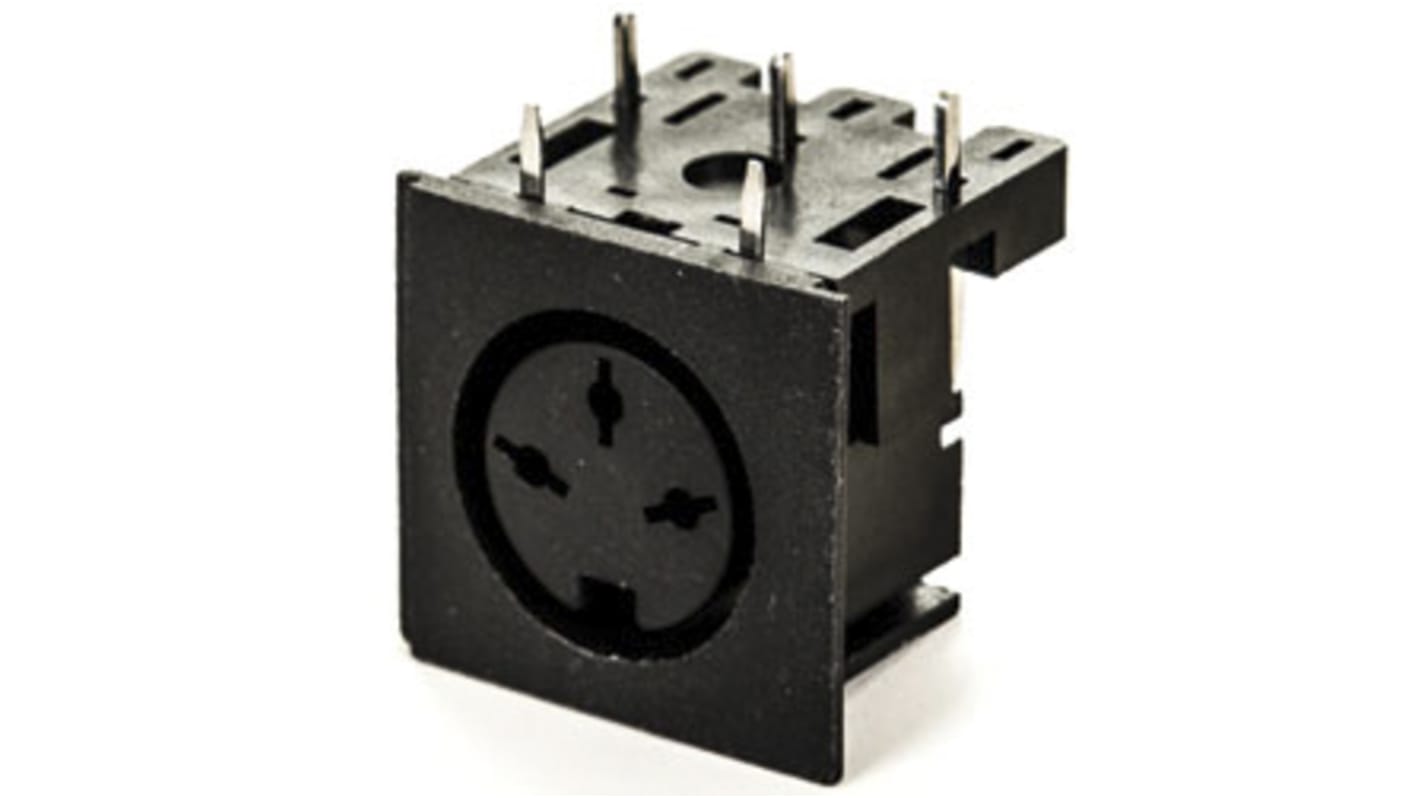

Roxburgh EMC 3 Pole Right Angle Din Socket Socket, 2A, 100 V ac, Lockable

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Printed circuit board-90° DIN Sockets.A range of right -angled printed circuit board mounting DIN sockets.Which enable any DIN plug to be interfaced with a PCB

Specifications
Attribute Value
Number of Contacts 3
Gender Female
Mounting Type PCB Mount
Connector Size Standard
Mating Type Lockable
Termination Method Solder
Body Orientation Right Angle
Current Rating 2A
Voltage Rating 100 V ac
Housing Material PBT
Minimum Operating Temperature -20°C
Contact Plating Tin
Series Number 671
Pole Format 3P
Maximum Operating Temperature +70°C
52 In stock - FREE next working day delivery available
Price Each
£ 1.00
(exc. VAT)
£ 1.20
(inc. VAT)
Units
Per unit
1 +
£1.00
