Amphenol Industrial, C 091 D 7 Pole M16 Din Socket, 5A, 300 V ac/dc IP67, Screw On, Female, Cable Mount
- RS Stock No.:
- 157-2657
- Mfr. Part No.:
- C091-31D007-1002
- Brand:
- Amphenol Industrial
174 In stock - FREE next working day delivery available
8 available from Europe for delivery within 1 working day(s).
Added
Price Each
£12.97
(exc. VAT)
£15.56
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £12.97 |
| 5 - 24 | £12.17 |
| 25 - 49 | £11.35 |
| 50 + | £10.53 |
- RS Stock No.:
- 157-2657
- Mfr. Part No.:
- C091-31D007-1002
- Brand:
- Amphenol Industrial
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

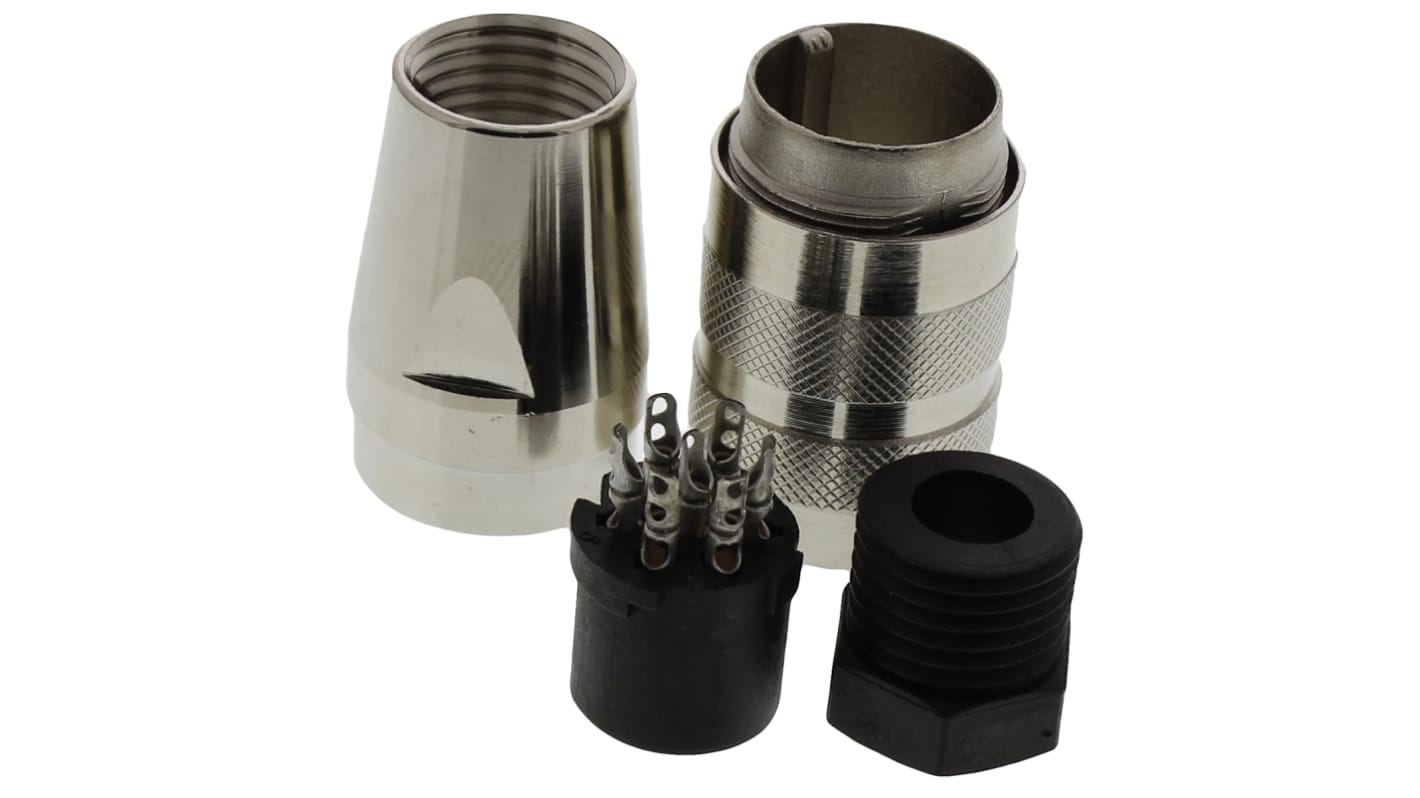

Straight Cable Socket
From Amphenol, this C091 Series cable mount connector features a screw-locking thread for robust mating attenuation. The connector, when mated, boasts a high degree of enviromental protection.
Note
5-way and 7-way are available in two configurations.
C091D - Metal
Amphenol C091D robust circular DIN connectors manufactured to the highest standard in brass and die-cast aluminium, nickel-plated to suit the most demanding industrial applications. Ideal for medical, robotic, automotive, instrumentation, CCTV and computer interface applications.
Screw locking
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 7 |
| Gender | Female |
| Mounting Type | Cable Mount |
| Connector Size | M16 |
| Mating Type | Screw On |
| Termination Method | Solder |
| Body Orientation | Straight |
| Current Rating | 5A |
| Voltage Rating | 300 V ac/dc |
| IP Rating | IP67 |
| Series | C 091 D |
| Contact Plating | Silver |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
- RS Stock No.:
- 157-2657
- Mfr. Part No.:
- C091-31D007-1002
- Brand:
- Amphenol Industrial
