Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 136-2702
- Mfr. Part No.:
- ST40X-24S-CV(30)
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Gender | Male | |
| Termination Method | Solder | |
| Contact Material | Copper Alloy | |
| Housing Material | Plastic | |
| Contact Plating | Gold | |
| Series | ST | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -30°C | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Gender Male | ||
Termination Method Solder | ||
Contact Material Copper Alloy | ||
Housing Material Plastic | ||
Contact Plating Gold | ||
Series ST | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- CN

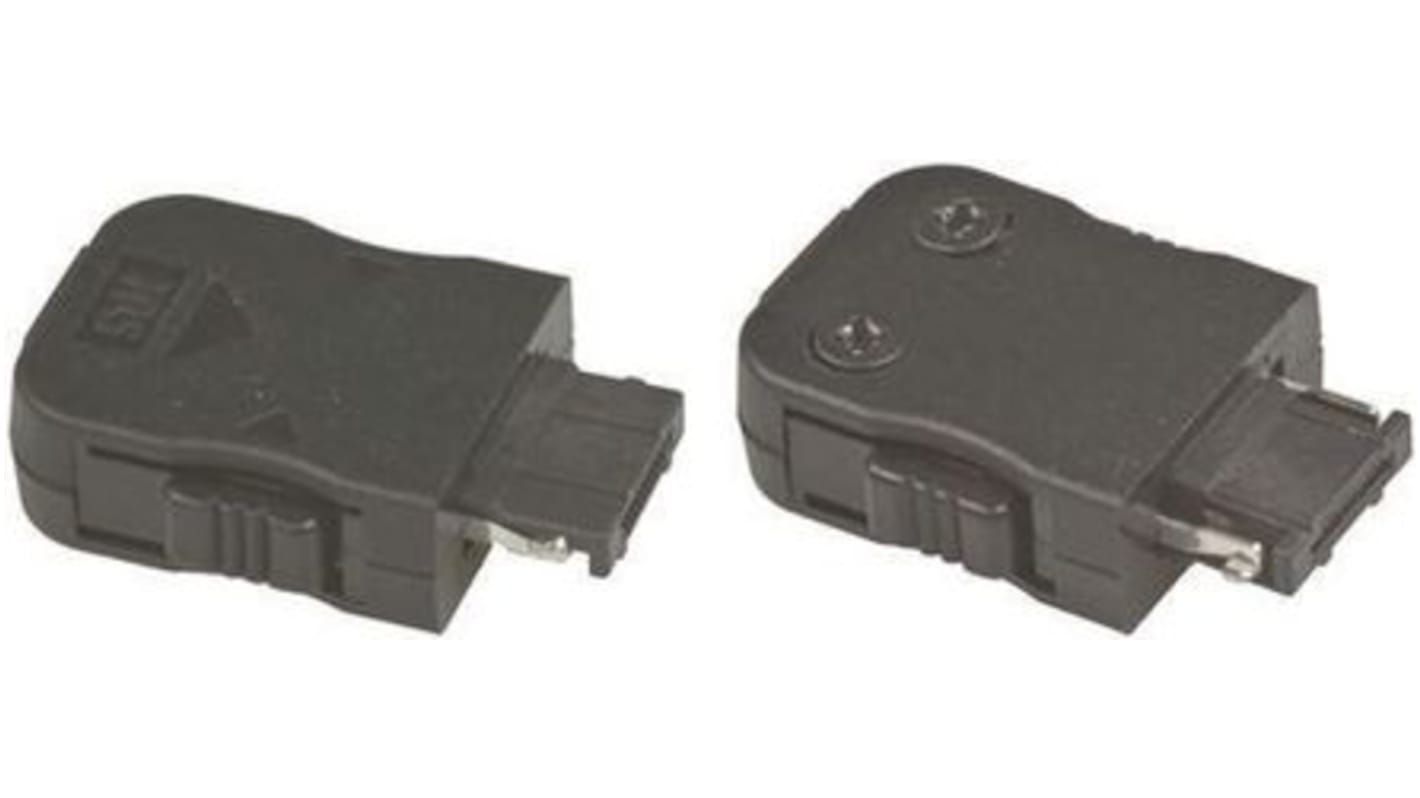

ST Series Plug
The Hirose ST40X series of PCB mount plugs are designed as Input/output (I/O) connectors for small portable devices. The robust connectors feature a strong locking mechanism assuring connection reliability when mated. ST40X plugs also incorporate multiple polarisation keys preventing incorrect insertion of the plug to its mating half.
Features and Benefits
• Plugs with female contact
• Standard type for top PCB mount
• Black thermoplastic insulator, UL94V-0
• Compact size, saving valuable board space
• Polarisation keys, preventing angled or reverse insertion
• Strong locking mechanism, ensuring reliable connection
• Standard type for top PCB mount
• Black thermoplastic insulator, UL94V-0
• Compact size, saving valuable board space
• Polarisation keys, preventing angled or reverse insertion
• Strong locking mechanism, ensuring reliable connection
Applications
• Mobile phones
• Notebook computers
• Digital cameras
• PDA devices (Personal Digital Assistance)
• Notebook computers
• Digital cameras
• PDA devices (Personal Digital Assistance)
Hirose ST Series Interface Connectors
• External input/output connector
• Strong locking mechanism
• Polarisation keys prevents reversed or angle insertion
• Built-in ground continuity features and EMI shielding
• Strong locking mechanism
• Polarisation keys prevents reversed or angle insertion
• Built-in ground continuity features and EMI shielding
