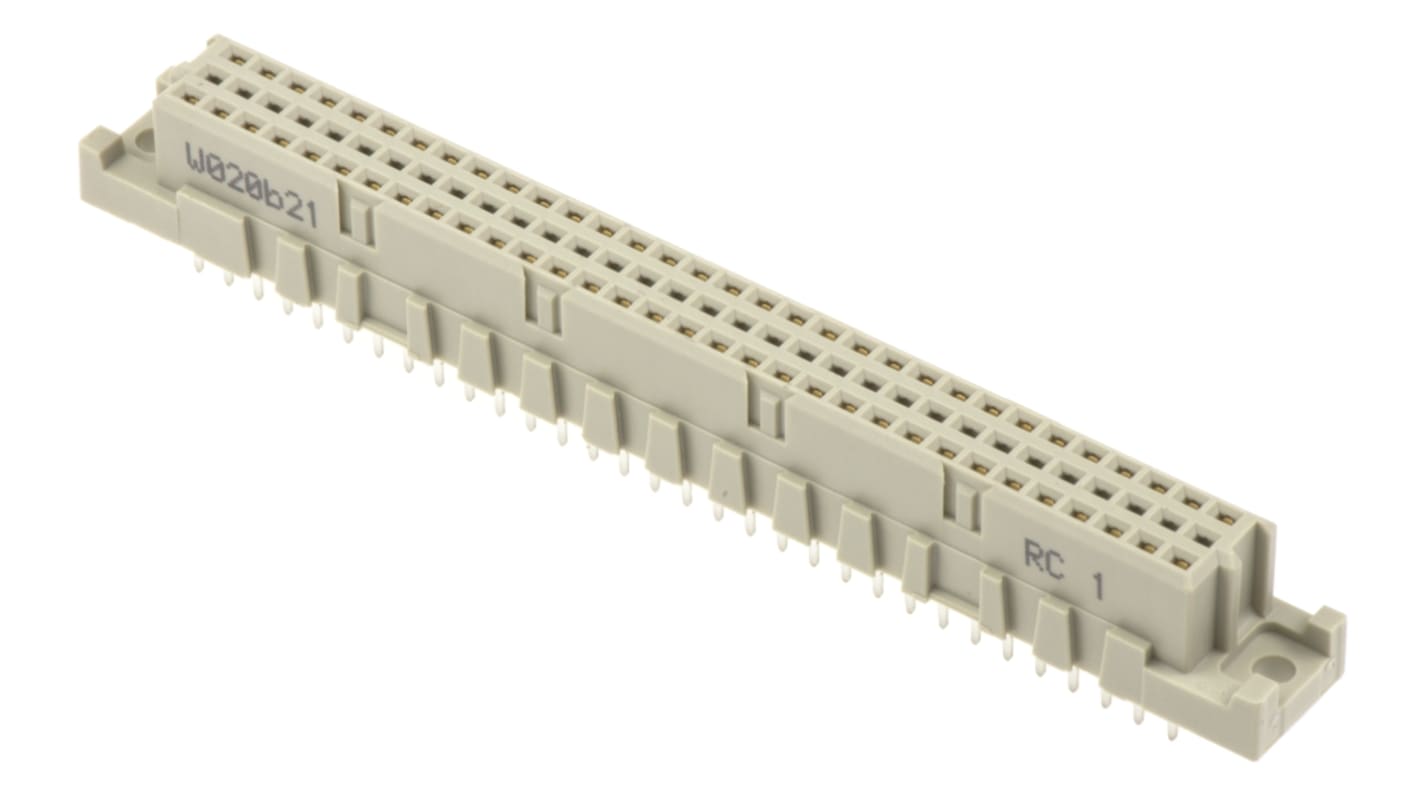

RS PRO 64 Way 2.54mm Pitch, Type C Class C1, 2 Row, Straight DIN 41612 Connector, Socket
- RS Stock No.:
- 508-3101
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3.51
(exc. VAT)
£4.21
(inc. VAT)
- RS Stock No.:
- 508-3101
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 64 | |
| Gender | Female | |
| Number of Rows | 2 | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Row Loading | a/b | |
| Type | C | |
| Pitch | 2.54mm | |
| Contact Plating | Gold over Nickel | |
| Class Rating | C1 | |
| Current Rating | 2A | |
| Contact Material | Brass | |
| Maximum Contact Resistance | 20mΩ | |
| Maximum Operating Temperature | +125°C | |
| Housing Material | PBT | |
| Voltage Rating | 1 kV | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 64 | ||
Gender Female | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Row Loading a/b | ||
Type C | ||
Pitch 2.54mm | ||
Contact Plating Gold over Nickel | ||
Class Rating C1 | ||
Current Rating 2A | ||
Contact Material Brass | ||
Maximum Contact Resistance 20mΩ | ||
Maximum Operating Temperature +125°C | ||
Housing Material PBT | ||
Voltage Rating 1 kV | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- DE
RS PRO 64 Way Socket, Class C1, Straight DIN 41612 Connector, 2 Row, 2.54 mm Pitch
Add extra termination points to your printed circuit board (PCB) with this 64-way socket from RS PRO. It's easily attached to a DIN rail and is a useful component in complex industrial control cabinets.
The socket's compact design allows for the maximum number of contacts while taking up minimal space on your PCB. Its polybutylene terephthalate (PBT) housing has excellent heat resistance so it remains efficient, even when exposed to hot conditions. This robust plastic also helps protect sensitive electrical connections. Its brass contacts are rust-resistant, which means they're not adversely affected by the presence of moisture.
Use this product in any low voltage industrial application, where it will provide a fast and secure connection. Edge connectors such as this one are commonly found in electronics such as PCs and peripherals.
The socket's compact design allows for the maximum number of contacts while taking up minimal space on your PCB. Its polybutylene terephthalate (PBT) housing has excellent heat resistance so it remains efficient, even when exposed to hot conditions. This robust plastic also helps protect sensitive electrical connections. Its brass contacts are rust-resistant, which means they're not adversely affected by the presence of moisture.
Use this product in any low voltage industrial application, where it will provide a fast and secure connection. Edge connectors such as this one are commonly found in electronics such as PCs and peripherals.
Features and Benefits
• Straight body orientation
• C1 class rating
• Brass contact material
• Gold-over-nickel contact plating
• PBT housing material
• Maximum contact resistance of 20 mΩ
• Operating temperature range of -55°C to +125°C
• 64 contacts
• Two rows
• Pitch of 2.54 mm
• a/b row loading
• Solder termination method
• Type C, female socket
• Current rating of 2 A
• Voltage rating of 1 kV
• C1 class rating
• Brass contact material
• Gold-over-nickel contact plating
• PBT housing material
• Maximum contact resistance of 20 mΩ
• Operating temperature range of -55°C to +125°C
• 64 contacts
• Two rows
• Pitch of 2.54 mm
• a/b row loading
• Solder termination method
• Type C, female socket
• Current rating of 2 A
• Voltage rating of 1 kV
