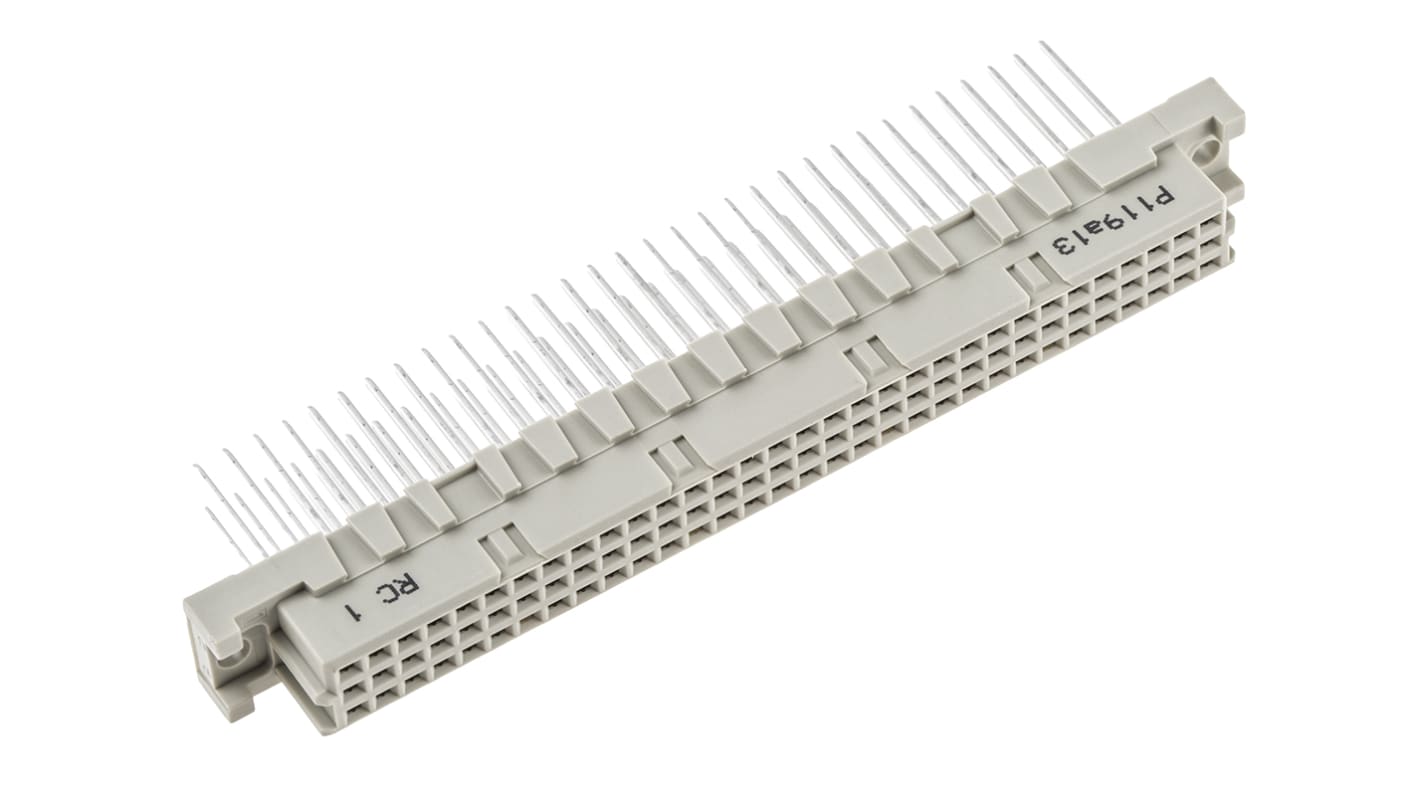

RS PRO 64 Way 2.54mm Pitch, Type C Class C1, 2 Row, Straight DIN 41612 Connector, Socket
- RS Stock No.:
- 508-3094
- Brand:
- RS PRO
6 In stock - FREE next working day delivery available
Added
Price Each
£6.07
(exc. VAT)
£7.28
(inc. VAT)
| Units | Per unit |
| 1 - 19 | £6.07 |
| 20 - 74 | £5.04 |
| 75 - 299 | £4.27 |
| 300 - 599 | £3.96 |
| 600 + | £3.65 |
- RS Stock No.:
- 508-3094
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
DIN 41612 Types B and C Two-part Edge Connectors
Class 1, 2 and 3 performance versions available
Type B (2 row) 32 and 64 way or type C (3 row) 64 and 96 way versions available
Tin plated termination supplied as follows :
Type B (2 row) 32 and 64 way or type C (3 row) 64 and 96 way versions available
Tin plated termination supplied as follows :
Plugs - 90° PCB Pins
Sockets - 13mm wire wrap or 4mm PCB Pins
Sockets - 13mm wire wrap or 4mm PCB Pins
Manufactured to a high quality standard to DIN 41612 part 5
Female contacts are of a dual cantilever design increasing reliability, reducing insertion force (not contact pressure) and extending connector life
Female contacts are of a dual cantilever design increasing reliability, reducing insertion force (not contact pressure) and extending connector life
DIN41612 - RS Range
DIN 41612 connectors for interconnection in all 19in Eurocard racking systems. Connectors are compatible with RS 19in sub-rack systems. Typical applications include telecommunications, data communications, measurement and control. Connection between plug-in cards at right angle to backplane wiring. Connection between two parallel PCB's arranged one above the other. For front or rear I/O.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 64 |
| Gender | Female |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Termination Method | Wire Wrap |
| Row Loading | a/c |
| Type | C |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Class Rating | C1 |
| Current Rating | 2A |
| Contact Material | Brass |
| Maximum Contact Resistance | 20mΩ |
| Voltage Rating | 1 kV |
| Minimum Operating Temperature | -55°C |
| Housing Material | PBT |
| Maximum Operating Temperature | +125°C |
