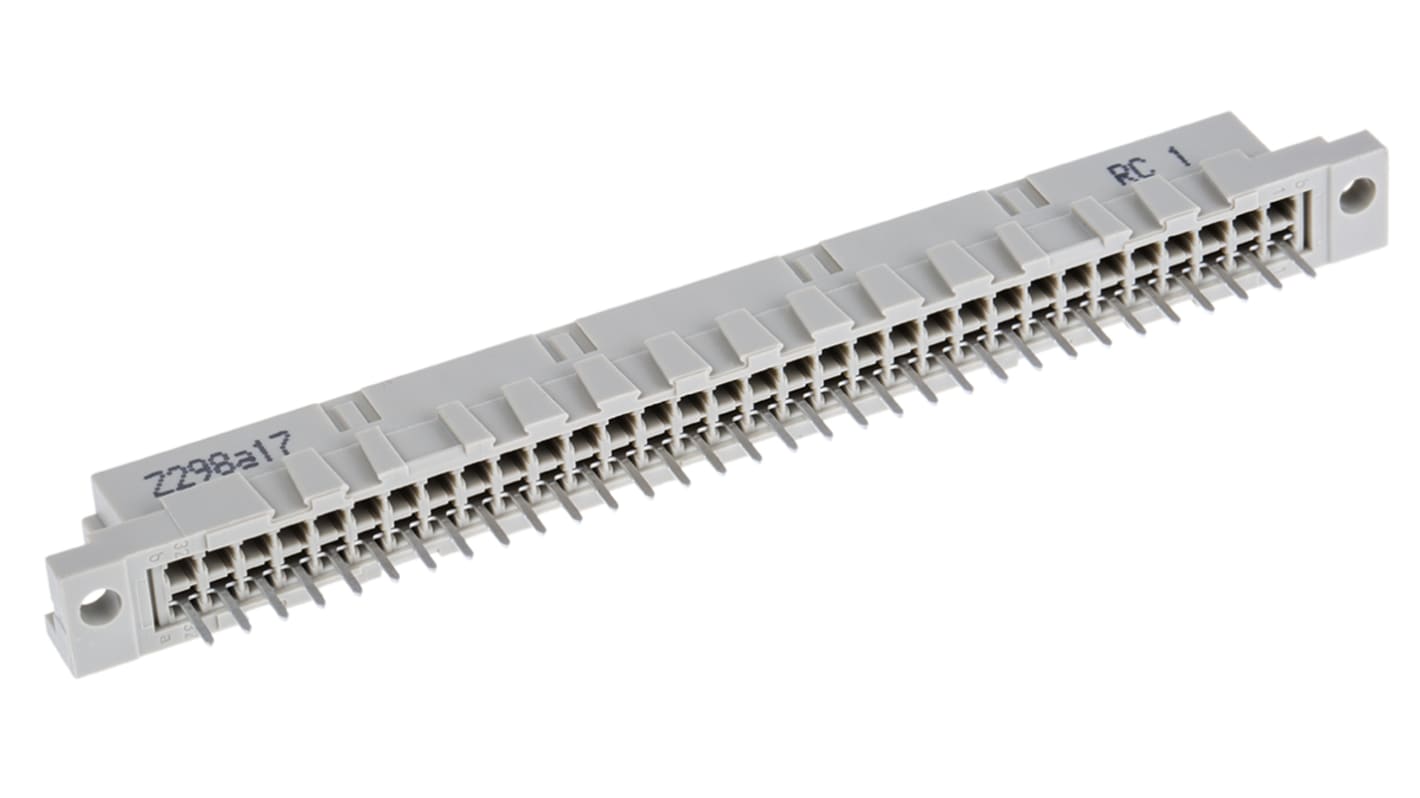

RS PRO 32 Way 2.54mm Pitch, Type B Class C1, 1 Row, Straight DIN 41612 Connector, Socket

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

DIN 41612 Types B and C Two-part Edge Connectors

Class 1, 2 and 3 performance versions available
Type B (2 row) 32 and 64 way or type C (3 row) 64 and 96 way versions available
Tin plated termination supplied as follows :

Plugs - 90° PCB Pins
Sockets - 13mm wire wrap or 4mm PCB Pins

Manufactured to a high quality standard to DIN 41612 part 5
Female contacts are of a dual cantilever design increasing reliability, reducing insertion force (not contact pressure) and extending connector life

Dimensions (mm)
  Fixing Centres Overall Length Width (Type B) Width (Type C) Depth
Plugs 88.9 x 2.5 dia 94 8.5 11.1 13.0
Sockets 90.0 x 2.8 dia 95 8.1 10.6 11.6
Contact material: Classes 1 & 2: Brass
Contact material: Class 3 Phosphor Bronze
Plating Gold over Nickel
Insulator Polyester
Flammability rating UL94V-0
Insulation resistance (MΩ) ≥ 106
Contact resistance (mΩ) ≤ 15
Temperature range (°C) -65 to +125
Test voltage between contacts (kV) rms 1
Test voltage: contact to earth (kV rms) 1.5
Current rating (A) max 2
Insertion/Extraction force (g) per way 95
Mating cycle life: Class 1 Class 2 Class 3
Mechanical 500 400 50
Industrial atmosphere (days) 10 Days 4 Days -
PCB hole Size (mm) 0.8 - 1.1
//media.rs-online.com/t_line/L475993-01.gif
//media.rs-online.com/t_line/L475993-02.gif

DIN41612 - RS Range

DIN 41612 connectors for interconnection in all 19in Eurocard racking systems. Connectors are compatible with RS 19in sub-rack systems. Typical applications include telecommunications, data communications, measurement and control. Connection between plug-in cards at right angle to backplane wiring. Connection between two parallel PCB's arranged one above the other. For front or rear I/O.

Specifications
Attribute Value
Number of Contacts 32
Gender Female
Number of Rows 1
Body Orientation Straight
Termination Method Solder
Row Loading A/b
Type B
Pitch 2.54mm
Contact Plating Gold over Nickel
Class Rating C1
Current Rating 2A
Contact Material Brass
Maximum Contact Resistance 20mΩ
Voltage Rating 1 kV
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Housing Material PBT
39 In stock for FREE next working day delivery
Price Each
£ 3.88
(exc. VAT)
£ 4.66
(inc. VAT)
Units
Per unit
1 - 19
£3.88
20 - 74
£3.22
75 - 299
£2.72
300 - 599
£2.52
600 +
£2.33
