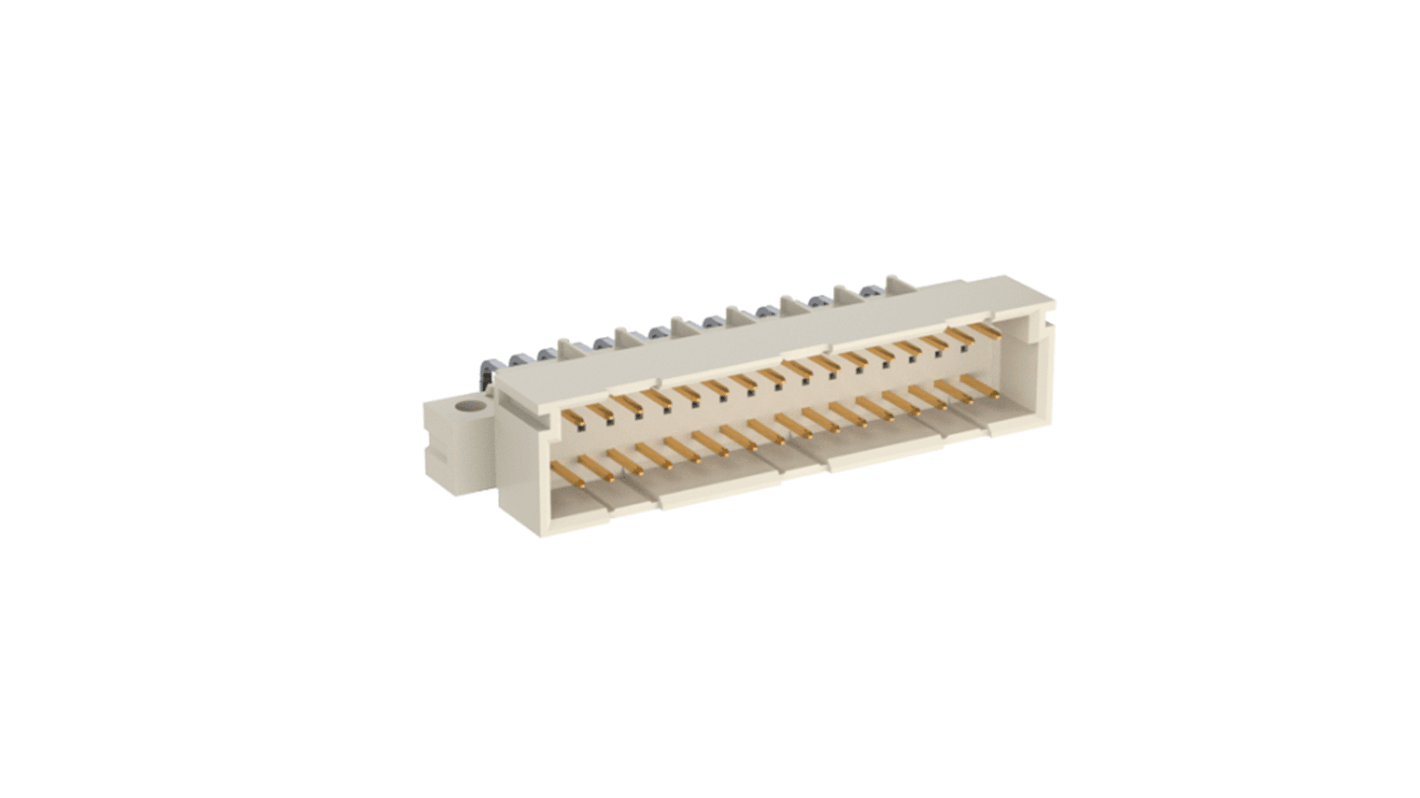

ERNI ERNIPRESS 32 Way 2.54mm Pitch, Type C/2 Class C2, 3 Row, Right Angle DIN 41612 Connector, Plug
- RS Stock No.:
- 170-6882
- Mfr. Part No.:
- 384210 / 384210-E
- Brand:
- ERNI
Subtotal (1 tray of 30 units)*
£139.80
(exc. VAT)
£167.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 120 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 30 + | £4.66 | £139.80 |
*price indicative
- RS Stock No.:
- 170-6882
- Mfr. Part No.:
- 384210 / 384210-E
- Brand:
- ERNI
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ERNI | |
| Number of Contacts | 32 | |
| Gender | Male | |
| Number of Rows | 3 | |
| Body Orientation | Right Angle | |
| Termination Method | Solder | |
| Row Loading | a/c | |
| Type | C/2 | |
| Pitch | 2.54mm | |
| Contact Plating | Gold | |
| Class Rating | C2 | |
| Current Rating | 2A | |
| Contact Material | Copper Alloy | |
| Maximum Contact Resistance | 20mΩ | |
| Series | ERNIPRESS | |
| Minimum Operating Temperature | -55°C | |
| Housing Material | PBT | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand ERNI | ||
Number of Contacts 32 | ||
Gender Male | ||
Number of Rows 3 | ||
Body Orientation Right Angle | ||
Termination Method Solder | ||
Row Loading a/c | ||
Type C/2 | ||
Pitch 2.54mm | ||
Contact Plating Gold | ||
Class Rating C2 | ||
Current Rating 2A | ||
Contact Material Copper Alloy | ||
Maximum Contact Resistance 20mΩ | ||
Series ERNIPRESS | ||
Minimum Operating Temperature -55°C | ||
Housing Material PBT | ||
Maximum Operating Temperature +125°C | ||
