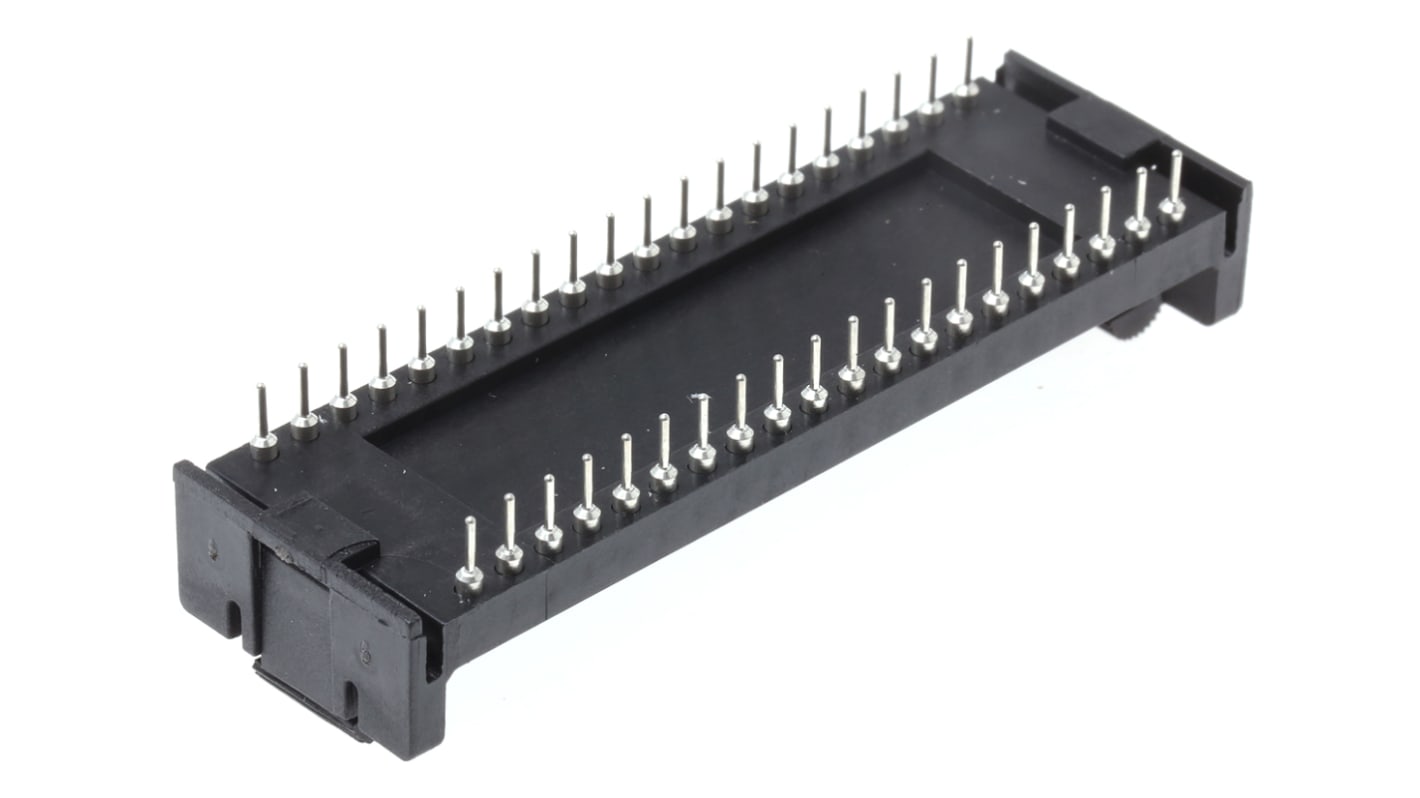

Aries Electronics 2.54mm Pitch Vertical 40 Way, Through Hole Closed Frame IC Dip Socket, 3A
- RS Stock No.:
- 404-929
- Mfr. Part No.:
- 40-C182-10
- Brand:
- Aries Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternatives
This product is not currently available. Here are our alternative recommendations.
Each (In a Pack of 5)
£3.758
(exc. VAT)
£4.51
(inc. VAT)
Each
£6.24
(exc. VAT)
£7.49
(inc. VAT)
- RS Stock No.:
- 404-929
- Mfr. Part No.:
- 40-C182-10
- Brand:
- Aries Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aries Electronics | |
| Number of Contacts | 40 | |
| Mounting Type | Through Hole | |
| Pitch | 2.54mm | |
| Row Width | 15.24mm | |
| Frame Type | Closed Frame | |
| Termination Method | Solder | |
| Contact Plating | Gold over Nickel | |
| Current Rating | 3A | |
| Orientation | Vertical | |
| Length | 58.2mm | |
| Width | 11.68mm | |
| Depth | 17.78mm | |
| Dimensions | 58.2 x 11.68 x 17.78mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
| Housing Material | Nylon | |
| Contact Material | Brass Alloy | |
Select all | ||
|---|---|---|
Brand Aries Electronics | ||
Number of Contacts 40 | ||
Mounting Type Through Hole | ||
Pitch 2.54mm | ||
Row Width 15.24mm | ||
Frame Type Closed Frame | ||
Termination Method Solder | ||
Contact Plating Gold over Nickel | ||
Current Rating 3A | ||
Orientation Vertical | ||
Length 58.2mm | ||
Width 11.68mm | ||
Depth 17.78mm | ||
Dimensions 58.2 x 11.68 x 17.78mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Housing Material Nylon | ||
Contact Material Brass Alloy | ||
- COO (Country of Origin):
- US
Low Profile DIL Eject Sockets
These sockets have a low profile, with a unique ejector/latching action
They are ideal for use where frequent removal of an IC is anticipated or where vibration may make other types unsuitable. The removal action ensures that the IC pins are undamaged
High reliability is ensured by the collet type contacts, which will accept either round or rectangular pins
The contacts are gold plated over beryllium copper and have tin-plated brass solder tails
Temperature Range: -55°C to +105°C (Tin); -55°C to +125°C (Gold)
Insulation Resistance: 10000MΩ (at 500Vdc)
They are ideal for use where frequent removal of an IC is anticipated or where vibration may make other types unsuitable. The removal action ensures that the IC pins are undamaged
High reliability is ensured by the collet type contacts, which will accept either round or rectangular pins
The contacts are gold plated over beryllium copper and have tin-plated brass solder tails
Temperature Range: -55°C to +105°C (Tin); -55°C to +125°C (Gold)
Insulation Resistance: 10000MΩ (at 500Vdc)
