Chauvin Arnoux P01654821 Digital Thermometer, 1 Input Handheld, E, J, K, N, R, S, T Type Input

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

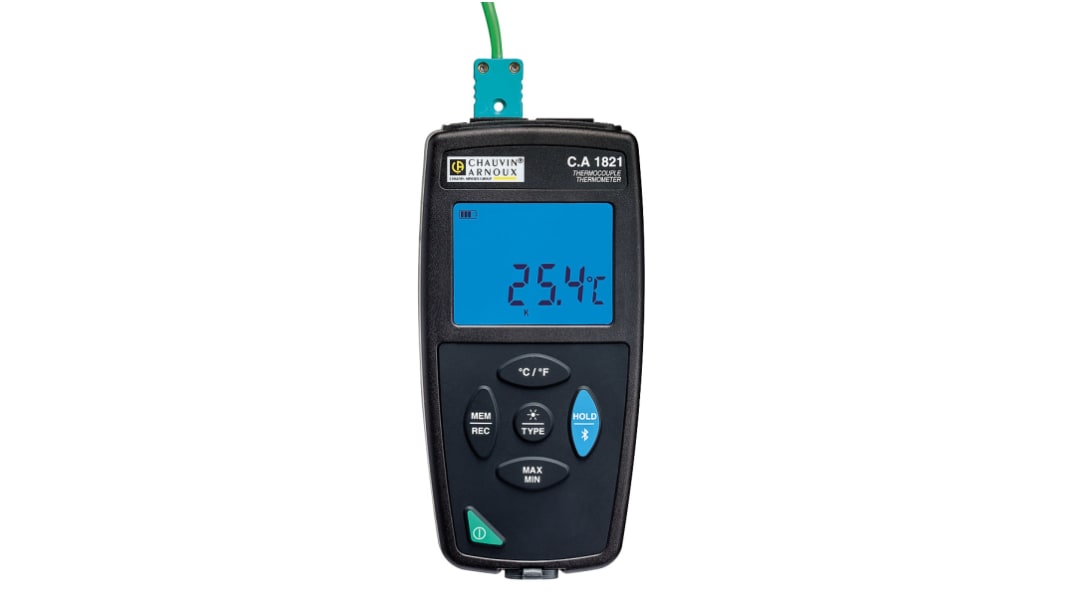

Chauvin Arnoux C.A 1821 Thermometer 1 Input KJTENRS Thermocouple

Chauvin Arnoux C.A 1821 is a single-input, data logging digital thermometer which allows you to log temperature readings from a single attached temperature probe. Compact and magnetised for fixed or portable use, the C.A 1821 is an accurate, versatile, long-lasting thermometer. Featuring a wide backlit display, it offers useful functions for work in the field, such as Min, Max, Hold and spot or programmable recording possibilities. Communicating via USB or Bluetooth, it is possible to program alarms and recording triggers on thresholds by the Data Logger Transfer software. Suitable for use with type J, K, T, N, E and R thermocouple temperature probes. The C.A 1821 is ideal for use in any temperature measurement application, provided you have the correct probe.

Feature and Benefits

• Compact and magnetised for fixed or portable use • Wide backlit display
• Recording up to 1 million points
• Communicating via USB or Bluetooth
• Alarms and recording trigger on alarms
• Battery life of up to 3 years
• IP54 casing
• Data Logger Transfer software with automatic report generation
• 1 input for K, J, T, N, E, R or S thermocouple.
• Measurement Range: - 210°C to +1767°C
• Dimensions: 150 x 72 x 32 mm
• Weight: 260 g with batteries

Supplied with

Bag, 3 x 1.5 V AA alkaline batteries, USB cable, test report and quick start-up guide

Specifications
Attribute Value
Absolute Maximum Temperature Measurement +400 (T) °C, +752 (T) °F, +950 (E) °C, +1200 (J) °C, +1300 (N) °C, +1372 (K) °C, +1742 (E) °F, +1767 (R) °C, +1767 (S) °C, +2192 (J) °F, +2372 (N) °F, +2501 (K) °F, +3212 (R) °F, +3212 (S) °F
Thermometer Type Handheld
Probe Type E, J, K, N, R, S, T
Application Multipurpose
Number of Temperature Inputs 1
Resolution 0.1 °C, 0.1 °F
Data Storage Yes
Length 150mm
Width 72mm
Height 32mm
Dimensions 150 x 72 x 32mm
Minimum/Maximum Recordings Yes
Temperature Scale Centigrade, Fahrenheit
Battery Type 1.5 V AA/LR6 Alkaline
Weight 260 (with Battery)g
Model Number p P01654821
1 in stock for FREE next working day delivery
12 available from Europe for delivery within 1 working day(s)
Price Each
£ 149.00
(exc. VAT)
£ 178.80
(inc. VAT)
Units
Per unit
1 +
£149.00
