RS PRO 1316 Wired Digital Thermometer, E, J, K, N, R, S, T Probe, 2 Input(s), +1090 (J) °C, +1300 (N) °C, +1370 (K) °C,
- RS Stock No.:
- 123-2279
- Brand:
- RS PRO
48 In stock for delivery within 3 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£232.68
(exc. VAT)
£279.22
(inc. VAT)
| Units | Per unit |
| 1 + | £232.68 |
- RS Stock No.:
- 123-2279
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

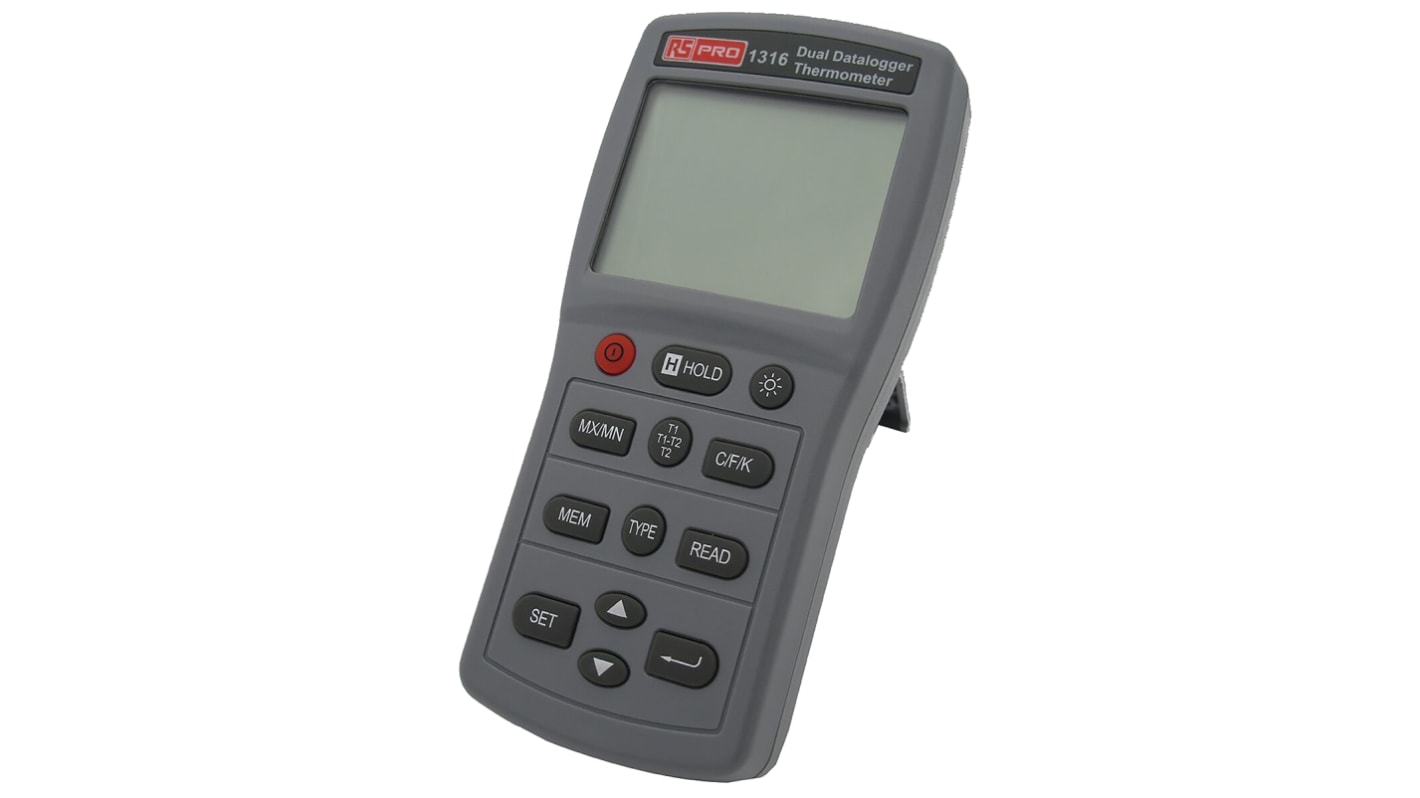

RS PRO Data Logger Digital Thermometer, 2-channel
RS PRO 1316 is a great value, high accuracy 2-channel digital thermometer for use with J, K, T, E, N, R and S-type thermocouples as a temperature sensor. A digital thermometer can measure temperature to a decimal point rather than a whole number meaning its results are more accurate. The RS PRO 1316 data logger thermometer is ideal for areas where accurate temperature readings are required in applications such as medical, pharmaceutical, food and environmental testing.
Features and Benefits:
- 77500 data logging capacity with Windows software (supplied)
- Warning alarm with High/Low setting
- MAX/MIN with time
- MAX-MIN-Average function
- Display hold
- °C /°F / °K selectable
- Backlit LCD display – for easy reading
- Dual input function T1/T2 temperature display
- USB connection port – for connecting with you computer
- Highly accurate thermometers with selectable thermocouple types K, J, E, T, R, S and N
- Auto power off after 30 minutes if no key is pressed
- Power source 6 x AAA batteries
- Battery life approximately 80 hours
- Dimensions 152 x 72 x 37 mm
- Weight 235 g (approximately)
Typical Applications
Digital thermometers are accurate and easy to use test and measurement devices. Calibration is highly recommended for professional applications which require an accurate reading. Handheld thermometers are great for portability, whereas panel-mount devices are a more permanent solution. Uses for Digital Thermometers:
- Food industry
- Hygiene testing
- Industrial maintenance
- Heating & ventilation
- Scientific research
- Medical testing
- General purpose temperature monitoring
Supplied with
AAA batteries (x6), user manual, CD software, optical USB interface cable
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum Temperature Measurement | +1090 (J) °C, +1300 (N) °C, +1370 (K) °C, +1598 (E) °F, +1767 (R) °C, +1767 (S) °C, +1994 (J) °F, +1999.9 (K) °F, +1999.9 (N) °F, +1999.9 (R) °F, +1999.9 (S) °F, +400 (T) °C, +752 (T) °F, +870 (E) °C |
| Calibrated | RSCAL |
| Model Number | 1316 |
| Probe Type | E, J, K, N, R, S, T |
| Thermometer Type | Wired |
| Best Accuracy | ± 0.05 % + 2 (S) °C, ±0.05 % + 0.5 (E) °C, ±0.05 % + 0.5 (J) °C, ±0.05 % + 0.5 (K) °C, ±0.05 % + 0.5 (N) °C, ±0.05 % + 0.5 (T) °C, ±0.05 % + 0.9 (E) °F, ±0.05 % + 0.9 (J) °F, ±0.05 % + 0.9 (K) °F, ±0.05 % + 0.9 (N) °F, ±0.05 % + 0.9 (T) °F, ±0.05 % + 2 (R) °C, ±0.05 % + 4 (R) °F, ±0.05 % + 4 (S) °F |
| Number of Temperature Inputs | 2 |
| Resolution | 0.1 (E) °F, 0.1 (E) °C, 0.1 (E) K, 0.1 (J) °C, 0.1 (J) K, 0.1 (J) °F, 0.1 (K) K, 0.1 (K) °C, 0.1 (K) °F, 0.1 (N) °F, 0.1 (N) K, 0.1 (N) °C, 0.1 (T) °F, 0.1 (T) °C, 0.1 (T) K, 1 (R) °F, 1 (R) °C, 1 (R) K, 1 (S) °F, 1 (S) °C, 1 (S) K |
| Data Storage | Yes |
| Length | 72mm |
| Width | 35mm |
| Height | 150mm |
| Minimum/Maximum Recordings | Yes |
| Temperature Scale | Centigrade, Fahrenheit, Kelvin |
| Battery Type | AAA |
| Weight | 235g |
